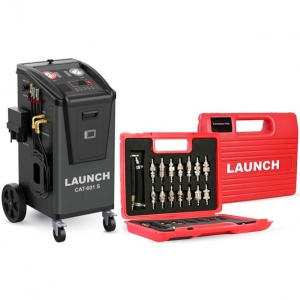

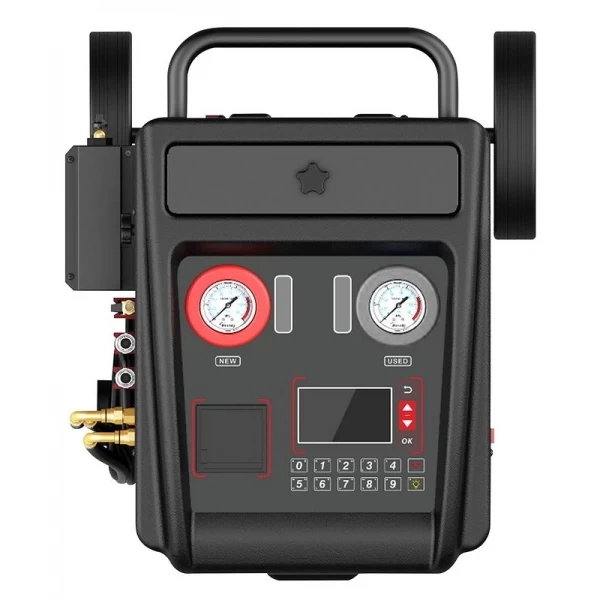

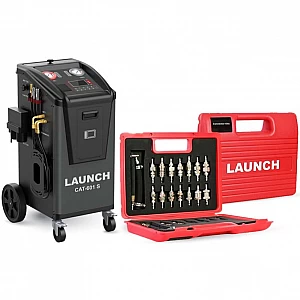

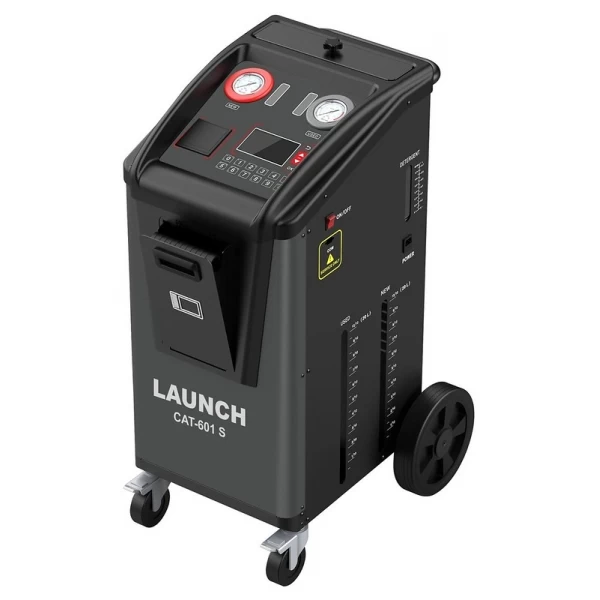

Automatic transmission maintenance equipment LAUNCH CAT-601S with accessories

Automatic transmission maintenance equipment LAUNCH CAT-601S with accessories

CAT-601S - automatic gearbox maintenance equipment from LAUNCH manufacturer. The LAUNCH CAT-601S is complete and delivered with a wide range of adapters to connect most gearbox units, including dual clutch and CVT type. It can also be connected to a CAT remote control to control key function equipment operations. Automatic transmission maintenance equipment is perfect for all types of passenger cars and vans.

Differences between LAUNCH CAT-601S and LAUNCH CAT-501S:

• New, comfortable, ergonomic, aesthetic design
• ATF oil sampling function
• Remote control

Features and Benefits:

• Sampling of old oil
• Adding detergent
• The fluid flow is detected automatically
• Cleaning cycle with detergent
• Fluid level adjustment
• Complete oil change
• Oil change with high precision
• Automatic messages
• Warnings for changing the filter
• System settings
• ATF database
• Oil temperature display
• Wi-Fi interface

Technical data:

• Power supply: 230 V / 50 - 60 Hz
• Max. power: 150 W
• Relative error of liquid exchange: ± 100 ml
• Pump efficiency: 2 l/min
• Liquid tank capacity: 20 l
• Detergent tank volume: 1 l
• Temperature sensitivity: ± 1 °C
• Filter permeability: 5 μm
• Noise level: 70 dB (A)
• Ambient temperature: -10 – 50 °C
• Relative humidity: <85%
• Dimensions: 590 x 700 x 1037 mm
• Screen: 5"

Complete set:

• Maintenance device for automatic gearboxes CAT-601S
• ATF online database
• CAT remote control activation card
• ATF connector set I - AISIN, AUDI, CITROEN, DODGE JOURNEY, FIAT, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW
• ATF connector set II - ALFA ROMEO, AUDI, FIAT, FORD, HUMMER, HYUNDAI, JAGUAR, LAND ROVER, MERCEDES, NISSAN, OPEL, SAAB, TOYOTA, VW, VOLVO
• ATF connector set III - AISIN, AUDI, CHRYSLER, FORD, GM, HONDA, LEXUS, MERCEDES-BENZ, MITSUBISHI, NISSAN, PORSCHE, TOYOTA, VW
