Brake pressure gauge for brake system testing Autool PT660

Brake Pressure Gauge for Brake System Testing Autool PT660

Country of origin: China, warranty period – 24 months

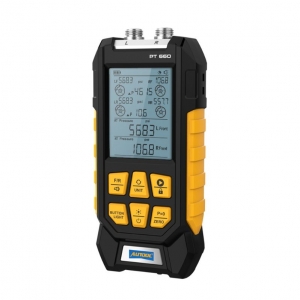

AUTOOL PT660 is a professional brake pressure gauge with dual-channel measurement functionality, designed to accurately measure front and rear brake system pressure simultaneously. The device uses high-precision sensors with 1% FS accuracy and 0.1 bar resolution, allowing easy real-time comparison of pressure fluctuations. The 3-inch backlit display ensures excellent visibility in all working conditions. Suitable for standard, high-performance, and racing brake systems.

Functions:

• Dual-channel measurement – measures front and rear brake pressure simultaneously
• Wide applicability – compatible with all types of brake systems, including racing
• High-precision sensor – accuracy up to ±1% FS, resolution of 0.1 bar
• Digital display – 3-inch backlit screen for clear visibility
• One-touch operation – quick data locking and zeroing
• Automatic atmospheric pressure calibration
• Clear data visualization – real-time system condition display

Technical specifications:

• Operating voltage: 4 x 1.5V AAA batteries
• Measurement range: 0–210 bar, 0–3045 psi, 0–214 kg/cm²
• Accuracy: ±1% FS
• Measurement units: psi, bar, kg/cm²
• Resolution: 0.1 psi, 0.1 bar, 0.1 kg/cm²
• Operating temperature: -10 °C ~ 60 °C
• Dimensions: 163 x 73 x 37 mm
• Display: 3-inch LCD with backlight

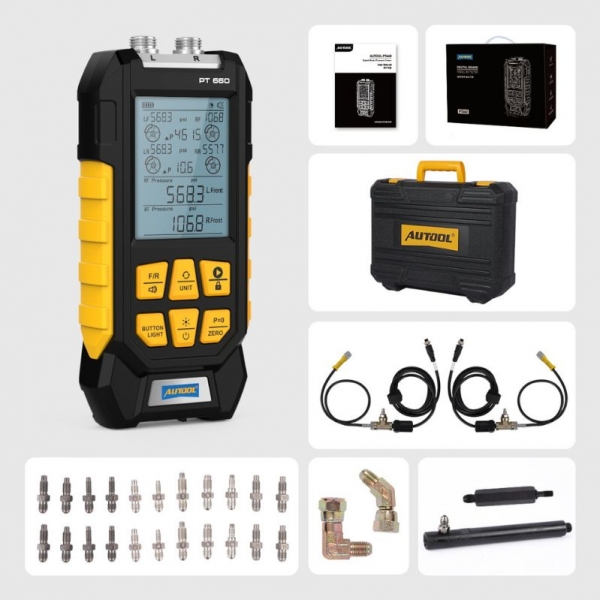

Package contents:

• AUTOOL PT660 brake pressure gauge
• 2 pressure hoses with connectors
• Set of various adapter types
• Angle adapters
• Calibration cylinder
• User manual
• Plastic carrying case
• Cardboard box
