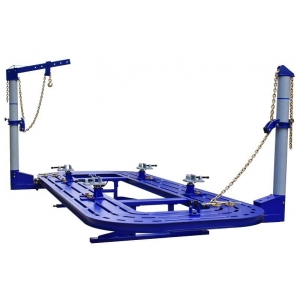

Car body straightening stand MX-8G

Car body straightening stand MX-8G

Advantages:

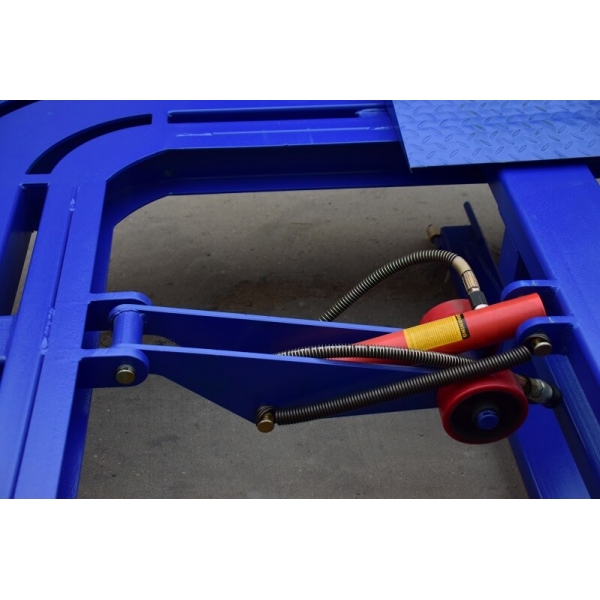

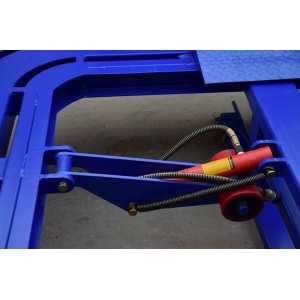

• The hydraulic system used in the stand is powerful, reliable and durable
• The body of the frame machine, made of high-quality metal plates, was machined using a CNC plasma cutting machine, welding with C2. Finally, they are prepared and machined using a shot blasting method to avoid various manufacturing imperfections, and after painting the stand with a powder method, only the best features of the machine are highlighted. It provides an opportunity for intensive work, is protected from rusting and has an eye for what it wants
• Two hydraulic pulling poles, can flexibly work at various angles, from 0° to 360° angle. Because they are anchored on a special platform that allows you to rotate the towers at a comfortable angle, and they can be pushed by special rails

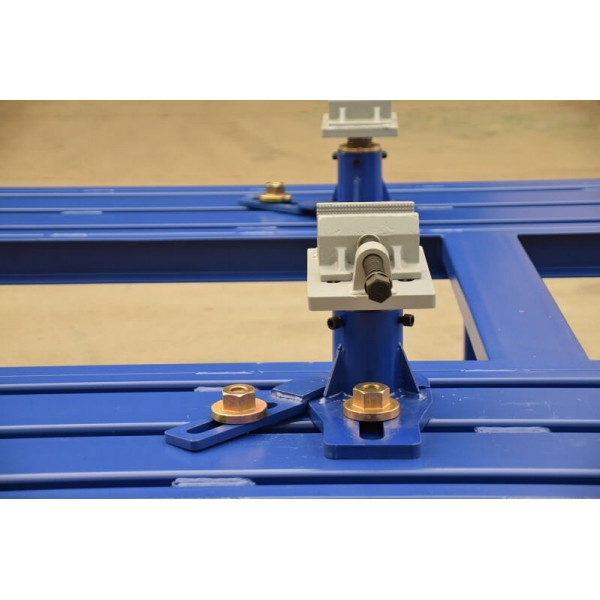

• The unique movement design of the main mounting clamps provides convenience to a variety of car bodies and designs

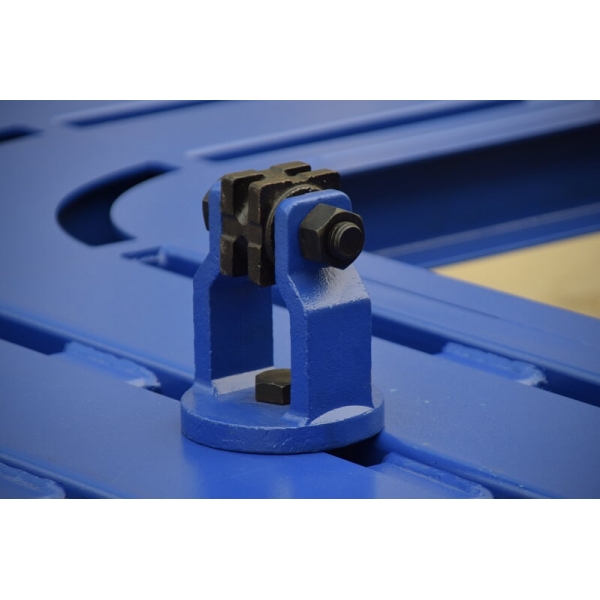

• The clamps of the main fasteners have a unique design, they are fastened with only two screws. It provides a convenient and quick fastening of cars, which greatly improves work efficiency
• Three-dimensional measuring bridge PTP. A convenient, easy-to-understand and advanced measuring device that can be ordered additionally

Technical data:

• Available platform lengths: 5200 / 5600 / 5800 mm
• Available platform widths: 2100 / 2200 mm
• Platform height: 560 mm
• Recommended compressed air pressure: 0.8 MPa / 8 bar
• Hydraulic power: 70 MPa
• Developed tensile capacity: 100 kN / 10 tons
• Number of mounting towers: 2 towers
• Rotatable mounting podiums: 360
• Maximum bench load: 3500 kg
• The color of the machine can be selected
• Operation type: hydraulic foot pump or electro-hydraulic pump additionally
• Machine weight: 2200 kg

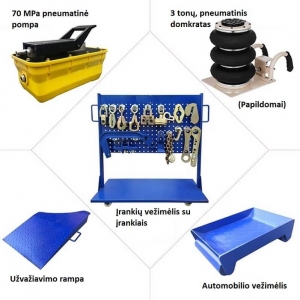

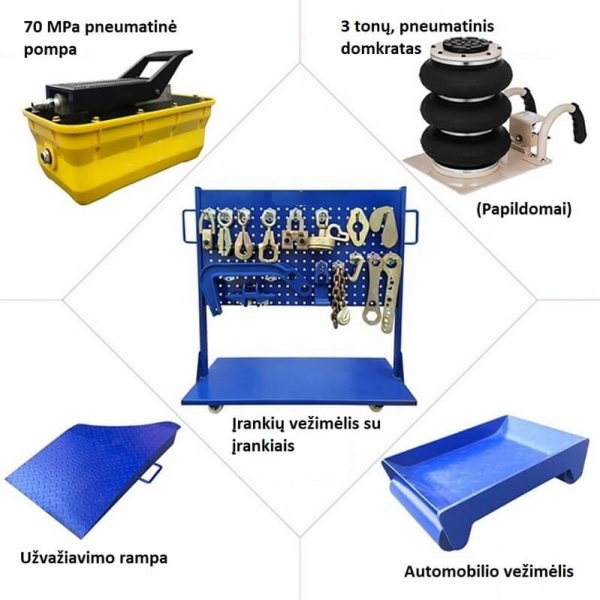

The set includes:

• Frame structure: 1 pc.
• Mounting towers: 2 pcs.
• Pneumo-hydraulic pumps: 2 pcs.
• Long chain with cable: 2 pcs.
• Trolley with necessary tools: 1 pc. (please check the tools offered)
• Main fastening clamps: 4 pcs.

Additional accessories offered:

• Additional mounting tower
• Pneumatic/additional lift
• 2D or 3D measuring system
• Pneumatic lift
• Contact welding device
• Main mounting points for BMW cars, 4 pcs. set
• Main attachment points for Mercedes-Benz cars, 4 pcs. set
