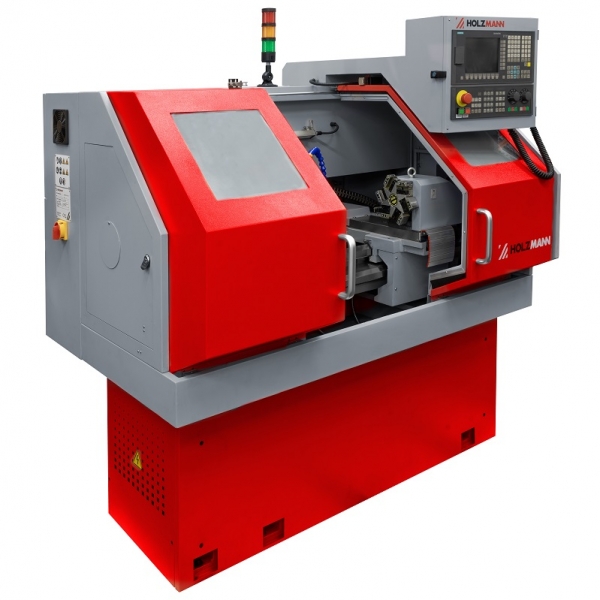

CNC Metal Turning Lathe HOLZMANN CD3275ECO with Siemens 808D Advanced Control

CNC Metal Turning Lathe HOLZMANN CD3275ECO with Siemens 808D Advanced Control

Country of origin: Austria, warranty period - 24 months

The HOLZMANN CD3275ECO CNC turning lathe is professional equipment designed for precise metal machining. Featuring the Siemens 808D Advanced control system, a 6-position tool holder, and a manual tailstock, this lathe is ideal for metalworking shops, manufacturing companies, and educational institution workshops.

Features:

• Reliable Siemens 808D Advanced control system ensuring precise machining.
• Powerful 3.7 kW motor delivering high performance.
• 6-position tool holder for efficient workflow.
• Precision-bearing main spindle ensuring accuracy.
• 3-jaw chuck Ø160 mm for secure material holding.
• Central lubrication and cooling system simplifying maintenance.

Technical Specifications:

• Voltage: 400 V / 50 Hz
• Distance between centers: 750 mm
• Center height: 160 mm
• Max. turning diameter over bed: 320 mm
• Max. turning diameter over cross slide: 150 mm
• Spindle speed: 150–2500 min⁻¹
• Spindle bore: 56 mm
• Spindle taper: MK5 / MT5
• Tailstock taper: MK3 / MT3
• Carriage travel: 600 mm
• Cross slide travel: 170 mm
• Tailstock sleeve travel: 120 mm
• Max. tool holder cross-section: 16 x 16 mm
• Dimensions: 2100 x 1120 x 1750 mm
• Weight: Net – 1050 kg, Gross – 1200 kg
• Noise level: 85 dB(A)
