CNC milling machine Holzmann CTF45P_230V

CNC Milling Machine Holzmann CTF45P_230V

Country of origin: Austria, warranty period - 24 months

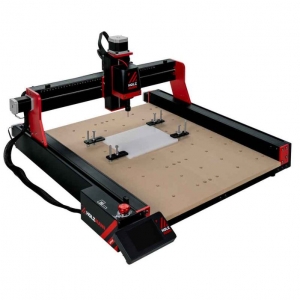

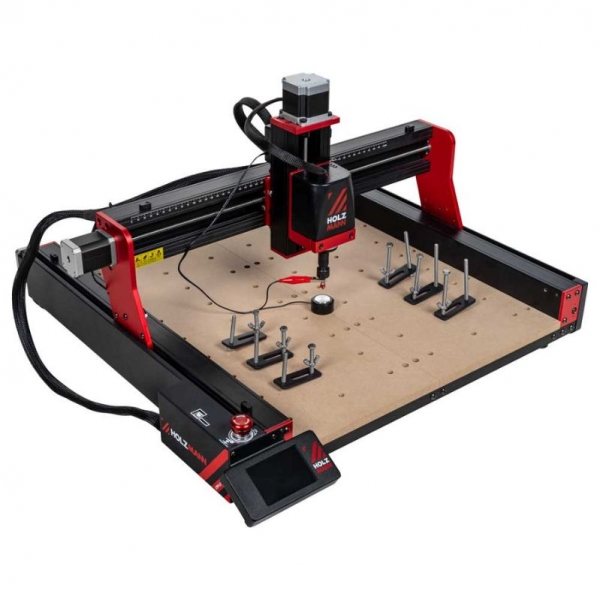

The HOLZMANN CTF45P is a compact, multifunctional CNC milling machine, ideal for processing wood, plastic, or aluminum. Its convenient modular design allows for quick and easy assembly, while additional accessories expand its usage possibilities. It is the perfect choice for workshops or individual users seeking precision and convenience in a compact format.

Features:

• Modular design for quick and easy assembly
• Working area: 460 x 460 x 80 mm
• Max. milling diameter – 10 mm
• Max. continuous operation time – 6 hours
• Max. feed speed – 800 mm/min
• XY-axis positioning accuracy – 0.05 mm
• Compatible with CAM software: Candle, Carveco, Artcam, Easel
• USB interface, WiFi connection, SD card reader (includes 4 GB TF card)
• 80 W motor, speed up to 8000 rpm

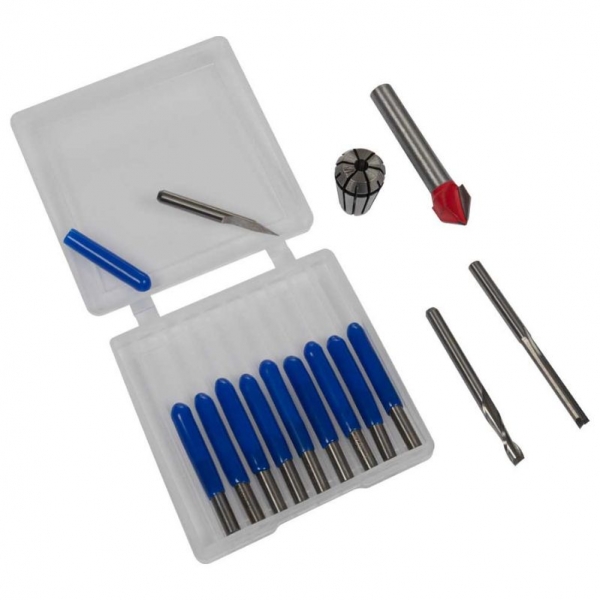

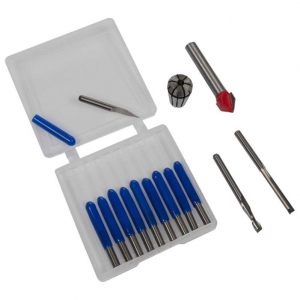

• Included: V-bit milling cutter, 2 milling cutters, 10 engraving cutters, 2 collets (ER11-6 mm, ER11-1/4"), 6 workpiece clamps

Technical specifications:

• Motor power S1: 80 W
• Voltage: 100–240 V / 50–60 Hz
• Overall dimensions: 742 x 689 x 413 mm
• Sound power level: 105 dB(A)
• Sound pressure level: 85 dB(A)
• Net weight: 15.80 kg
• Gross weight: 20.60 kg
• Packaging width: 740 mm
• Packaging length: 760 mm
• Packaging height: 213 mm
