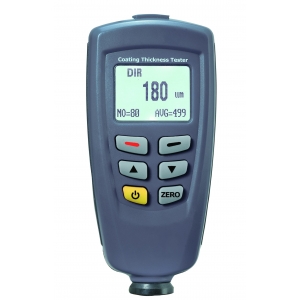

Coating thickness gauge with dual technology

Coating Thickness Gauge with Dual Technology

Country of origin: Belgium, warranty period – 24 months

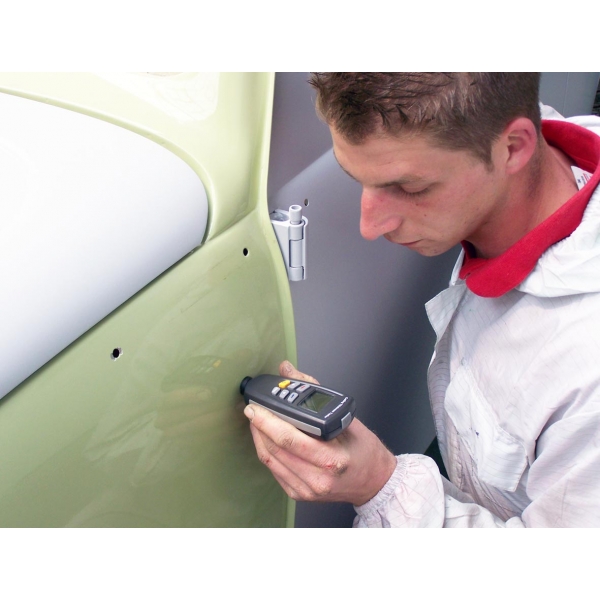

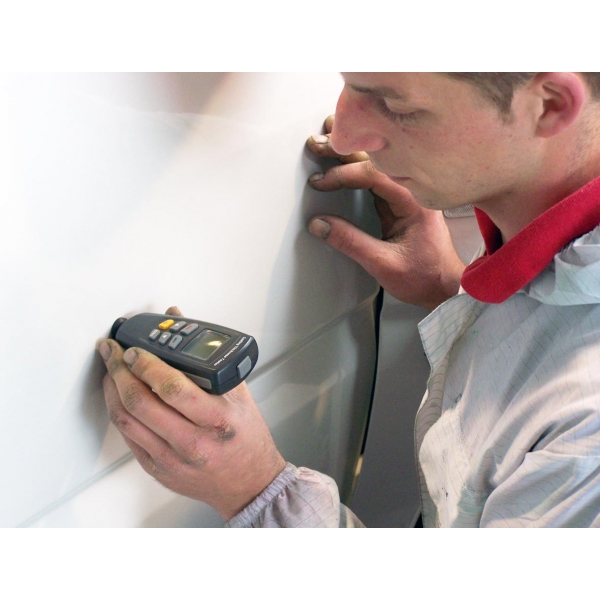

This professional coating thickness gauge features automatic selection between two measurement technologies (magnetic induction and eddy current), ensuring accurate measurement of paint, zinc, or other coatings on various surfaces. The device is ideally suited for measuring both magnetic and non-magnetic coatings on steel, non-ferrous metals, or insulating substrates. It is perfect for paint layer quality control in metal processing, industrial, and automotive applications.

Features:

• Automatic selection of measurement method: magnetic induction or eddy current
• Two measuring modes: CONTINUE (continuous) and SINGLE (single-point)
• Two working modes: DIRECT (direct) and GROUP (group)
• Statistical data display: AVG, MAX, MIN, NO., S.DEV
• One-point, two-point, and basic calibration – simple and quick
• Memory for 400 readings (80 DIRECT and 320 GROUP readings)
• Ability to delete individual or group readings
• High and low limit alarms for all working modes
• Low battery and error indicators
• USB interface for PC software connection (Windows 98/2000/XP/Vista)

Technical Specifications:

• Sensor type: F / N (magnetic induction and eddy current)
• Measuring range: 0–1250 µm
• Measurement accuracy: ±(3% + 1) µm or ±(3% + 1.5) µm
• Low range precision: 0.1 µm
• Minimum curvature radius of measured surface: 1.5 mm
• Minimum diameter of measured area: 7 mm

Included in the kit:

• 2 × AAA batteries
• USB cable
• Software CD
• Calibration iron
• Calibration aluminum
• Precision standard
• Carrying case
