Description

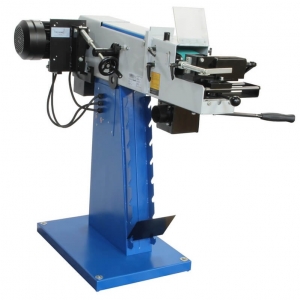

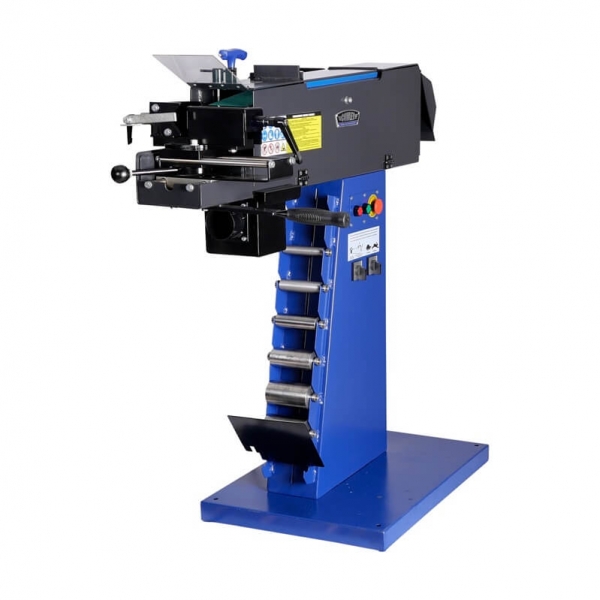

Combined Grinding Machine 3in1
Country of origin: Netherlands, warranty period – 24 months
The Cowley Combined Grinding Machine 3in1 is a multifunctional device designed for grinding pipe ends and profiles, surface grinding, and round grinding of workpieces. Grinding operations are performed at different parts of the machine: pipe grinding at the front, surface grinding at the top, and round grinding at the rear. The grinding angle is adjustable between 30° and 90° and includes an integrated depth stop. The powerful electric motor allows operation at two different speeds. This machine is ideal for grinding steel, stainless steel, and non-ferrous metals. Sanding belts and rollers can be replaced quickly and easily. It can also be connected to a dust extraction system.
Features:
- Adjustable grinding angle from 30° to 90°
- Separate emergency stop button and separate start/stop button
- Includes 7 grinding rollers:
- Ø18 mm – ¾''
- Ø23 mm – 1''
- Ø30 mm – 1¼''
- Ø38 mm – 1½''
- Ø48 mm – 2''
- Ø63 mm – 2½''
- Ø74 mm – 3''
- Two working speeds
- Can be connected to a dust extraction system
- Easy replacement of sanding belts and grinding rollers
- Supplied with 1 sanding belt 100 × 2000 mm (grit K36)
Technical Specifications:
- Power supply: 400V / 50Hz
- Motor power: 2.5 / 3.3 kW
- Motor speed: 1400 / 2800 rpm
- Belt speed: 23.5 / 47 m/s
- Sandable diameter: 20–76 mm
- Adjustable grinding angle: 30°–90°
- Belt dimensions: 100 × 2000 mm
Product Dimensions:
- Length: 1340 mm
- Width: 700 mm
- Height: 1210 mm
- Weight: 159.0 kg
Packaging Dimensions:
- Length: 1330 mm
- Width: 730 mm
- Height: 640 mm
- Weight: 197.0 kg
