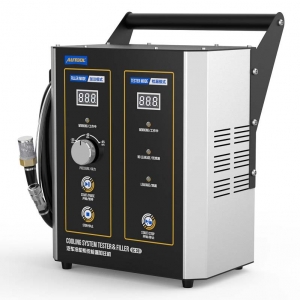

Cooling system inspection and filling device, Autool SC301

Cooling system inspection and filling device, Autool SC301

Autool SC301 is an innovative tool designed for checking automotive cooling systems. It can combine pressure leak testing and coolant filling capabilities. It works with a double vacuum mechanism that can extract or retain the pressure created. In this way, it is possible to identify various leaks in the cooling system or efficiently fill the system with coolant. The device is characterized by high automation, convenient one-person operation, time and labor saving advantages. In this way, Autool SC301 helps to understand the clear state of the cooling system and provide appropriate maintenance solutions.

Features:

• Two working modes
• Three pressure settings
• Wide applicability
• High level of automation
• Indicator design
• Long warranty period

Operating modes:

• Basic operations
• Test mode
• Filling mode
• Extraction mode

Technical parameters:

• Supply voltage: 12 V / DC
• Pressure range: -1 ~ 2 bar
• Filling hose length: 2000 mm
• Air outlet hose length: 1000 mm
• Air inlet hose length: 500 mm
• Operating temperature: -10 °C ~ 60 °C
• Weight: 7 kg

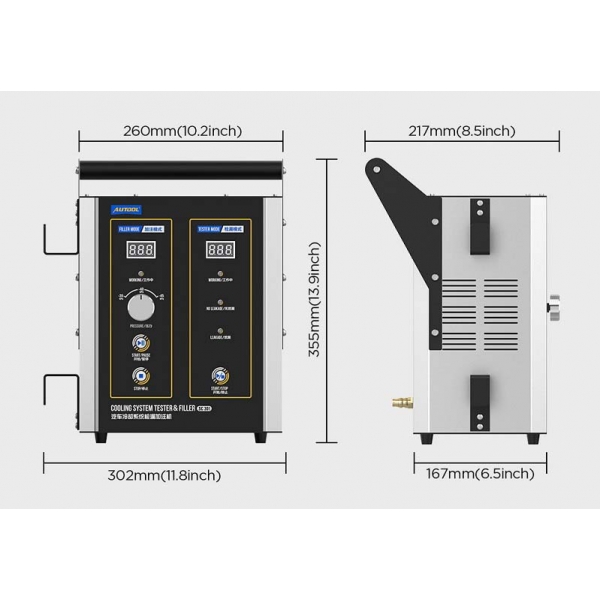

• Dimensions: 302 x 217 x 335 mm

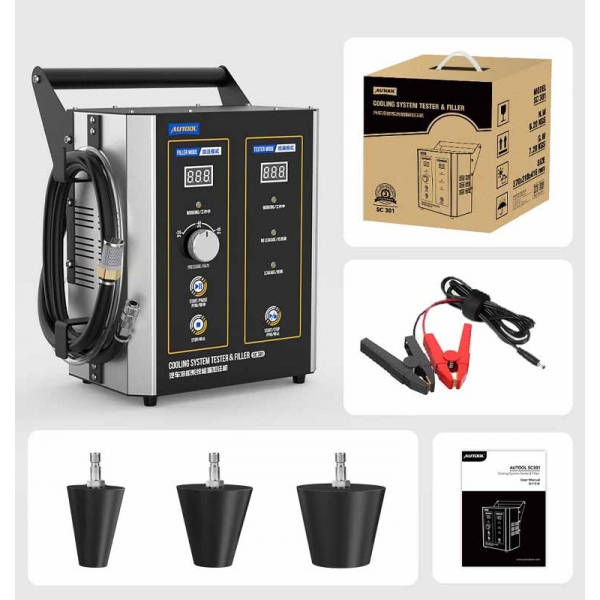

Complete set:

• Autool SC301 device
• Power cords
• User manual
• Bit set x 3 pcs.
