Diagnostic device VAG CAN PROFESSIONAL + K Line

Diagnostic Device VAG CAN PROFESSIONAL + K Line

Country of origin: Poland, warranty period: 24 months

VAG CAN PROFESSIONAL + K Line is a manufacturer-level professional diagnostic tool designed for diagnostics, coding, programming, and re-flashing of control modules in Volkswagen Group (VAG) vehicles. The device supports a very wide range of vehicle models – from the oldest ones using the K-Line protocol to the latest models based on CAN and UDS communication. The included VCP + K Line Interface provides access to functions not available with standard diagnostic tools. It is suitable for both professional repair shops and advanced users.

Advantages of the VCP Diagnostic Tool:

• Original equipment
• VCP software and CAN BUS + UDS + K-Line interface
• Supported languages: English, German, Czech, Dutch, Italian, Russian, Polish
• 12-month free registration
• Extended version: VAG CAN PROFESSIONAL + K Line interface. In addition to basic functions, it also supports older vehicles using single or dual K-line protocols (KWP1281, TP/KWP2000) via CAN BUS

VCP Kit Includes:

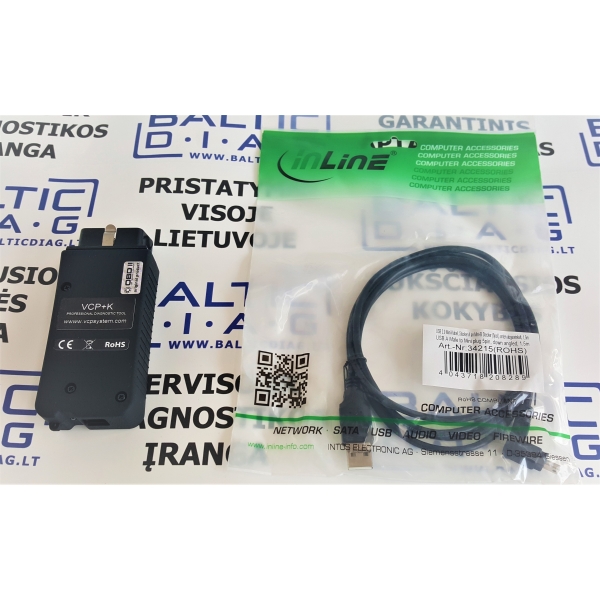

• 1 × VAG CAN Pro diagnostic device + K Line Interface
• USB cable (2 m)
• 12 months of free updates
• Optional Features (can be ordered separately):
• EDC16 FLASHING – additional EDC16 ECU flashing function for VCP and VCPK
• ESP Coding MK60EC1 – additional ESP coding function for VCP and VCPK
• ZDC VIM files – access to all available ZDC VIM files
• NEW INTERFACE – new VAG CAN PRO INTERFACE v2.0 (includes code card)
• Upgrade to VCPK – if you already own a VCP interface (either older or v2.0)
• Annual updates – yearly software updates for VAG CAN PRO and PRO + K

Supported Vehicles:

Audi:

• A2 2009–
• A3 8P 2003–
• A4 8E B7 (engine, gearbox, airbag, ABS, park assist) 2005–
• A4 8K B8 (UDS + TP2.0) 2008–
• A5 8K (UDS) 2007–
• A6 4F 2004–
• A8 4E 2003–
• Q3 (UDS) 2010–
• Q5 (UDS) 2008–
• Q7 (TP2.0 + UDS) 2006–
• S5 8K
• (R)S6 4F
• R8 (UDS)
• TT 8J 2007–

Mercedes:

• Sprinter (VW Crafter) – (engine, immobilizer)

Seat:

• Altea
• Leon 1P 2005–
• Toledo 5P 2004–
• Exeo 2008–

Škoda:

• Octavia 1Z 2004–
• Superb II B6 2008–
• Fabia 5J 2007–
• Yeti 2009–

Volkswagen:

• Crafter (engine, immobilizer)
• Caddy 2K 2005–
• Eos
• Golf V 1K
• Golf VI 5K
• Golf Plus
• Jetta II 1K
• Transporter / Multivan (only CAN drive after replacing CAN Gateway for data copying)
• Multivan/Transporter GP 7E (UDS) 2009–
• Passat B6 3C 2005–
• Passat CC
• Phaeton GP 2007–
• Polo 6R 2009–
• Scirocco III
• Touran
• Tiguan
• Touareg GP 2007–

K-line (KWP1281, TP/KWP2000) Supported Models:

• VW Golf III, IV
• VW Passat 3B
• VW Bora
• VW Transporter T5
• VW New Beetle
• VW Polo II, III, IV
• Škoda Octavia I
• Škoda Fabia I & II
• Seat Leon I
• Seat Toledo II
• Seat Alhambra
• Seat Ibiza II, III, IV
• Audi A2, A3, A4, A6 – K-Line

Additional Equipment and Paid Options:

ESP system coding – €110 incl. VAT

• Additional extended coding option for ESP ..xx379AX ECU

Multimedia coding (TV during driving) – €104 incl. VAT

• Supported models: VW Golf 7 Discover Pro with DAB, Audi A6 4G Facelift MMI PLUS, Audi A7 4G Facelift MMI PLUS, VW Passat B8 Discover Pro, VW Polo 6R Facelift Discover Pro, MIB2 gen.3, MIB 2+
• Note: MHI 2017 is not supported

ECU memory read/write via OBDII – €60 incl. VAT

• Additional function for VCPL system. Supported ECUs: EDC16U1, EDC16U3x, EDC16CPx

Radio frequency conversion (USA to EU) – €180 incl. VAT

• No disassembly of the radio required, the process is done via OBD II

12-month access to software updates and online support – €49 incl. VAT
