Diesel Generator Arken ARK-B0075 N5, 52.8 kW

Diesel Generator Arken ARK-B0075 N5, 52.8 kW

Country of Origin: Turkey, warranty period – 24 months

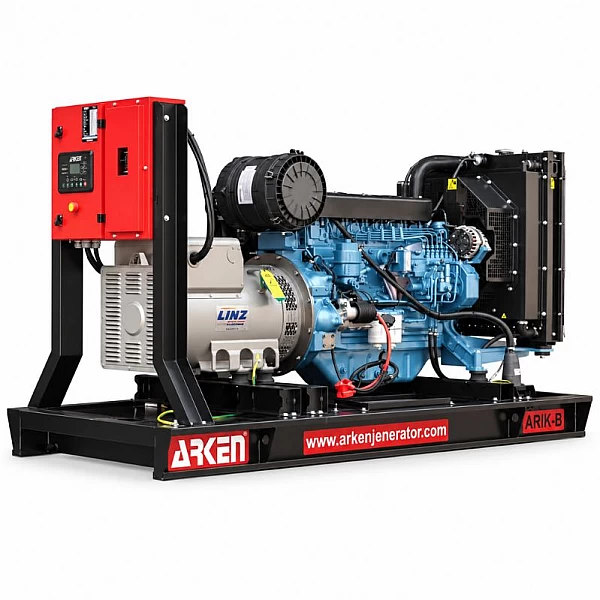

OPEN-TYPE GENERATOR PRICE – 10,240.00 EUR

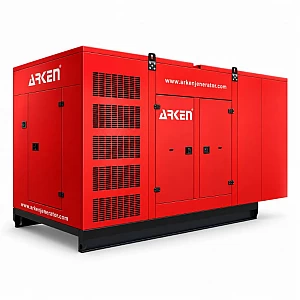

THE PRICE LISTED IS FOR A CLOSED-TYPE GENERATOR!

Arken – a company founded in 2012 with the slogan, “Life Goes On.” Arken generators can be custom-manufactured to meet individual needs for diesel generators with power ratings ranging from 2 kVA to 2,750 kVA. These generators are manufactured in a 14,000 m² facility in Arnavutköy and offer the best generator solutions tailored to customer or project requirements. In addition to its central manufacturing plant, “Arken” maintains an extensive global network through which it distributes its manufactured generators and other energy solutions.

“Baudouin” is one of the brands that has gained a reputation as a reliable manufacturer of marine engines. It is a sought-after brand due to its well-earned durability, high performance, and operational reliability. The “Baudouin” brand, which has become one of the world’s leading brands, was developed to meet maritime standards for optimal performance. For this reason, it is known as one of the top brands on the list, as it complies with environmental protection standards in the maritime sector. These engines, which are manufactured in accordance with marine standards, are designed with safety as a top priority, ensuring the highest quality and a purpose-built design. A “Baudouin” engine is the safest choice, suitable for a wide range of applications due to its operating principle. All components involved in engine production are manufactured using state-of-the-art technology tools.

Technical specifications:

• Instantaneous electric power output (Stand-by): 73 kVA / 58.4 kW
• Continuous power output (Prime power): 66 kVA / 52.8 kW
• Output voltage: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine specifications:

• Manufacturer: Baudouin
• Engine power: 60 kW
• Engine model: 4M10G70/5
• Number of cylinders: 4 cylinders
• Number of valves: 8 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1,500 rpm
• Displacement: 4,087 cm³
• Air intake system: forced, turbocharged
• Piston bore x stroke: 105 x 118 mm
• Compression ratio: 17.5 : 1
• Cooling: water-cooled
• Coolant system capacity: 17.9 L
• Alternator control: electronic
• Electrical control system: 12 V DC
• Battery charging current: 80 A
• Oil capacity: 13 l
• Cooling air flow: 146 m³/min
• Electric starter power: 3.8 kW
• Battery: 1 x 75 Ah Fuel consumption with (110%) load: 16.67 l/h
• Fuel consumption at (110%) load: 16.67 l/h
• Fuel consumption at (100%) load: 15 l/hr
• Fuel consumption at 75% load: 11.1 L/h
• Fuel consumption at (50%) load: 7.7 L/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator Model: ARK 224F
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Start-up: automatic
• Voltage regulation: Electronic AVR
• Voltage regulation range: +-1%
• THD: < 5%

Control panel:

• Standards: ISO 8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency shut-off switch
• Battery charger, 5 A
• Generator controller
• Control relays
• Jumper (under the panel)

General Specifications:

• Open-frame generator length: 2150 mm
• Open-frame generator width: 1100 mm
• Height of the open-frame generator: 1,150 mm
• Open-frame generator weight: 1,084 kg
• Open-type generator fuel tank capacity: 174 l
• Open-type generator continuous operating time: 11.66 hours
• Enclosed generator length: 2910 mm
• Enclosed generator width: 1,160 mm
• Enclosed generator height: 1,720 mm
• Enclosed generator weight: 1,445 kg
• Enclosed generator fuel tank capacity: 174 L
• Enclosed generator continuous runtime: 11.66 hours
• Close Generator noise level: 71.8 dB(A) @ 7 m

Optional components:

• 3P electrical circuit breaker: 100.00 EUR + VAT
• 3P automatic transfer switch (ATS) module: 250.00 EUR + VAT
