Diesel Generator Arken ARK-B0110 N5, 80 kW

Diesel Generator Arken ARK-B0110 N5, 80 kW

Country of origin: Turkey, warranty period – 24 months

OPEN-TYPE GENERATOR PRICE – 12,030.00 EUR

THE PRICE LISTED IS FOR A CLOSED-TYPE GENERATOR!

Arken – a company founded in 2012 with the motto, “Life Goes On.” Arken generators can be custom-manufactured to meet individual needs for diesel generators with power ratings ranging from 2 kVA to 2,750 kVA based on individual needs. These generators are manufactured in a 14,000 m² facility in Arnavutköy and can offer the best generator solutions tailored to customer or project requirements. In addition to its central manufacturing facility, “Arken” maintains an extensive global network through which it distributes its manufactured generators and other energy solutions.

“Baudouin” is one of the brands that has become renowned as a reliable manufacturer of marine engines. It is a sought-after brand due to its well-earned durability, high performance, and operating principles. The Baudouin brand, which has become one of the world’s leading brands, was designed to meet maritime standards and provide optimal performance. For this reason, it is known as one of the top brands on the list, as it meets environmental protection standards in the marine sector. These engines, which are manufactured in accordance with marine standards, are designed with safety as a top priority, ensuring the highest quality and functional design. A “Baudouin” engine is the safest choice, suitable for a wide variety of applications. All components related to engine manufacturing are produced using state-of-the-art tools.

Technical specifications:

• Instantaneous electric power output (Stand-by): 110 kVA / 88 kW
• Continuous power output (Prime power): 100 kVA / 80 kW
• Output voltage: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine specifications:

• Manufacturer: Baudouin
• Engine power: 90 kW
• Engine model: 4M10G110/5
• Number of cylinders: 4 cylinders
• Number of valves: 8 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1,500 rpm
• Displacement: 4,087 cm³
• Air intake system: forced, turbocharged
• Piston diameter x stroke: 105 x 118 mm
• Compression ratio: 17.5 : 1
• Cooling: water-cooled
• Coolant system capacity: 23.6 L
• Alternator control: electronic
• Electrical control system: 12 V DC
• Battery charging current: 80 A
• Oil capacity: 13 l
• Cooled air flow rate: 190 m³/min
• Electric starter power: 3.8 kW
• Battery: 1 x 75 Ah
• Fuel consumption at (110%) load: 24.4 l/h
• Fuel consumption at (100%) load: 21.3 l/hr
• Fuel consumption at 75% load: 16 L/hour
• Fuel consumption at 50% load: 11 l/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator Model: ARK 274C
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Start-up: automatic
• Voltage regulation: Electronic AVR
• Voltage regulation range: +-1%
• THD: < 5%

Control panel:

• Standards: ISO 8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency shut-off switch
• Battery charger, 5 A
• Generator controller
• Control relays
• Jumper (under the panel)

General Specifications:

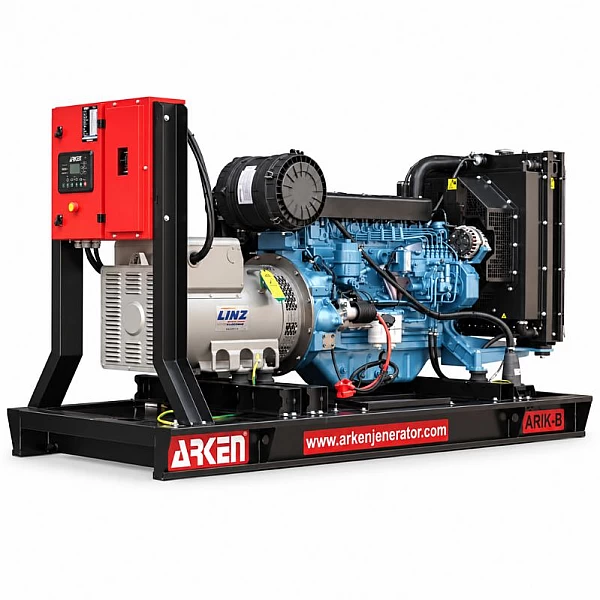

• Open-frame generator length: 2150 mm
• Open-frame generator width: 1,100 mm
• Height of the open-frame generator: 1,150 mm
• Open-frame generator weight: 1,221 kg
• Open-type generator fuel tank capacity: 174 l
• Open generator uninterrupted operating time: 8.17 hours

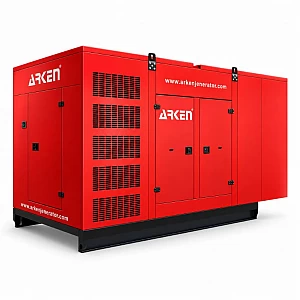

• Enclosed generator length: 2910 mm
• Enclosed generator width: 1,160 mm
• Enclosed generator height: 1,720 mm
• Enclosed generator weight: 1,592 kg
• Enclosed generator fuel tank capacity: 174 L
• Enclosed generator continuous operating time: 8.17 hours
• Close Generator noise level: 72 dB(A) @ 7 m

Optional components:

• 3P electrical circuit breaker: 180.00 EUR + VAT
• 3P automatic transfer switch (ATS) module: 480.00 EUR + VAT
