Diesel Generator Arken ARK-B0220 N5, 160 kW

Diesel Generator Arken ARK-B0220 N5, 160 kW

Country of origin: Turkey, warranty period—24 months

OPEN-TYPE GENERATOR PRICE – 20,120.00 EUR

THE PRICE LISTED IS FOR A CLOSED-TYPE GENERATOR!

Arken – a company founded in 2012 with the motto, “Life Goes On.” Arken generators can be custom-manufactured to meet individual needs for diesel generators with power ratings ranging from 2 kVA to 2,750 kVA. These generators are manufactured in a 14,000 m² facility in Arnavutköy and offer the best generator solutions tailored to customer or project requirements. In addition to its central manufacturing plant, “Arken” maintains an extensive global network through which it distributes its manufactured generators and other energy solutions.

“Baudouin”— one of the brands renowned as a reliable manufacturer of marine engines. It is a sought-after brand due to its well-earned durability, high performance, and operational reliability. The “Baudouin” brand, which has become one of the world’s leading brands, was developed to meet maritime standards and ensure optimal performance. For this reason, it is known as one of the top-ranked brands, as it meets environmental standards in the marine sector. These engines, which are manufactured in accordance with marine standards, are designed with a strong emphasis on safety, ensuring the highest quality and a purposeful design. A “Baudouin” engine is the safest choice, suitable for a wide variety of applications. All components involved in engine production are manufactured using state-of-the-art technology tools.

Technical specifications:

• Instantaneous electrical power (Stand-by): 220 kVA / 176 kW
• Continuous electric power output (Prime power): 200 kVA / 160 kW
• Output voltage: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine specifications:

• Manufacturer: Baudouin
• Engine power: 187 kW
• Engine model: 6M16G220/5
• Number of cylinders: 6 cylinders
• Number of valves: 12 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1,500 rpm
• Displacement: 9,726 cm³
• Air intake system: forced, turbocharger
• Piston diameter x stroke: 126 x 130 mm
• Compression ratio: 17 : 1
• Cooling: water-cooled
• Coolant system capacity: 44 l
• Alternator control: electronic
• Electrical control system: 24 V DC
• Battery charging current: 55 A
• Oil capacity: 26 l
• Cooled air flow rate: 415 m³/min
• Electric starter power: 8.5 kW
• Battery pack: 2 x 75 Ah
• Fuel consumption at (110%) load: 46.9 l/h
• Fuel consumption at (100%) load: 43.1 l/h
• Fuel consumption at (75%) load: 32.4 L/hr
• Fuel consumption at 50% load: 22.4 l/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator model: ARK 274H
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Start-up: automatic
• Voltage regulation: Electronic AVR
• Voltage regulation range: +-1%
• THD: < 5%

Control panel:

• Standards: ISO 8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency shut-off switch
• Battery charger, 5 A
• Generator controller
• Control relays
• Jumper (under the panel)

General Specifications:

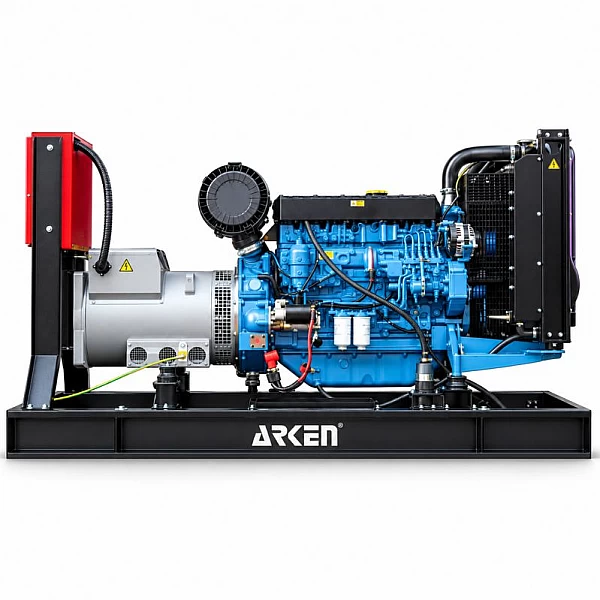

• Open-frame generator length: 3200 mm
• Width of the open-frame generator: 1200 mm
• Height of open-frame generator: 1,612 mm
• Open-type generator weight: 2,227 kg
• Open-type generator fuel tank capacity: 460 l
• Open-type generator continuous operating time: 10.67 hours

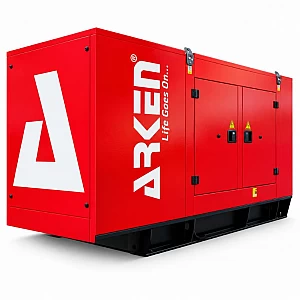

• Enclosed generator length: 4,094 mm
• Enclosed generator width: 1,260 mm
• Enclosed generator height: 2,063 mm
• Enclosed generator weight: 2,910 kg
• Enclosed generator fuel tank capacity: 460 L
• Enclosed generator continuous operating time: 10.67 hours
• Close generator noise level: 72.3 dB(A) @ 7 m

Optional components:

• 3P electrical circuit breaker: 480.00 EUR + VAT
• 3P automatic transfer switch (ATS) module: 1,000.00 EUR + VAT
