Diesel generator FULL FG 275 with 200 kW prime power

Diesel Generator FULL FG 275 with 200 kW Prime Power

Country of origin: Turkey, warranty period – 24 months

The powerful three-phase diesel generator FG 275 is a high-grade power source designed for reliable and long-term use in industrial facilities, construction sites, or public institutions. The unit is equipped with a dependable 6-cylinder turbocharged engine (model SD6L227TAD) with a displacement of 8.27 liters, direct injection, and a water cooling system. Operating at 1500 RPM, the generator provides a continuous power output of 250 kVA and a standby power output of 275 kVA. Its sound-insulated canopy, electronic control system, integrated fuel tank, and advanced control panel ensure safe, quiet, and convenient operation. The generator meets CE, ISO, and EAC quality and safety standards.

Features:

• Maximum standby power: 275 kVA (220 kW)
• Continuous prime power: 250 kVA (200 kW)
• Turbo intercooler engine with direct injection
• 6-cylinder inline engine with 8.27 L displacement
• Efficient water cooling system
• Electronic speed governor
• 1500 RPM at 50 Hz frequency
• Fuel consumption: 52.7 l/h (100% load), 26.4 l/h (50% load)
• Integrated 360 L fuel tank
• Soundproof canopy with transparent window for control panel
• Electrostatic powder-coated body for weather protection
• Certified to CE, ISO 9001, ISO 14001, ISO 45001, and EAC standards

Technical Specifications:

Engine:

• Engine model: SD6L227TAD
• Number of cylinders: 6 (inline)
• Injection system: Direct injection
• Compression ratio: 18:1
• Displacement: 8.27 L
• Bore: 114 mm
• Stroke: 135 mm
• Cooling system: Water cooled
• Air intake: Turbo intercooler
• Speed: 1500 RPM
• Fuel type: Euro diesel
• Oil capacity: 19 L
• Coolant capacity: 48 L

Electrical System (Alternator):

• Model: FLY-274K
• Power: 275 kVA
• Voltage: 230 / 400 V
• Phases: 3 (three-phase)
• Frequency: 50 Hz
• Automatic voltage regulator: AS440
• Voltage regulation: ±1%
• Insulation class: H
• Protection rating: IP22–IP23
• Power factor: 0.8

Dimensions and Weight:

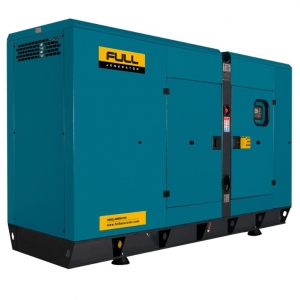

With Soundproof Canopy:

• Length: 3500 mm
• Width: 1200 mm
• Height: 1850 mm
• Weight: 2530 kg

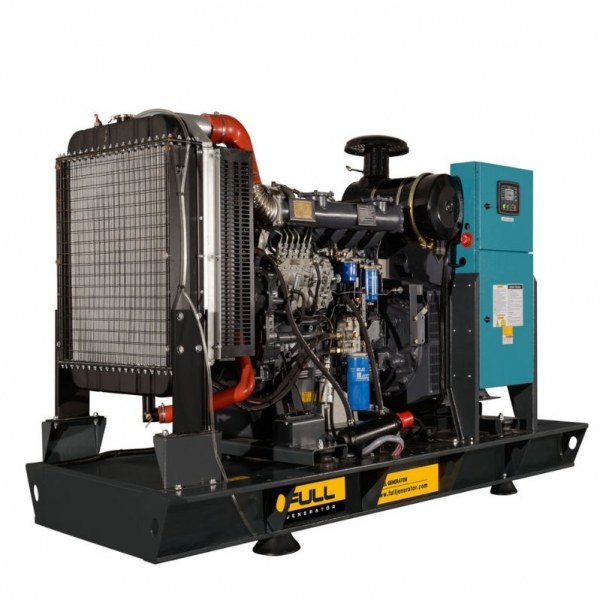

Open Type:

• Length: 2900 mm
• Width: 1200 mm
• Height: 1750 mm
• Weight: 2190 kg
• Fuel tank capacity: 360 L
