Based on 0 reviews. - Write a review
  • SKU: BD17800
1,649.00 €

1,936.00 €
BALTIC DIAG BALTIC DIAG
Prices shown include tax
Add to Cart

Send Message

Description

Two-post lift with overhead synchronization and 3+3-stage arms, 4 t, BD-4000VM33

Country of origin: China, warranty period – 24 months

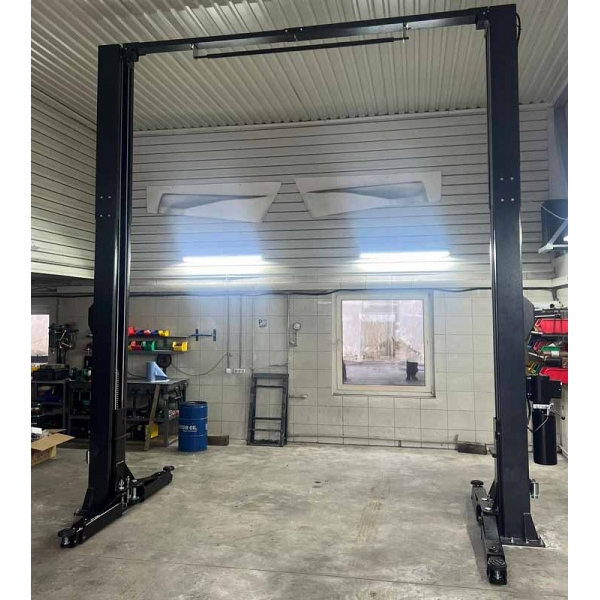

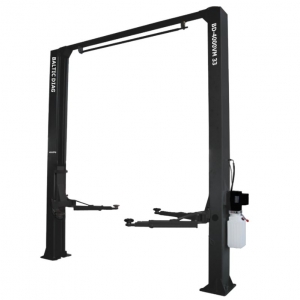

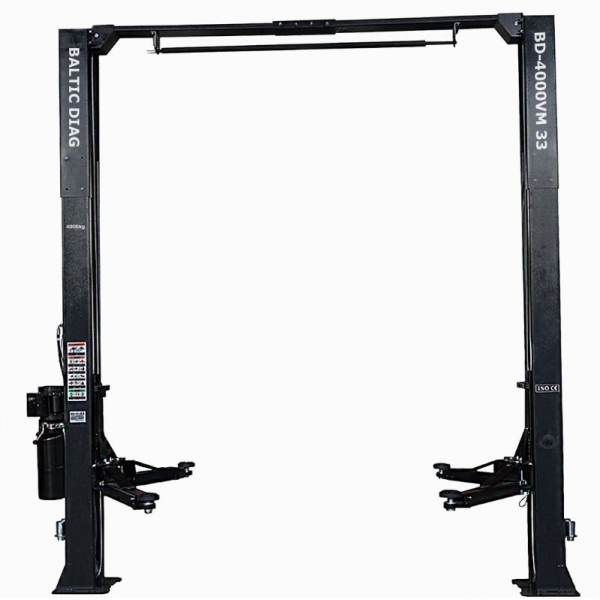

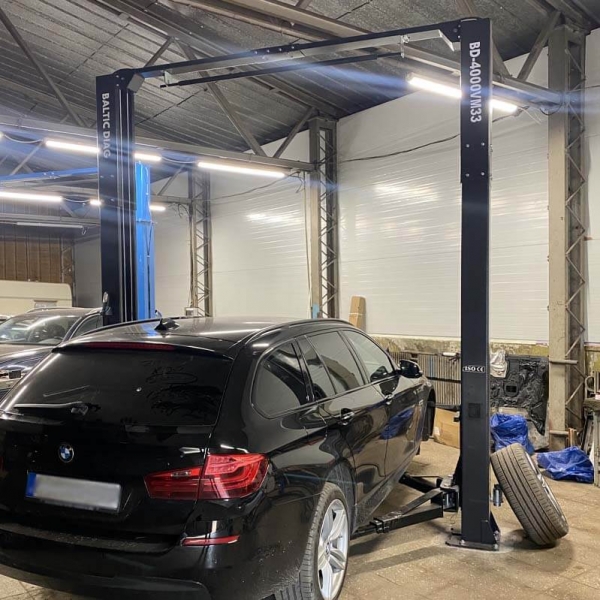

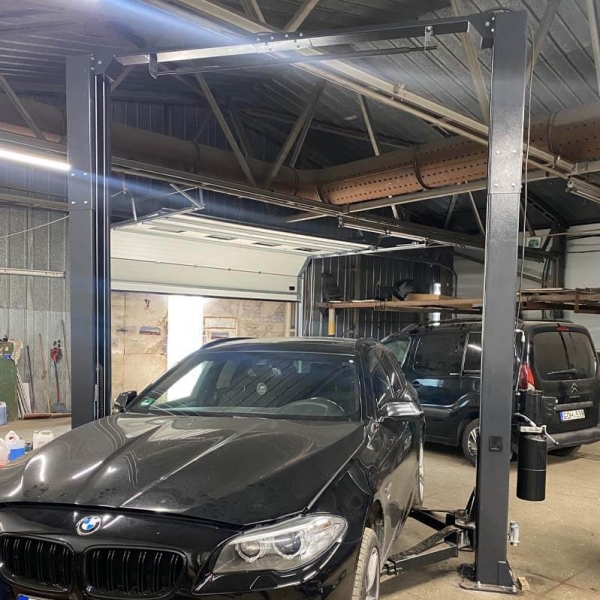

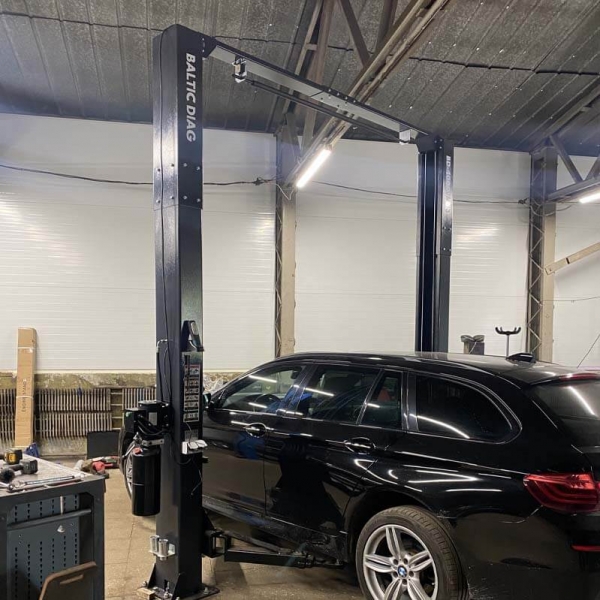

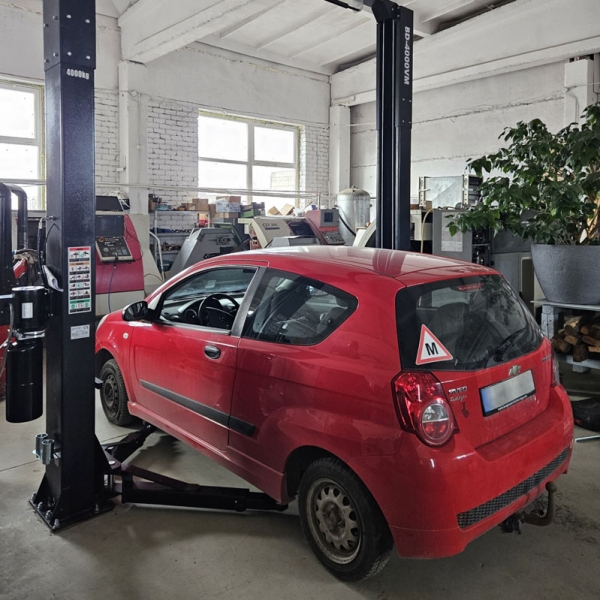

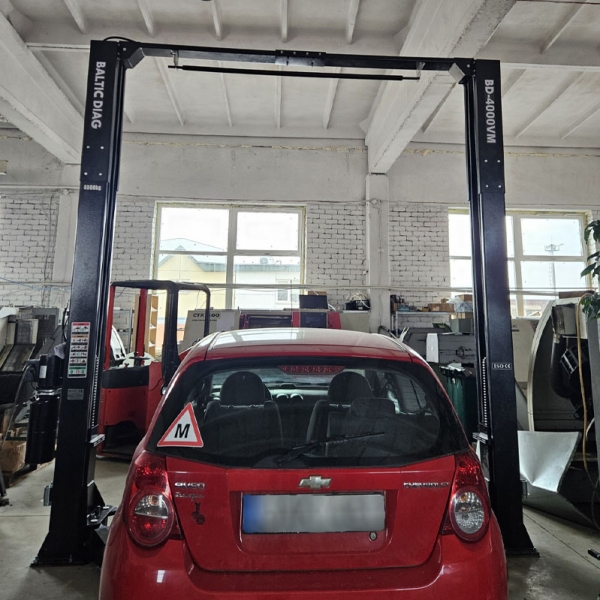

The BD-4000VM33 is a strong and reliable two-post lift designed for lifting passenger cars and light commercial vehicles up to 4 tons. The columns are synchronized via an overhead system, ensuring smooth and even lifting. The lift features a compact design, reduced component wear, and enhanced durability. It is equipped with high-quality hydraulic cylinders manufactured according to ANSI standards, self-lubricating UHMW polyethylene sliders, and brass bushings. The three-stage symmetrical/asymmetrical arms provide flexibility and efficiency for servicing various vehicle types.


Features:

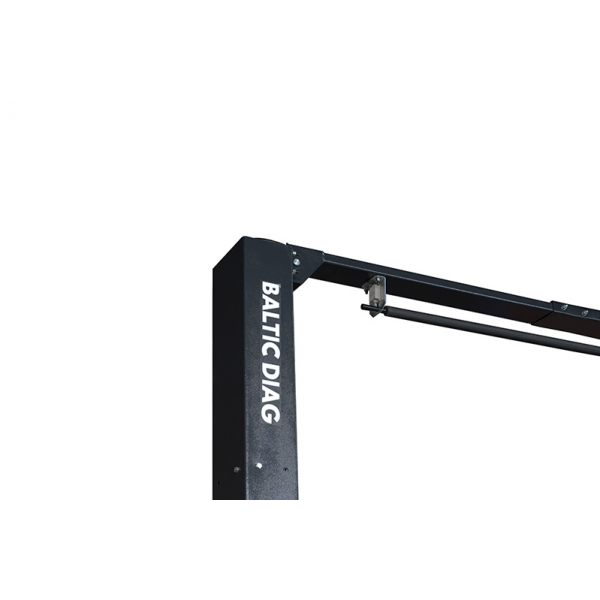

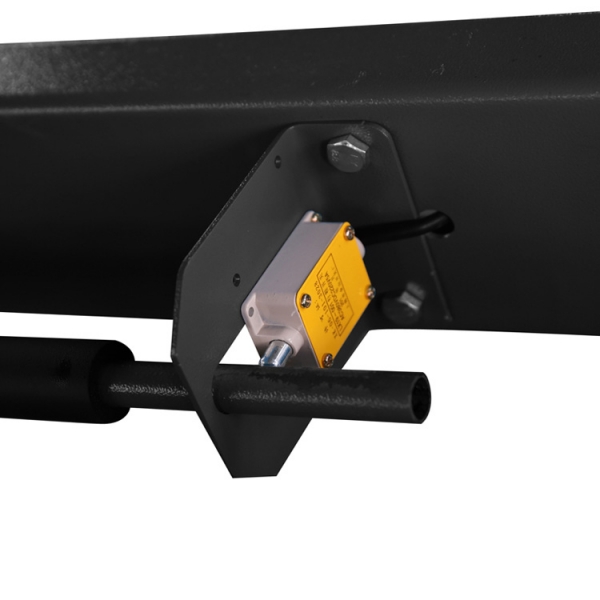

  • Overhead synchronization ensures lifting stability

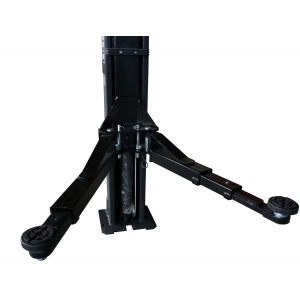

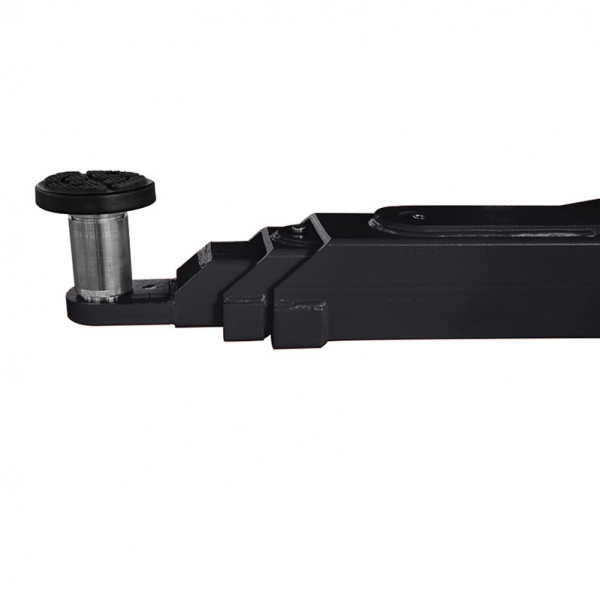

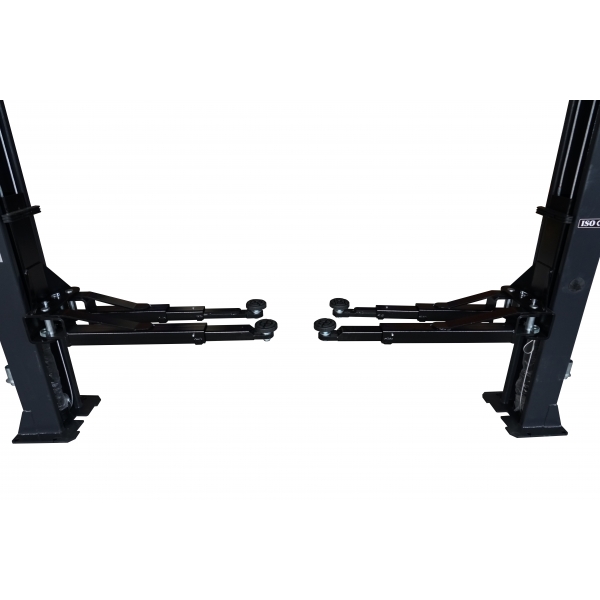

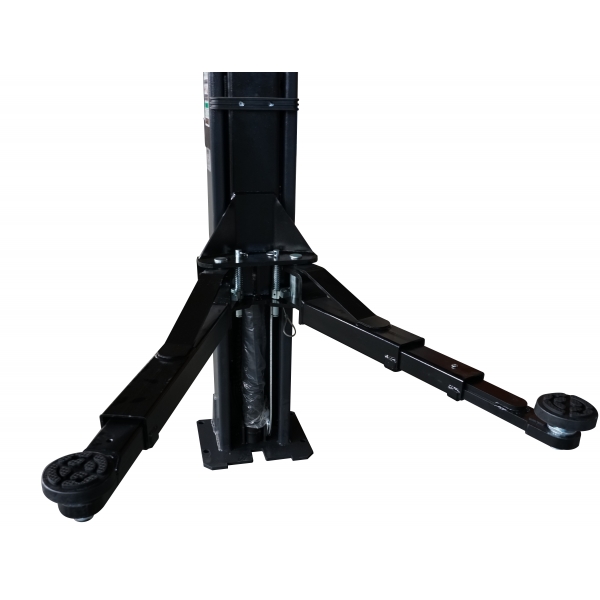

  • 3 + 3 stage arms suitable for symmetrical or asymmetrical use

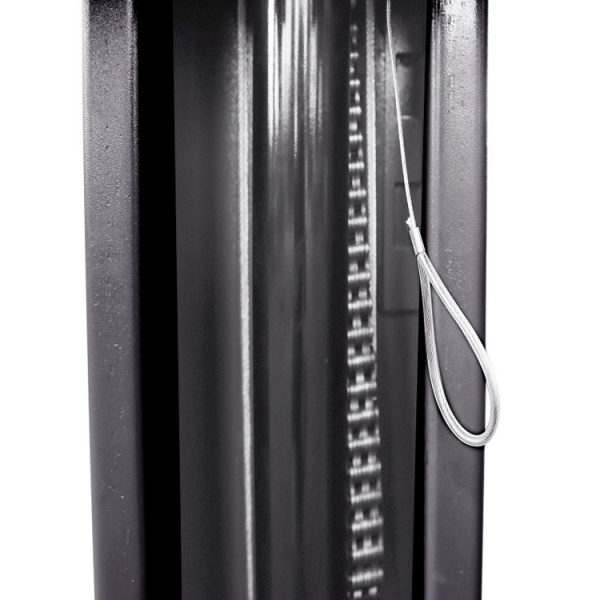

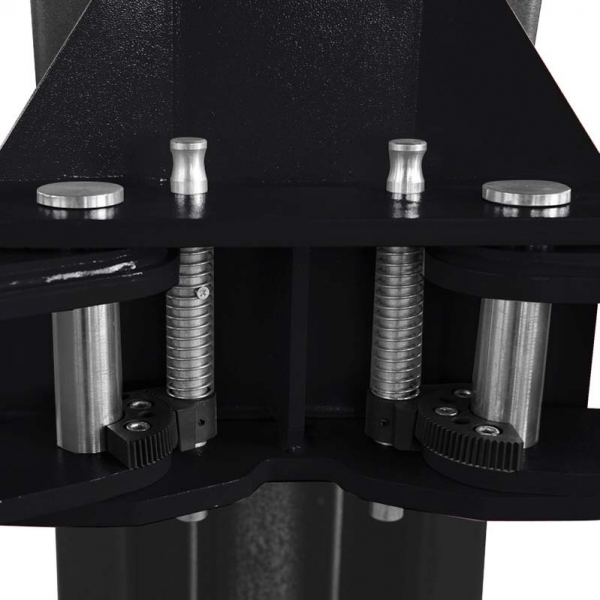

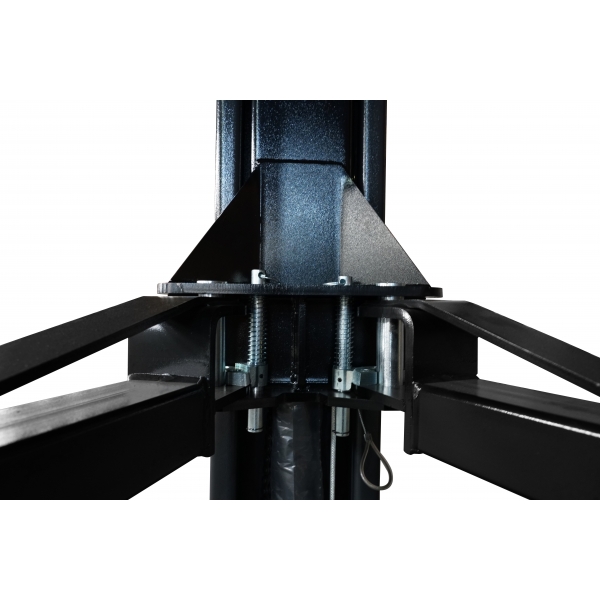

  • Two-point manual arm unlocking mechanism with dual safety system
  • Sturdy and compact design for long-lasting performance
  • Reinforced arm carriage for increased safety
  • CE certificate compliant with EU safety standards

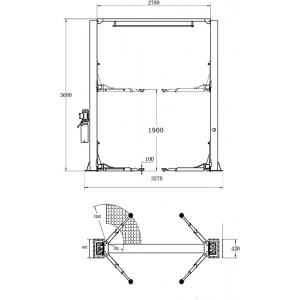

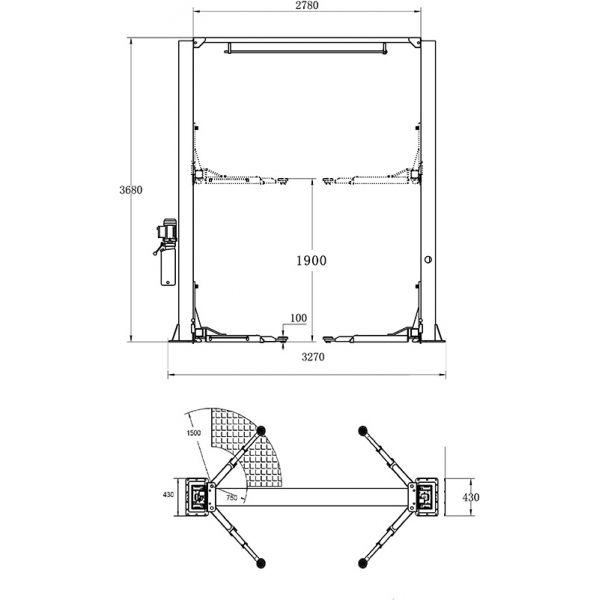

Technical Specifications:

  • Lifting capacity: 4000 kg
  • Lifting time: 60–65 sec
  • Lifting height: 1900 mm
  • Minimum pad height: 100 mm
  • Arm length (3-stage): 750–1500 mm
  • Overall lift width: 3270 mm
  • Distance between columns: 2780 mm
  • Maximum serviceable vehicle width: 2530 mm
  • Overall height: 3680 mm
  • Lift weight: 562 kg

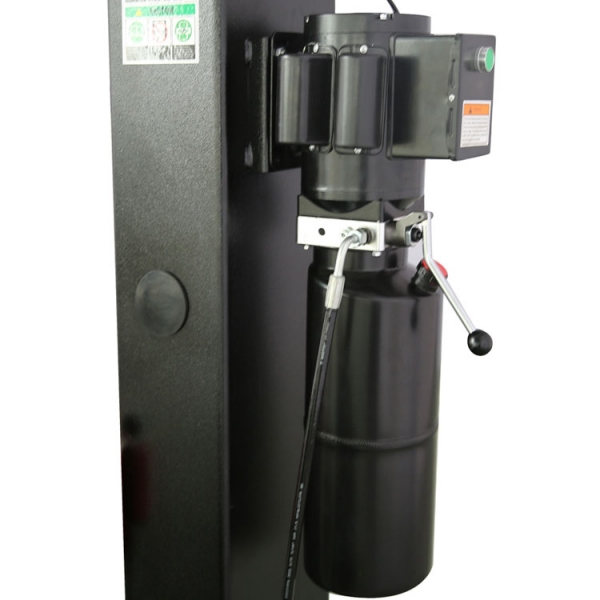

  • Electric motor: 2.2 kW
  • Power supply: 380 V / 50 Hz / 3-phase
  • Color: RAL7021
