Drilling and milling machines, Knuth Mark Super S

SKU: BD11107
SKU:: 301498

8,800.00 €

Prices shown include tax

Send Message

Description

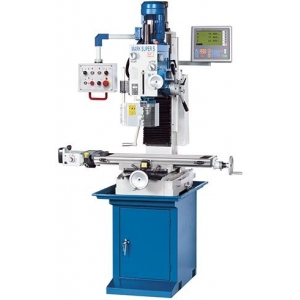

Drilling and milling machines, Knuth Mark Super S

Manufacturer: Knuth, Germany

The Mark Super series models are among the best drilling and milling machines on the market. They are ideal if you need a compact drill with a powerful drive and a wide range of speeds. However, they can also mill steel or other non-ferrous metals without difficulty. Therefore, they are widely used in workshops and maintenance departments that work on individual parts, in small-volume production or in training departments. Thanks to its compact design and versatility, this machine is one of the best performing, even after 15 years on the market.

Extended work table length with automatic product feeding in the X axis.

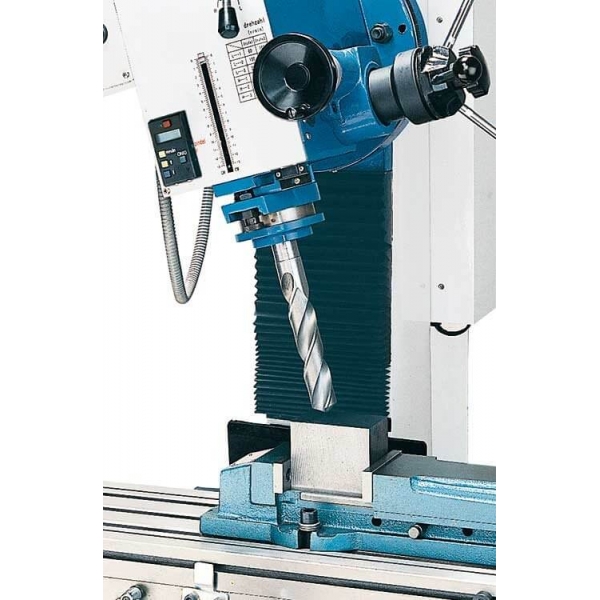

Automatic drill feed with depth display.

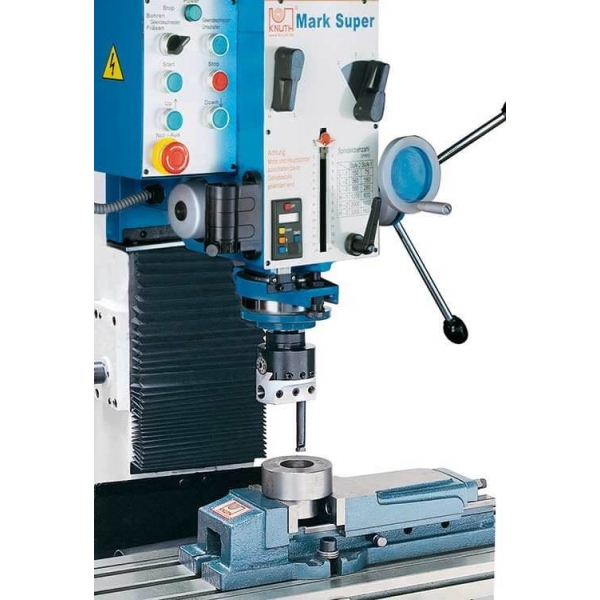

The gearbox milling head is designed for powerful, robust machining of parts.

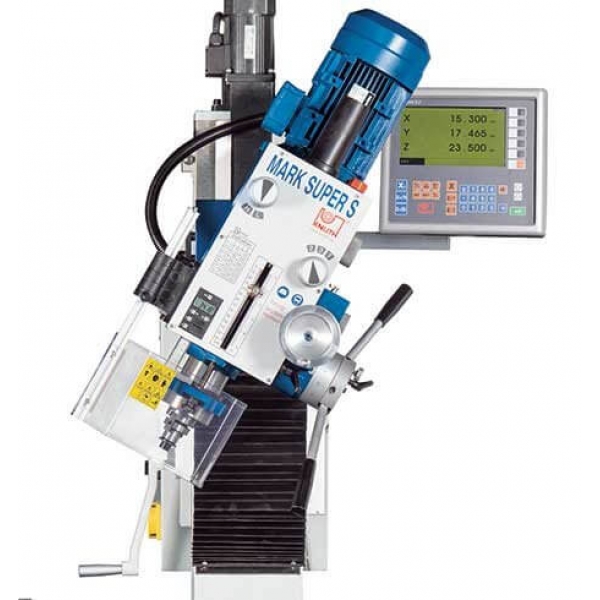

Swiveling head for wide range and applications.
Infinitely variable spindle speed with digital display (SV model only)

More detailed description:

More power and adjustable spindle speed for a wider range of applications.
Motorized movement of the cutting head and manual adjustment to keep the drill head in the most suitable position.
Hand roller, quills for micrometer precision feed.
Digital depth indicator, display of pen progress.

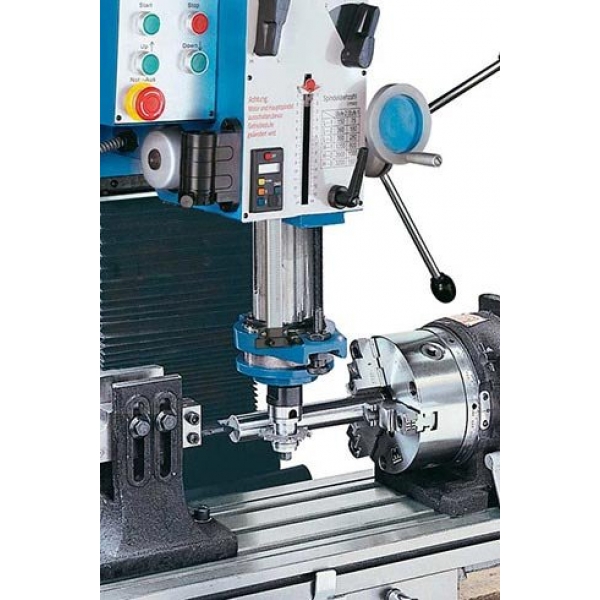

Threading block, with adjustable direction of rotation, for cutting threads.
Hardened drive gears and shaft for quiet operation and durability.
A sturdy stand with special spaces for storing tools.
A track is installed that allows products to automatically move along the x-axis.

Three-axis position indicator:

Much higher accuracy.
Less chance of errors.
Increased productivity.
Responding to saving work time.
Easy to understand settings screen.
Operator specific functions.
Convenient layout of controls.
Resolution: 0.01 / 0.005 mm.
Default coordinates.
Retaining axis position even when the control screen is turned off
Calculation of the circular modulus of the hole.
Calculator function.
10 tool storage spaces.
Choice between radius/diameter dimensions.
Choice between mm / inch.
Easy expansion of possibilities and a device that does not require additional service.
Two gears and premium quality frequency control technology ensures high torque throughout the entire speed range for powerful milling.
The selected spindle speed is directly transmitted on the control panel.
