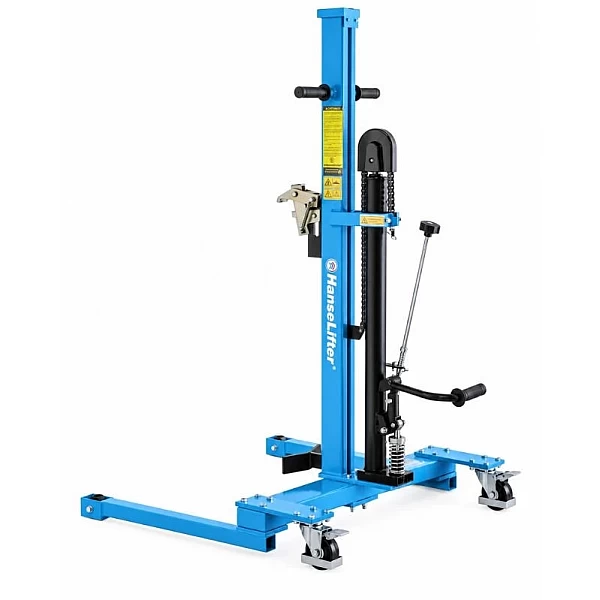

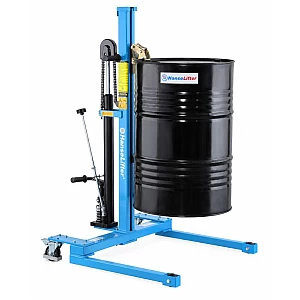

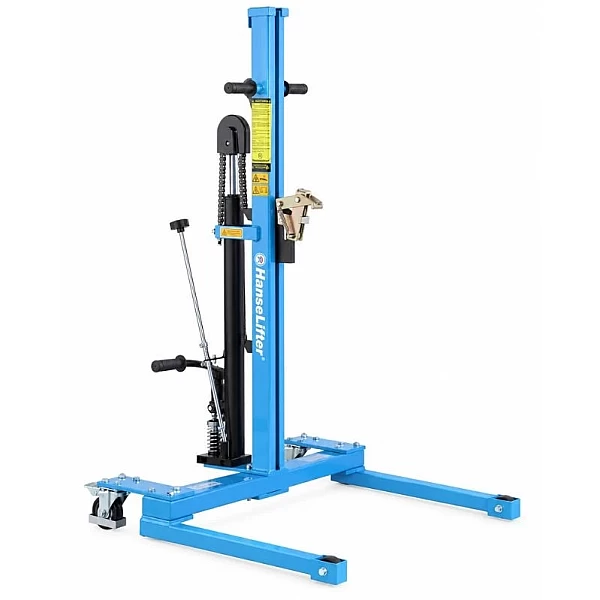

Drum lifter and roller 300 kg HanseLifter FHR300

New

HanseLifter FHR300 300 kg Building Hoist and Roller

Based on 0 reviews. - Write a review

SKU: BD71675
SKU:: GE0023077

1,009.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

HanseLifter FHR300 300 kg Building Hoist/Rolling Lift

Country of origin: Germany; warranty period: 24 months

The HanseLifter FHR300 is a professional manual drum lifter designed for the convenient lifting, transport, and positioning of 208-liter DIN-standard drums in warehouses, production facilities, workshops, logistics centers, and industrial facilities. Its 300 kg lifting capacity allows for the reliable transport of heavy industrial drums, while the self-locking gripping mechanism ensures they are held securely during lifting and handling. The special wide-base chassis design allows for easy access to and lifting of drums stored on Euro pallets. The foot-operated hydraulic pump allows for smooth adjustment of the drum height, while the lowering mechanism, controlled by a rotary handle, ensures precise and controlled lowering of the load. The sturdy steel construction, durable polyurethane casters, and integrated parking brakes ensure convenient, stable, and efficient daily use.

Technical Specifications:

Lifting capacity: 300 kg
Drive type: manual
Lifting mechanism: hydraulic
Lifting control: foot pedal
Lowering control: rotary handle
Container clamping mechanism: self-closing
Suitable container type: DIN
Suitable container capacity: 208 L
Minimum barrel gripping height: 850 mm
Maximum barrel gripping height: 1,700 mm
Maximum height of the bottom edge of the barrel: 800 mm
Free lift height: 570 mm
Height of the lift mast in the lowered position: 1,590 mm
Lifting mast height in the raised position: 1,825 mm
Clearance height: 1,590 mm
Ground clearance under the chassis supports: 90 mm
Internal distance between chassis supports: 830 mm
Ground clearance under the lifting structure with a load: 100 mm
Ground clearance at the center of the wheelbase: 45 mm
Front casters: 38 × 30 mm
Rear casters: 64 × 30 mm
Caster material: polyurethane (PU)
Turning radius: 1170 mm
Braking system: mechanical parking brakes
Brake location: both steering casters
Recommended transport distance: short distances
Control: manual hydraulic
Delivery: partially assembled
Final assembly: to be performed according to the assembly instructions

The HanseLifter FHR300 300 kg is the right choice for businesses that need a reliable, compact pallet jack designed for intensive daily use. The self-closing gripping mechanism, convenient foot-operated lifting, precisely adjustable lowering, and a chassis with wide support legs enable more efficient handling, lifting, and transport of pallets, reducing the physical strain on employees. The sturdy construction, durable polyurethane casters, and parking brakes on both steering casters ensure smooth, convenient, and long-lasting use in warehousing, manufacturing, and industrial settings.

Manual Lifting and Transport of Industrial Structures
A lifting capacity of 300 kg allows for the lifting and transport of heavy industrial drums
Specially adapted for standard 208-liter DIN drums
The self-closing gripping mechanism ensures a secure hold on the drum during lifting and transport
The automatic closing of the gripping mechanism makes it easier to pick up drums and reduces the need for manual locking

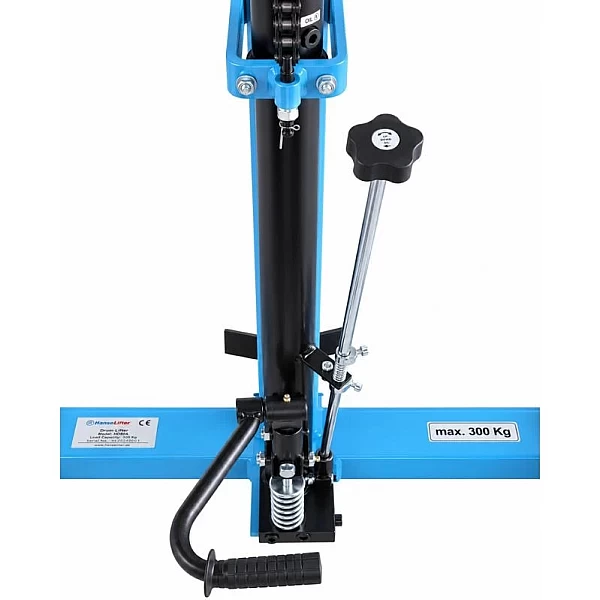

A foot-operated hydraulic pump allows for convenient drum lifting without using your hands
The manual hydraulic mechanism ensures smooth and reliable lifting of barrels
The lowering mechanism, controlled by a rotary handle, allows for precise adjustment of the drum’s descent
Smooth lowering provides greater control during drum handling and positioning tasks

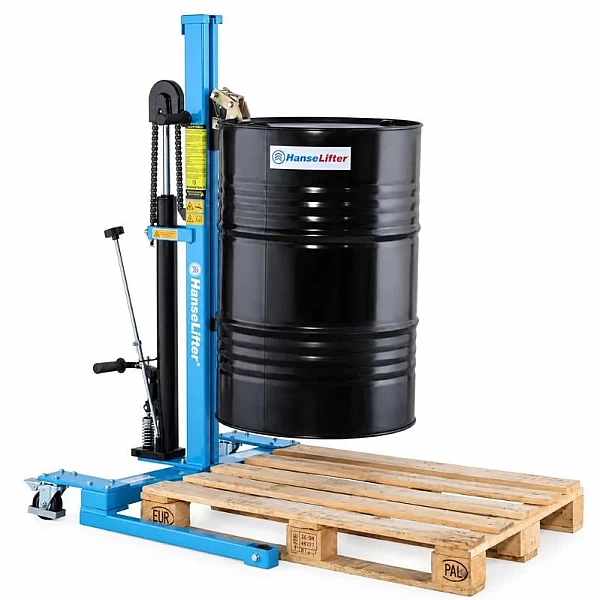

A special chassis with wide supports allows for easy access to barrels stored on Euro pallets
The 830 mm internal distance between the chassis supports facilitates the removal of containers from pallets
A 90 mm clearance height under the chassis supports provides greater maneuverability around low-profile loads
The drum gripping mechanism is designed for operation at various heights
The maximum lifting height of the bottom edge of a drum is 800 mm
The free-lift function provides greater flexibility when lifting and positioning drums
The sturdy steel construction is designed for intensive daily use
The high-quality powder-coated finish helps protect the structure from corrosion and mechanical damage
The ergonomic control design facilitates the transport and maneuvering of barrels
Polyurethane swivel and support casters feature quiet rolling and wear resistance
Durable polyurethane wheels ensure smooth movement on smooth warehouse and industrial floors
Parking brakes on both steering casters help prevent the lift from moving unintentionally during operation
A 1,170 mm turning radius facilitates maneuvering in warehouses and confined workspaces
The compact design allows for convenient use of the lift in manufacturing and warehousing facilities
The manual hydraulic mechanism requires no electricity or battery charging
Suitable for use in manufacturing facilities, warehouses, workshops, logistics centers, and other industrial settings

Length: 1160 mm
Width: 980 mm
Height: 1,590 mm
Weight: 75 kg

HanseLifter FHR300 Building Hoist and Roller x 1
Integrated hydraulic lifting mechanism with foot pedal x 1
Self-closing barrel gripping mechanism x 1
Rotating load-lowering handle x 1
Integrated parking brakes x 1
