Electric forklift 1200 kg NH Handling NH1248-N
Electric forklift 1200 kg NH Handling NH1248-N
- SKU: BD99842
- SKU:: 8362248
34,485.00 €
Send Message
Inquiry for the Vilnius region
Description

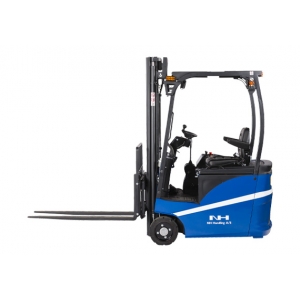

Electric Forklift 1200 kg NH Handling NH1248-N
Country of origin: Denmark, warranty period - 36 months
The NH Handling NH1248-N is a compact and efficient electric forklift designed for material handling in smaller warehouse or production spaces. This model features a modern design, ergonomic controls, excellent visibility, and high maneuverability. The advanced CURTIS control system and powerful Wan Nan motors with AC technology ensure long-lasting performance, low energy consumption, and quiet operation. Thanks to the hydraulic fork shift, the forklift can handle various types of pallets.
Functions:
- Modern design and CURTIS controller for comfortable and safe operation
- Wan Nan motors with the latest AC technologies for efficient energy use
- Good visibility in front and rear, with protective roof grilles for operator safety
- Rear axle placement ensures stable turning and a small turning radius
- Extremely quiet operation, environmentally friendly
- Hydraulic fork shift – compatible with all types of pallets

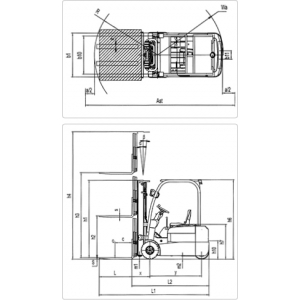

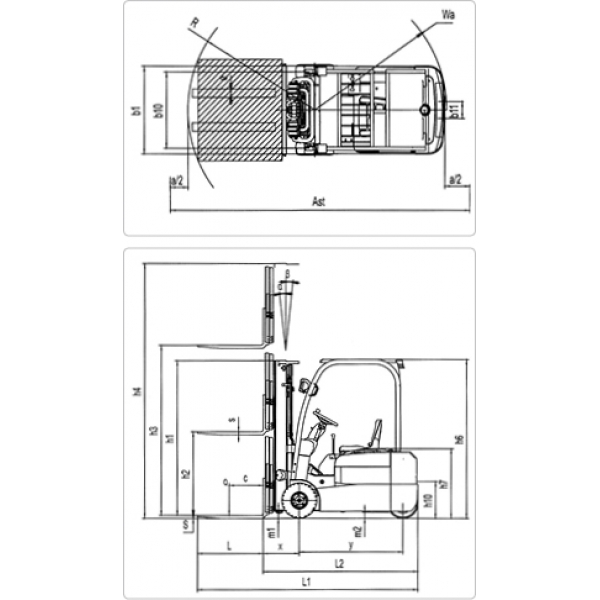

Technical specifications:
- Drive unit: electric
- Maximum load: 1200 kg
- Load center: 500 mm
- Distance from drive wheel center to fork tip: 265 mm
- Wheelbase: 991 / 1073 mm
- Weight with battery: 2080 kg
- Axle load with load (front/rear): 2950 / 330 kg
- Axle load without load (front/rear): 880 / 1220 kg
- Wheel type: solid rubber
- Front wheel size: 13 x 4 - 1/2 x 8 mm
- Rear wheel size: Ø 343 x 140 mm
- Wheel configuration: 2 / 1 x
- Travel speed with / without load: 7 / 9 km/h
- Lifting speed with / without load: 0.15 / 0.22 m/s
- Lowering speed with / without load: 0.17 / 0.25 m/s
- Gradeability with / without load: 6 / 10 %
- Service brake: hydraulic
- Drive motor (S2 – 60 min.): 3 kW
- Lifting motor (S3 – 15%): 3 kW
- Battery: 24 V / 420 Ah
- Battery weight: 440 kg
- Controller: AC Curtiz
- Fork tilt forward / backward: 6 / 6.5°
- Mast height (lowered): 2209 mm
- Fork height from floor to top: 1263 mm
- Lifting height: 4800 mm
- Mast height (raised): 5779 mm
- Overhead guard height: 1975 mm
- Seat height: 980 mm
- Tow hook height: 540 mm
- Overall length: 2460 mm
- Length to fork back: 1545 mm
- Overall width: 880 mm
- Fork dimensions: 35 x 100 x 1200 mm
- Fork carriage width: 825 mm
- Free lift under mast with load: 80 mm
- Ground clearance at wheelbase center: 90 mm
- Aisle width with 1000 x 1200 pallet crosswise: 2950 mm
- Aisle width with 800 x 1200 pallet lengthwise: 3068 mm
