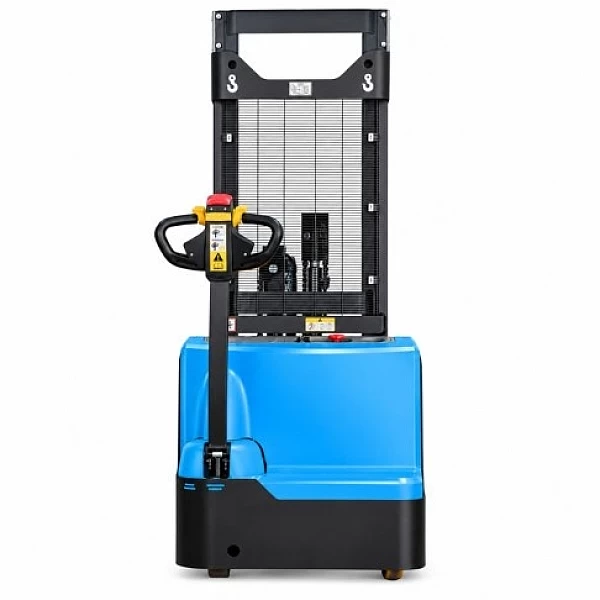

Electric high-lift truck with control handle 1.2-metric-ton HanseLifter SMART-DH1230-PFH-LI

New

1.2-metric-ton HanseLifter SMART-DH1230-PFH-LI Electric High-Lift Truck with Control Handle

Based on 0 reviews. - Write a review

SKU: BD71697
SKU:: GE0083612

5,569.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

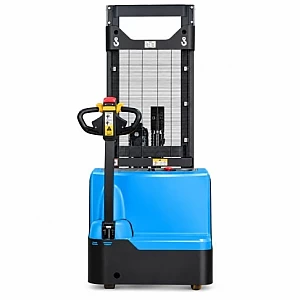

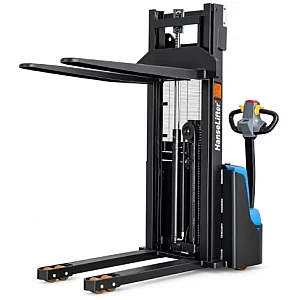

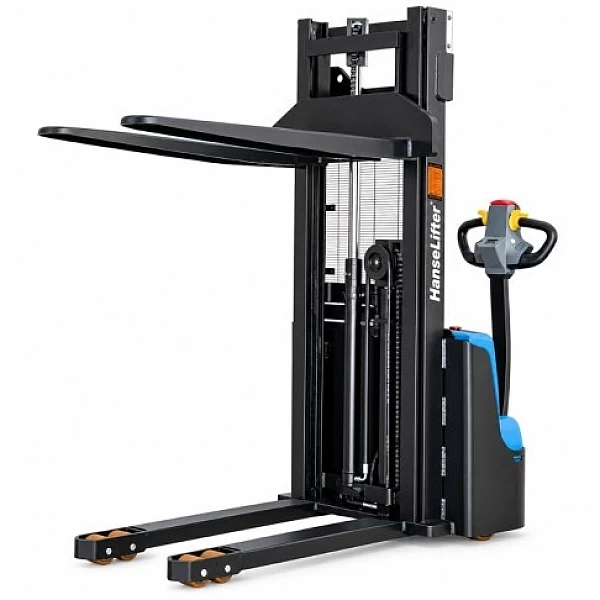

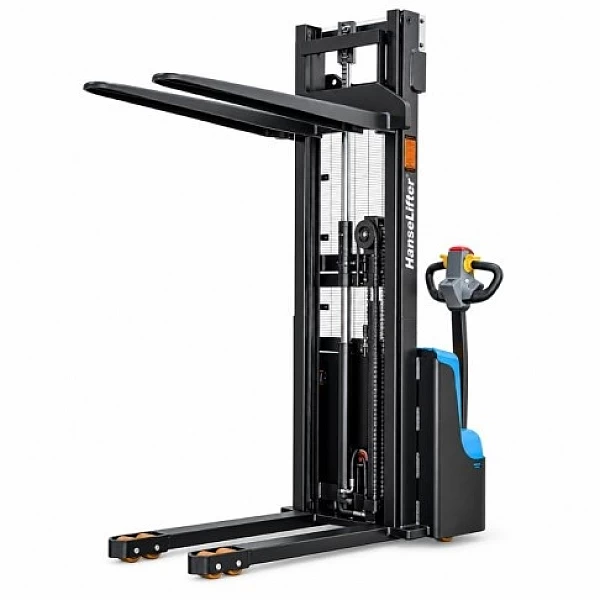

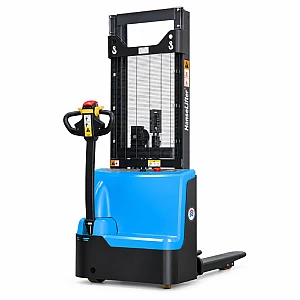

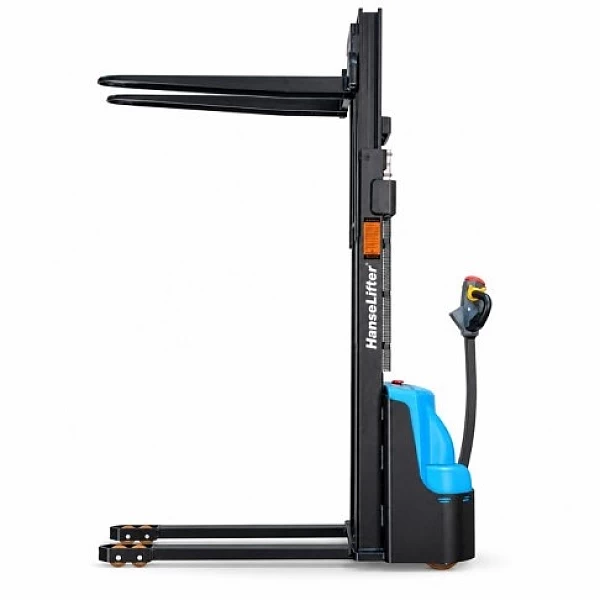

HanseLifter SMART-DH1230-PFH-LI 1.2-metric-ton Electric High-Lift Truck with Control Handle

Country of origin: Germany; warranty period: 24 months

HanseLifter SMART-DH1230-PFH-LI – a professional electric high-lift pallet truck with a lithium-ion battery and free-lift function, designed for efficient pallet handling, transportation, and storage in warehouses, production facilities, retail locations, and logistics centers. A lifting capacity of 1,200 kg and a lifting range of 85–3,000 mm allow for the convenient transport of heavy loads and their placement on higher storage racks. The integrated 1,550 mm free-lift function allows the forks to be raised without increasing the overall height of the lift mast, making the unit particularly suitable for areas with low ceilings and limited vertical working space.

Technical Specifications:

Lifting capacity: 1,200 kg
Drive type: electric travel and electric lift
Control type: handle control, walk-behind operator
Travel motor power: 0.75 kW
Lifting motor power: 2.5 kW
Lifting control: proportional hydraulic system
Load center distance: 600 mm
Load distance: 796 mm
Wheelbase: 1210 mm
Lifting range: 85–3,000 mm
Maximum fork lift height: 3,000 mm
Minimum fork height: 85 mm
Fork stroke: 2,915 mm
Free lift: 1,550 mm
Mast type: double mast with free-lift function
Mast height in lowered position: 1,960 mm
Lift mast height when fully raised: 3,477 mm
Fork length: 1,150 mm
Fork dimensions: 70 × 160 × 1,150 mm
Outer fork width: 560 mm
Frame length without forks: 580 mm
Control handle height: 910–1,270 mm
Front wheel size: 210 × 70 mm
Rear wheel size: 80 × 70 mm
Size of additional support wheels: 115 × 55 mm
Wheel material: polyurethane (PU)
Front track width: 555 mm
Rear track width: 400 mm
Clearance at the center of the wheelbase: 30 mm
Turning radius: 1425 mm
Working passage width with an 800 × 1200 mm pallet: 2194 mm
Travel speed with load: 4 km/h
Travel speed without load: 4.5 km/h
Lifting speed with/without load: 125 / 208 mm/s
Lowering speed with load / without load: 165 / 245 mm/s
Maximum gradeability with load: 5%
Maximum gradeability without load: 10%
Braking system: electric
Proportional lifting and lowering function: yes
Free-lift function: Yes
Digital control display: yes
Battery type: lithium-ion (Li-ion), maintenance-free
Battery voltage: 24 V
Battery capacity: 60 Ah
Battery weight: 15 kg
Charger: built-in
Charging voltage: 230 V
Motor control type: direct current (DC)
Noise level at the operator’s position: less than 75 dB(A)

The HanseLifter SMART-DH1230-PFH-LI 1.2 metric tons is the right choice for companies that need a reliable, compact electric high-reach forklift designed for intensive daily use, featuring a lithium-ion battery and free-lift function. With a lifting capacity of 1,200 kg, a lifting range of 85–3,000 mm, and a free lift of 1,550 mm allow for efficient pallet transport, loading, and warehousing operations, even in spaces with limited ceiling heights. Precise proportional control and electric drive systems for travel and lifting reduce the operator’s physical strain and facilitate load positioning. This is a practical solution for companies seeking to combine high lift height, precise load handling, operational efficiency, and a durable design.

Electric pallet lifting, lowering, and transport
A lifting capacity of 1,200 kg allows for the lifting and transport of heavy warehouse and industrial loads
A lifting range from 85 to 3,000 mm allows for convenient loading of pallets onto higher storage racks
A maximum fork height of 3,000 mm allows for more efficient use of vertical storage space
The integrated 1,550 mm free-lift function allows the forks to be raised without increasing the overall height of the lift mast
The free-lift function is particularly useful in areas with low ceilings, doorways with limited height, and limited vertical working space
The lowered lift mast, at a height of 1,960 mm, facilitates passage through lower doorways
The electric drive reduces physical effort when transporting heavy loads
The 2.5 kW electric lift motor ensures fast and smooth pallet lifting
A 0.75 kW travel motor enables efficient transport of loads within the warehouse
The proportional hydraulic control system allows for precise adjustment of the fork lifting and lowering speed
The proportional control valve ensures smooth and controlled load positioning
Precise lift control facilitates placing pallets onto storage racks and retrieving them
Sensitive and smooth fork lowering helps reduce sudden movements and protect more delicate loads
The patented design of the multifunctional control handle ensures comfortable and intuitive operation
The ergonomic control handle is designed to be operated with either the left or right hand

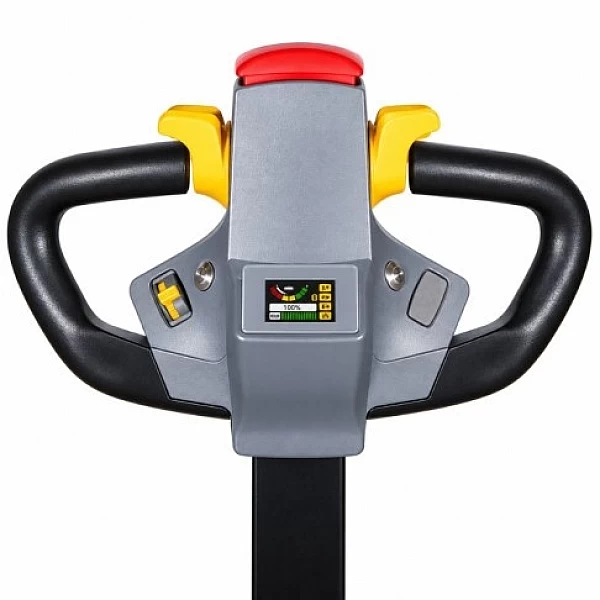

The multifunctional smart control handle head allows for convenient control of travel, lift, and lower functions
The integrated digital display shows the battery charge level, operating hours, and key operational information about the machine
The double-lift mast ensures structural rigidity and stable load handling at greater heights
A transparent safety shield made of organic glass improves visibility of the load and the work area
The protective structure helps isolate the operator from moving parts of the lifting mechanism
The integrated 24 V / 60 Ah lithium-ion battery ensures an efficient power supply to the electric drive and lifting system
Lithium-ion technology features a long service life, low self-discharge, and no memory effect
The maintenance-free lithium-ion battery simplifies daily equipment operation
The battery can be recharged during work breaks, making it easier to manage intensive warehouse operations

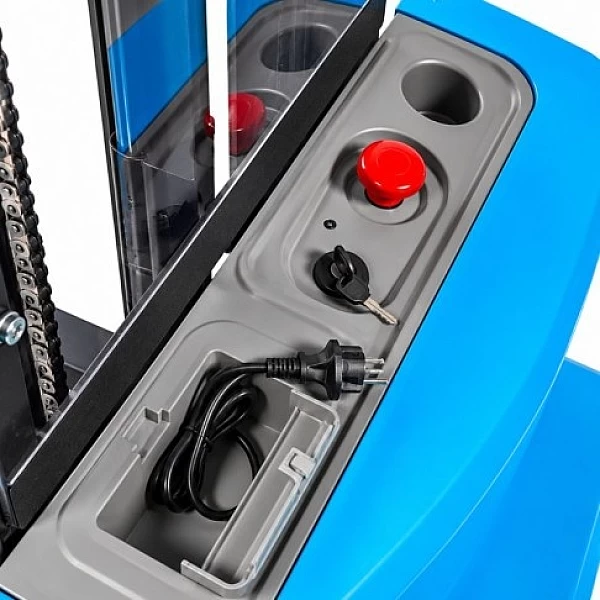

The integrated charger allows for convenient charging of the battery from a standard 230 V electrical outlet
No separate stationary charging station is required to charge the battery
The electric braking system ensures controlled stopping of the truck
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for smooth industrial floors
Tandem axle wheels help distribute the load more evenly and navigate floor joints and minor unevenness more smoothly
Additional support casters increase the cart’s stability when transporting heavy loads
The 1,150 mm fork length and 560 mm outer fork width are designed for transporting standard European pallets
The compact design facilitates maneuvering in confined workspaces
A 1,425 mm turning radius allows for convenient maneuvering in tighter storage areas
A maximum travel speed of 4.5 km/h enables efficient transport of loads over short distances
The truck can handle slopes of up to 5% when loaded and up to 10% when unloaded
The sturdy steel construction is designed for intensive daily use
Compact dimensions of 1,730 mm in length and 820 mm in width facilitate maneuvering the unit between storage racks
Suitable for use in warehouses, manufacturing facilities, retail locations, logistics centers, and spaces with low ceiling heights

Length: 1,730 mm
Width: 820 mm
Height: 1,960 mm
Weight: 575 kg

HanseLifter SMART-DH1230-PFH-LI Electric High-Lift Truck x 1
Integrated 24 V / 60 Ah lithium-ion battery x 1
Integrated battery charger x 1
Multifunctional, ergonomic control handle with digital display x 1
Proportional hydraulic control system x 1
Double lifting mast with 1550 mm free lift function x 1
Transparent organic glass safety shield x 1
Set of polyurethane casters x 1
Electric braking system x 1
