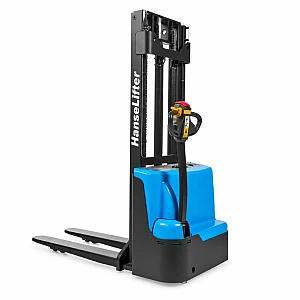

Electric high-lift truck with control handle 1.5 tons HanseLifter Smart-DH1530-P-LI

Electric high-lift truck with control handle 1.5 tons HanseLifter Smart-DH1530-P-LI

Country of origin: Germany; warranty period: 24 months

HanseLifter Smart-DH1530-P-LI – a professional electric high-lift pallet truck with a lithium-ion battery, designed for efficient pallet handling, transportation, and storage in warehouses, manufacturing facilities, retail locations, and logistics centers. A lifting capacity of 1,500 kg and a lifting range of 85–3,000 mm allow for the convenient transport of heavy loads and their placement on higher storage racks. The electric drive for travel and lifting reduces the physical strain on employees, while the proportional hydraulic control system ensures precise, smooth, and even lifting and lowering of the forks. The double-mast design features a robust construction, and the 1,980 mm height in the lowered position allows the truck to be used in facilities with clearance heights of that size. The multifunctional, ergonomic control handle with a digital display simplifies daily operations, while the transparent organic glass safety shield ensures good visibility of the load and the work area. The integrated 24 V / 60 Ah lithium-ion battery ensures a reliable power supply and allows for additional charging during work breaks. The built-in charger allows for convenient charging of the battery from a standard 230 V electrical outlet, while the durable construction, polyurethane wheels, and integrated safety features ensure reliable and efficient daily use.

Technical Specifications:

• Lifting capacity: 1,500 kg
• Drive type: electric travel and electric lift
• Control type: pedestrian-operated or stand-up operator-controlled
• Drive motor power: 0.75 kW
• Lifting motor power: 2.5 kW
• Lifting control: proportional hydraulic system
• Load center distance: 500 mm
• Load distance: 796 mm
• Wheelbase: 1210 mm
• Lifting range: 85–3,000 mm
• Maximum fork lift height: 3,000 mm
• Minimum fork height: 85 mm
• Fork stroke: 2,915 mm
• Free-lift function: none

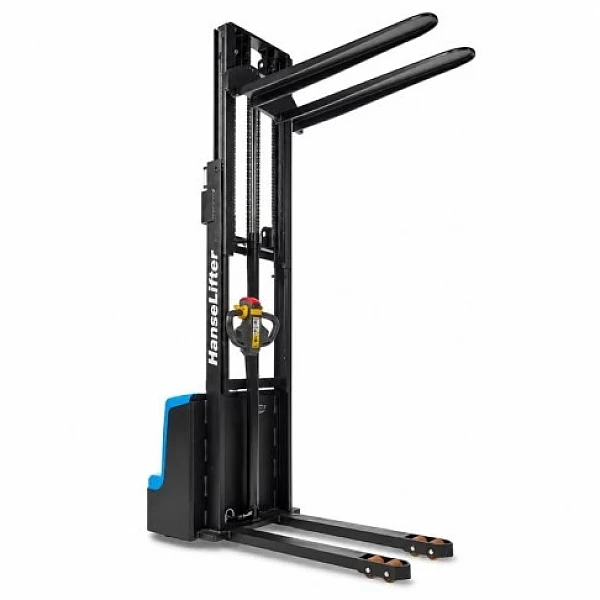

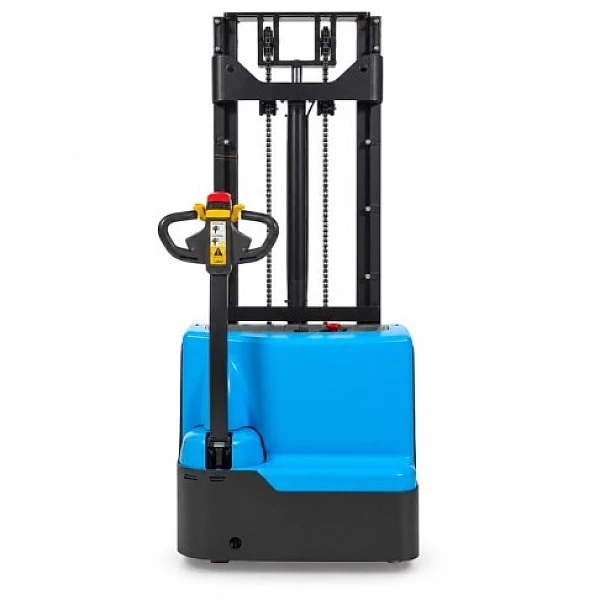

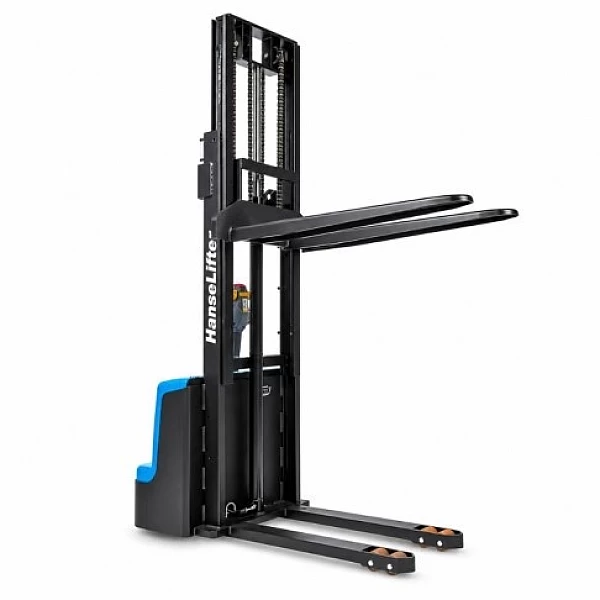

• Mast type: double
• Lift mast height in lowered position: 1,980 mm
• Lifting arm height when raised: 3,417 mm
• Fork length: 1,150 mm
• Fork dimensions: 70 x 160 x 1,150 mm
• Outer fork width: 560 mm
• Frame length without forks: 580 mm
• Control handle height: 910–1,270 mm
• Front wheel size: 210 x 70 mm
• Rear wheel size: 80 x 70 mm
• Size of additional support wheels: 115 x 55 mm
• Wheel material: polyurethane (PU)
• Front track width: 550 mm
• Rear track width: 390 mm
• Clearance at the center of the wheelbase: 30 mm
• Turning radius: 1425 mm
• Working passage width with an 800 x 1200 mm pallet: 2194 mm
• Travel speed with load: 4 km/h
• Travel speed without load: 4.5 km/h
• Lifting speed with/without load: 102 / 190 mm/s
• Lowering speed with load / without load: 135 / 200 mm/s
• Maximum gradeability with load: 5%
• Maximum gradeability without load: 10%
• Braking system: electric
• Proportional lifting and lowering function: Yes
• Soft-lowering function: yes

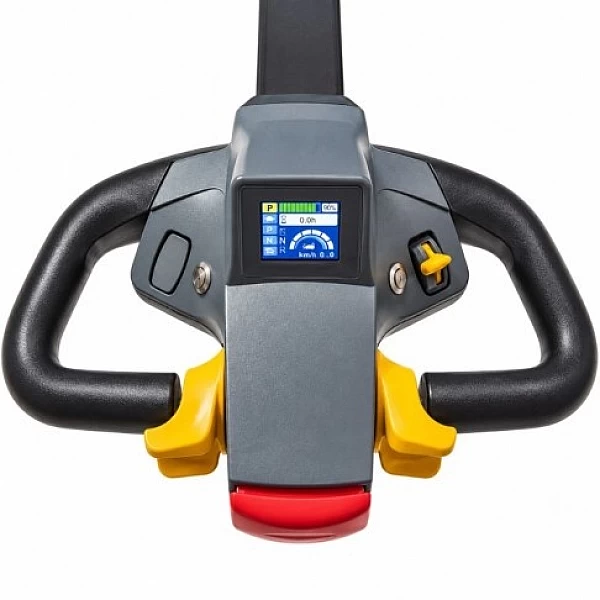

• Digital control display: Yes
• Automatic standby mode: Yes
• Battery type: lithium-ion (Li-ion), maintenance-free
• Battery voltage: 24 V
• Battery capacity: 60 Ah
• Battery weight: 15 kg

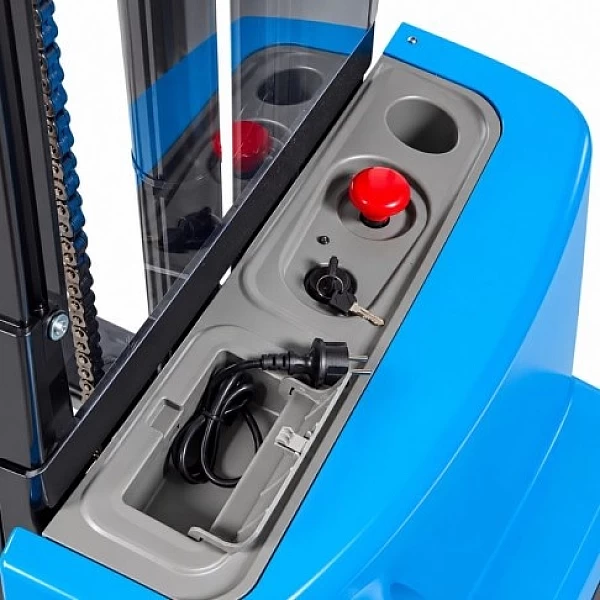

• Charger: built-in
• Charging voltage: 230 V
• Motor control type: direct current (DC)
• Noise level at the operator’s position: less than 75 dB(A)

The HanseLifter Smart-DH1530-P-LI 1.5 metric tons is the right choice for companies that need a reliable, compact electric high-lift truck with a lithium-ion battery, designed for intensive daily use. With a lifting capacity of 1,500 kg, a lifting range of 85–3,000 mm, precise proportional control, and electric drive for both travel and lifting enable more efficient pallet transport, loading, and storage operations. The double lift mast allows for convenient use of taller storage racks, while the multifunctional control handle, integrated charger, and durable polyurethane wheels ensure comfortable, smooth, and long-lasting operation. Lithium-ion technology allows for more flexible battery charging and reduces the need for daily maintenance, making the unit a practical solution for intensive warehouse, manufacturing, and logistics operations.
