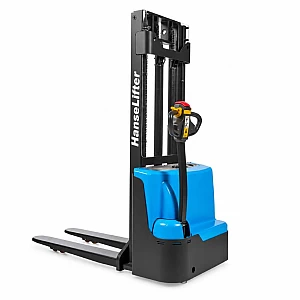

Electric high-lift truck with control handle 1,5 tons HanseLifter Smart-DH1540-P-LI

New

Electric high-lift truck with control handle 1,5 tons HanseLifter Smart-DH1540-P-LI

Based on 0 reviews. - Write a review

SKU: BD71695
SKU:: GE0084393

5,229.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

Electric High-Lift Truck with Control Handle 1,5 tons HanseLifter Smart-DH1540-P-LI

Country of origin: Germany; warranty period: 24 months

HanseLifter Smart-DH1540-P-LI – a professional electric high-lift pallet truck with a lithium-ion battery, designed for efficient pallet handling, transportation, and storage in warehouses, manufacturing facilities, retail locations, and logistics centers. A rated lifting capacity of 1,500 kg and a lifting range of 85–4,000 mm allow for the convenient transport of heavy loads and their stacking on high storage racks. The electric drive for travel and lifting reduces the physical strain on employees, while the proportional hydraulic control system ensures precise, smooth, and even lifting and lowering of the forks. The double-mast design features a robust construction and ensures stable load handling, while the 2,550 mm height in the lowered position allows for planning the truck’s use based on the warehouse aisle clearance. The multifunctional, ergonomic control handle with a digital display simplifies daily operations, while the transparent organic glass safety shield ensures good visibility of the load and the work area. The integrated 24 V / 60 Ah lithium-ion battery ensures a reliable power supply and allows for additional charging during work breaks. The built-in charger allows for convenient charging of the battery from a standard 230 V electrical outlet, while the durable construction, polyurethane wheels, and integrated safety features ensure reliable and efficient daily use.

Features:

Technical Specifications:

Lifting capacity: 1,500 kg
Drive type: electric travel and electric lift
Control type: handle control, walk-behind operator
Travel motor power: 0.75 kW
Lifting motor power: 2 kW
Lifting control: proportional hydraulic system
Load center distance: 500 mm
Load height: 796 mm
Wheelbase: 1210 mm
Lifting range: 85–4,000 mm
Maximum fork lift height: 4,000 mm
Minimum fork height: 85 mm
Fork stroke: 3,915 mm
Free-lift function: none
Mast type: double
Lift mast height in lowered position: 2,550 mm
Fork length: 1,150 mm
Fork dimensions: 70 x 160 x 1,150 mm
Outer fork width: 560 mm
Frame length without forks: 580 mm
Control handle height: 910–1,270 mm
Front wheel size: 210 x 70 mm
Rear wheel size: 80 x 70 mm
Size of additional support wheels: 115 x 55 mm
Wheel material: polyurethane (PU)
Front track width: 550 mm
Rear track width: 390 mm
Clearance at the center of the wheelbase: 30 mm
Turning radius: 1425 mm
Working passage width with an 800 x 1200 mm pallet: 2194 mm
Travel speed with load: 4 km/h
Travel speed without load: 4.5 km/h
Lifting speed with/without load: 102 / 190 mm/s
Lowering speed with load / without load: 135 / 200 mm/s
Maximum gradeability with load: 5%
Maximum gradeability without load: 10%
Braking system: electric
Proportional lifting and lowering function: yes
Soft-lowering function: yes
Digital control display: Yes
Automatic standby mode: Yes
Battery type: lithium-ion (Li-ion), maintenance-free
Battery voltage: 24 V
Battery capacity: 60 Ah
Battery weight: 15 kg
Charger: built-in
Charging voltage: 230 V
Motor control type: direct current (DC)
Noise level at the operator’s position: less than 75 dB(A)

The HanseLifter Smart-DH1540-P-LI 1.5 metric tons is the right choice for companies that need a reliable, designed for high lifting heights and intended for intensive daily use. With a rated lifting capacity of 1,500 kg, a lifting range of 85–4,000 mm, precise proportional control, and electric drive for both travel and lifting enable more efficient pallet transport, loading, and warehousing operations. The double-mast design allows for the use of high storage racks, while the multifunctional control handle, integrated charger, and durable polyurethane wheels ensure comfortable and smooth operation. Lithium-ion technology allows for more flexible battery charging and reduces the need for daily maintenance. This is a practical solution for companies seeking to combine high lifting height, precise load handling, operational efficiency, and a durable design.

Electric pallet lifting, lowering, and transport
A rated lifting capacity of 1,500 kg allows for the lifting and transport of heavy warehouse and industrial loads
A lifting range of 85 to 4,000 mm allows for convenient loading of pallets onto high storage racks
A maximum fork height of 4,000 mm allows for more efficient use of vertical storage space
The electric drive system reduces physical effort when transporting heavy loads
A 2 kW electric lift motor ensures smooth and efficient pallet lifting
The 0.75 kW travel motor enables efficient transport of loads within the warehouse
The proportional hydraulic control system allows for precise adjustment of the fork lifting and lowering speeds
The proportional control valve ensures smooth and controlled load positioning
The soft-lowering function reduces sudden movements and helps protect more delicate loads
Precise lifting control facilitates placing pallets on high storage racks and retrieving them
The patented design of the multifunctional control handle ensures comfortable and intuitive operation
The ergonomic control handle is designed to be operated with either the left or right hand
The multifunctional smart control handle head allows for convenient control of travel, lift, and lower functions

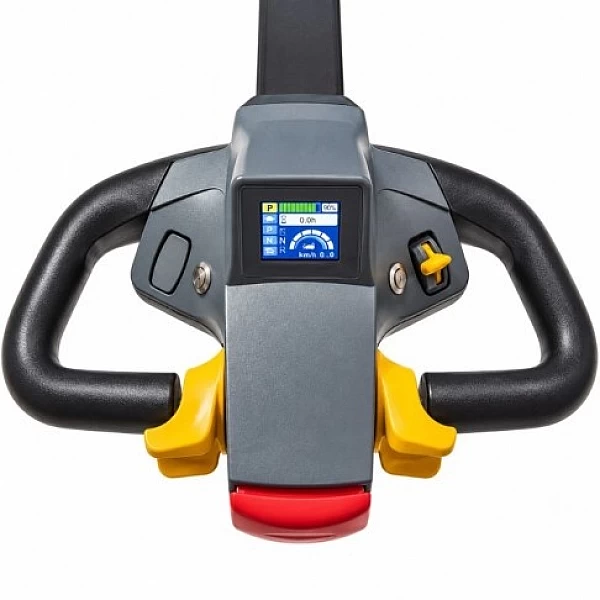

The integrated digital display shows the battery charge level, travel speed, operating hours, and key machine performance information
The double-tube lift mast ensures structural rigidity and stable load handling at greater heights
The lowered lift mast, with a height of 2550 mm, allows the machine to be used indoors where clearance heights are limited
A transparent plexiglass safety shield improves visibility of the load and the work area
The protective structure helps isolate the operator from moving parts of the lifting mechanism
The integrated 24 V / 60 Ah lithium-ion battery ensures an efficient power supply to the electric drive and lifting mechanism
Lithium-ion technology features a long service life, low self-discharge, and no memory effect
The maintenance-free lithium-ion battery simplifies daily equipment operation
The battery can be recharged during work breaks, making it easier to manage intensive warehouse operations

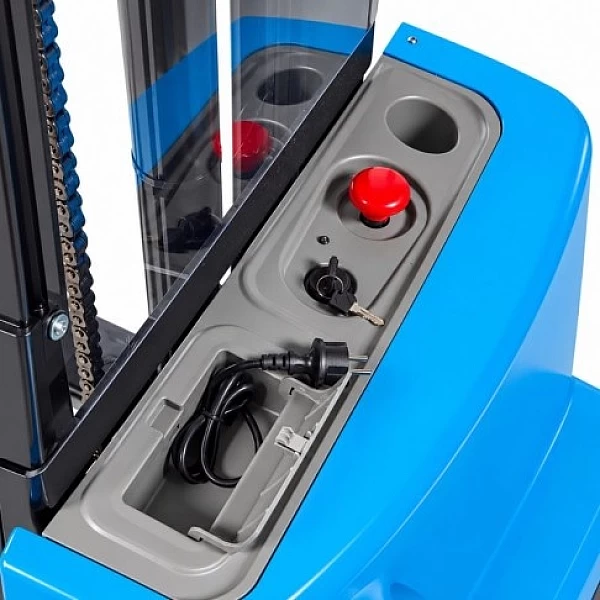

The integrated charger allows for convenient charging of the battery from a standard 230 V electrical outlet
No separate stationary charging station is required to charge the battery
Automatic standby mode helps reduce energy consumption when the unit is not in use
The electric braking system ensures controlled stopping of the truck
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for smooth industrial floors
Tandem axle wheels help distribute the load more evenly and navigate floor joints and minor unevenness more smoothly
Additional support casters increase the cart’s stability when transporting heavy loads
The 1,150 mm fork length and 560 mm outer fork width are designed for transporting standard Euro pallets
The compact chassis design facilitates maneuvering in confined workspaces
A 1,425 mm turning radius allows for convenient operation of the unit in tighter storage areas
A maximum travel speed of 4.5 km/h enables efficient transport of loads over short distances
The truck can handle slopes of up to 5% when loaded and up to 10% when unloaded
The sturdy steel construction is designed for intensive daily use
Compact dimensions of 1,730 mm in length and 820 mm in width facilitate maneuvering the unit between storage racks
Suitable for use in warehouses, manufacturing facilities, retail locations, logistics centers, and pallet loading areas

Length: 1,730 mm
Width: 820 mm
Height: 2,550 mm
Weight: 638 kg

HanseLifter Smart-DH1540-P-LI Electric High-Lift Truck x 1
Integrated 24 V / 60 Ah lithium-ion battery x 1
Integrated battery charger x 1
Multifunctional, ergonomic control handle with digital display x 1
Proportional hydraulic control system x 1
Double lifting boom x 1
Transparent plexiglass safety shield x 1
Set of polyurethane casters x 1
Electric braking system x 1
