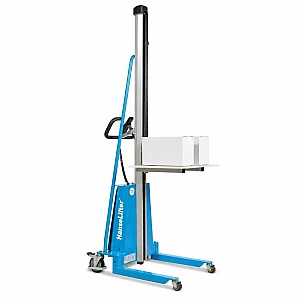

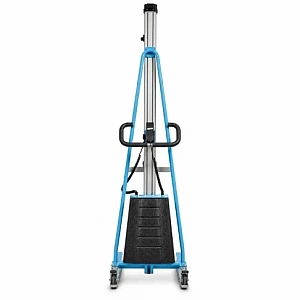

HanseLifter E-MES100-17 100 kg Electric Mini Lift

HanseLifter E-MES100-17 100 kg Electric Mini Lift

Country of origin: Germany; warranty period: 24 months

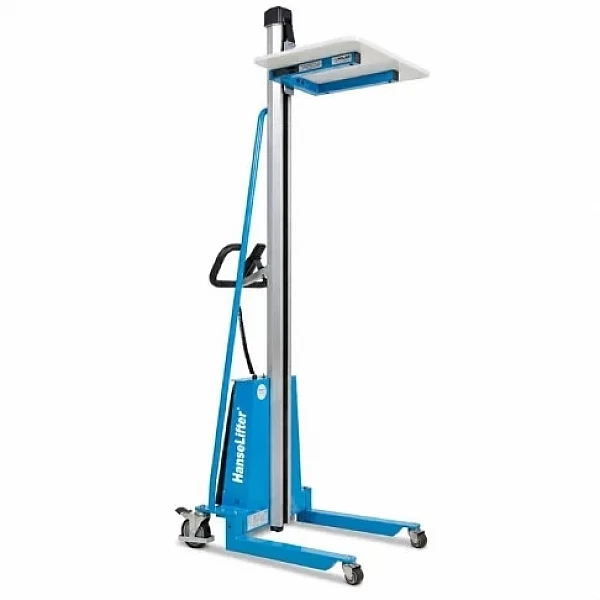

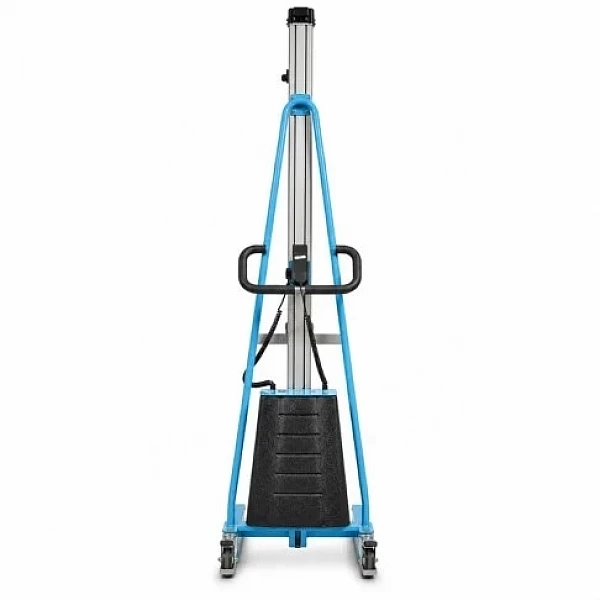

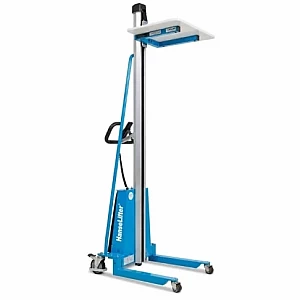

The HanseLifter E-MES100-17 is a professional, compact electric mini lift with a platform, designed for the convenient lifting, transport, and positioning of loads in warehouses, production facilities, workshops, laboratories, retail locations, and logistics centers. The electric lifting mechanism allows for the smooth lifting and lowering of loads weighing up to 100 kg with the push of a button, thereby reducing the physical strain on employees and making daily work easier. A wide lifting height range from 130 to 1,700 mm allows the platform’s position to be precisely adjusted to suit the tasks at hand. The compact design, an easy-to-clean 470 × 600 mm PVC platform, and 360° swivel casters ensure excellent maneuverability even in confined workspaces. The integrated battery and charger allow for convenient use of the device without a constant connection to the power grid.

Technical Specifications:

• Lifting capacity: 100 kg
• Drive type: electric lifting, manual transport
• Lifting mechanism: electric
• Lifting control: electric
• Distance to load center: 230 mm
• Wheelbase: 680 mm
• Lifting height range: 130–1,700 mm
• Maximum lifting height: 1,700 mm
• Minimum platform height: 130 mm
• Platform lift stroke: 1,570 mm

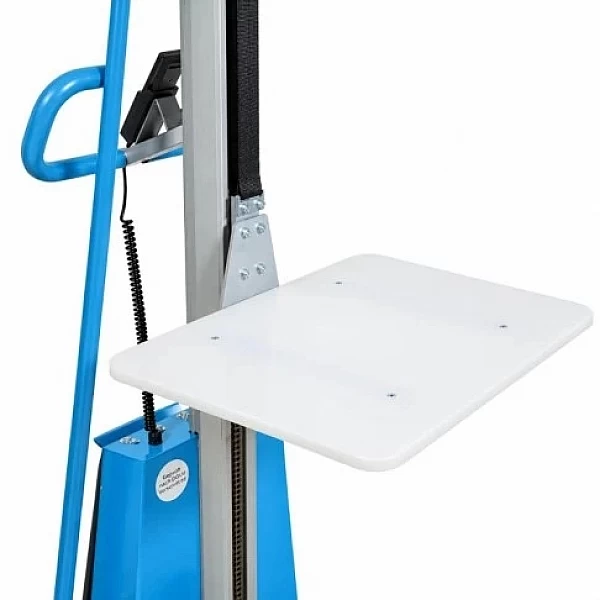

• Platform length: 470 mm
• Platform width: 600 mm
• Platform material: PVC
• Lifting mast height in the lowered position: 1,990 mm
• Lifting mast height (raised): 1,990 mm

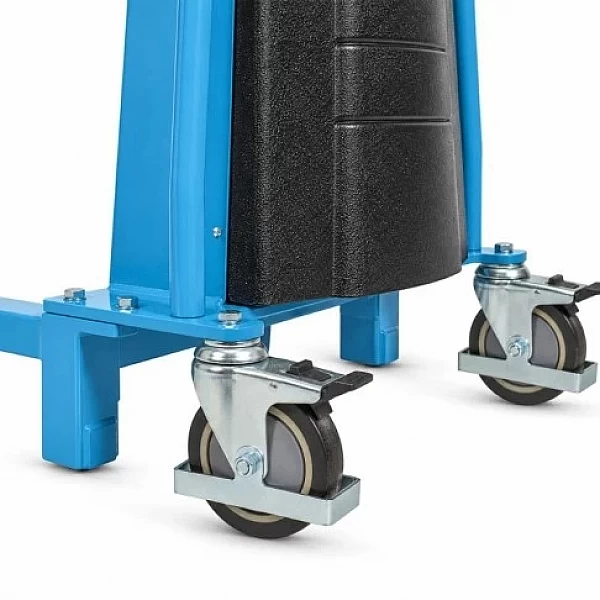

• Front wheel size: 125 × 32 mm
• Rear wheel size: 75 × 32 mm
• Number of wheels, front/rear: 2 / 2
• Front track width: 520 mm
• Rear track width: 510 mm
• Turning radius: 800 mm
• Wheel material: polyurethane (PU)
• Caster rotation angle: 360°
• Braking system: mechanical parking brake
• Battery type: AGM/GEL, maintenance-free
• Number of batteries: 2
• Battery voltage: 2 × 12 V
• Battery capacity: 12 Ah

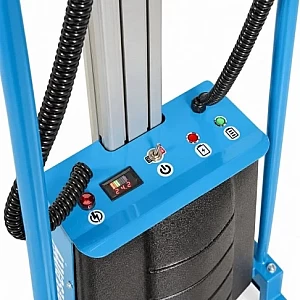

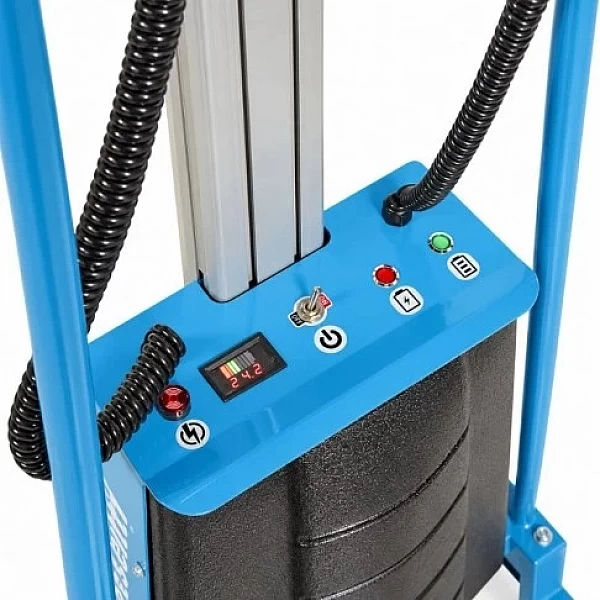

• Charger: built-in
• Charging voltage: 230 V

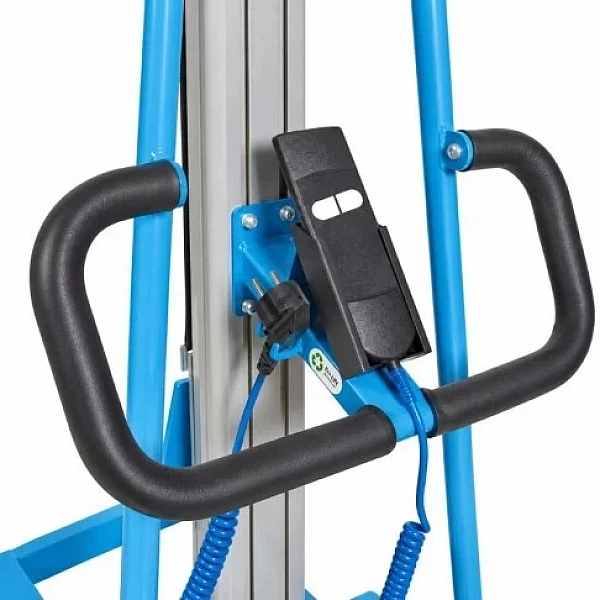

• Controls: electric lifting and lowering, manual transport

The HanseLifter E-MES100-17 100 kg is the right choice for businesses that need a compact, reliable, and ergonomically designed electric mini lift. A wide range of lifting heights, convenient electric controls, an easy-to-clean PVC platform, and 360° swivel casters allow for more efficient cargo lifting, order picking, and transport operations—even in confined spaces. Maintenance-free batteries, an integrated charger, and a sturdy construction ensure convenient, efficient, and long-lasting use in warehousing, retail, manufacturing, and other work environments.
