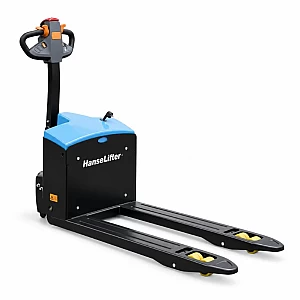

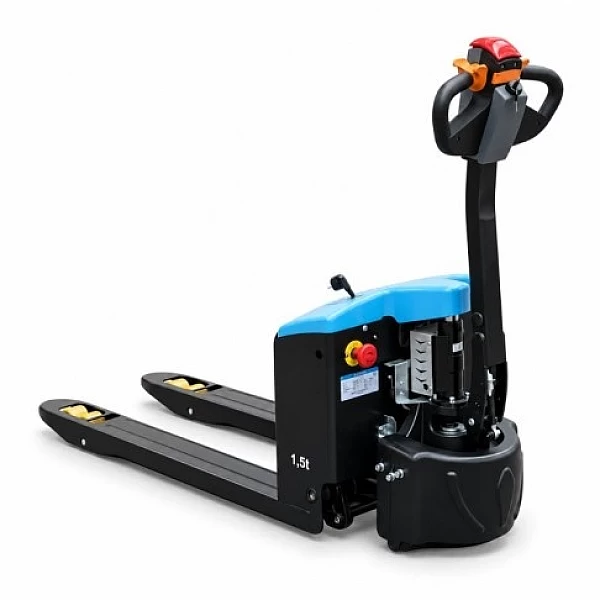

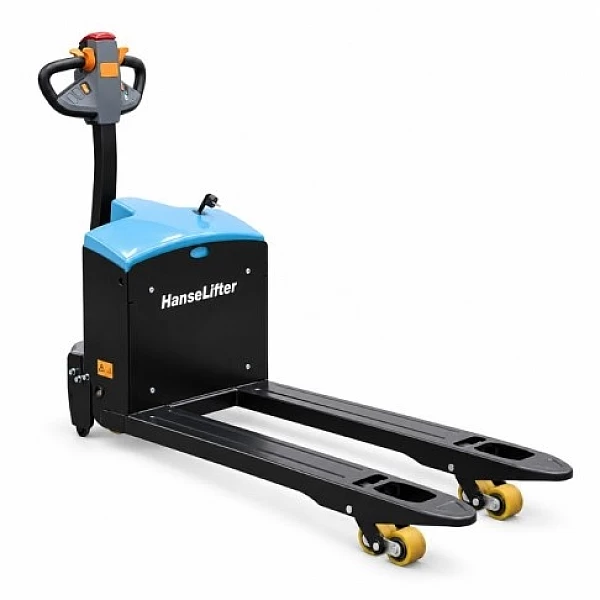

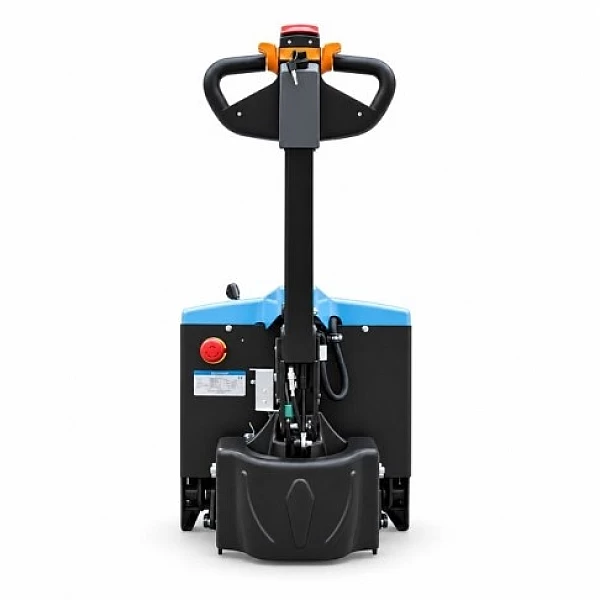

HanseLifter E-BF-WALK-V2 1.5-metric-ton Electric Pallet Truck

HanseLifter E-BF-WALK-V2 1.5-metric-ton Electric Pallet Truck

Country of origin: Germany; warranty period: 24 months

The HanseLifter E-BF-WALK-V2 is a professional electric pallet truck designed for the efficient lifting, transport, and handling of pallets in warehouses, manufacturing facilities, retail locations, logistics centers, and vehicle loading areas. A lifting capacity of 1,500 kg allows for the reliable transport of heavy Euro pallets and pallets of other standards, while the fully electric drive system for both travel and lifting reduces the physical strain on employees and increases productivity. The lifting range from 85 to 200 mm ensures convenient pallet lifting and handling, while the compact design, 560 mm total width, and multifunctional control handle allow for precise maneuvering even in confined workspaces. Two integrated 12 V / 75 Ah AGM-type batteries ensure autonomous operation, while the built-in charger allows the unit to be charged from a standard 230 V electrical outlet. The robust construction, durable polyurethane wheels, and electric braking system ensure smooth, reliable, and efficient daily use.

Technical Specifications:

• Lifting capacity: 1,500 kg
• Drive type: electric travel and electric lifting
• Control type: pedestrian-controlled
• Drive motor power: 0.75 kW
• Lifting motor power: 0.8 kW
• Motor control type: direct current (DC)
• Distance to load center of gravity: 600 mm
• Load distance: 944 mm
• Wheelbase: 1262 mm
• Lifting range: 85–200 mm
• Maximum fork lift height: 200 mm
• Minimum fork height: 85 mm
• Fork stroke: 115 mm
• Fork length: 1,150 mm
• Fork dimensions: 50 × 150 × 1,150 mm
• Outer fork width: 560 mm
• Frame length without forks: 478 mm
• Handle height: 740–1,135 mm
• Front wheel size: 210 × 70 mm
• Rear wheel size: 80 × 60 mm
• Support wheel size: 50 × 30 mm
• Fork wheel configuration: tandem
• Wheel material: polyurethane (PU)
• Front track width: 410 mm
• Rear track width: 535 mm
• Clearance at the center of the wheelbase: 35 mm
• Turning radius: 1425 mm
• Working passage width with an 800 × 1200 mm pallet: 1,881 mm
• Travel speed with load: 4.2 km/h
• Travel speed without load: 4.5 km/h
• Lifting speed with/without load: 32 / 43 mm/s
• Lowering speed with load / without load: 48 / 40 mm/s
• Maximum gradeability with load: 6%
• Maximum gradeability without load: 15%
• Braking system: electric
• Battery type: AGM, maintenance-free
• Number of batteries: 2
• Battery voltage: 2 × 12 V
• Battery capacity: 75 Ah
• Total battery weight: 40 kg
• Charger: built-in
• Charging voltage: 230 V
• Automatic charging shut-off: yes
• Noise level at the operator’s station: no more than 70 dB(A)
• Controls: electric lifting, lowering, and travel

The HanseLifter E-BF-WALK-V2 1.5 metric tons is the right choice for companies that need a reliable, compact electric pallet truck designed for intensive daily use. With a lifting capacity of 1,500 kg, a lifting range of 85–200 mm, electric drive for travel and lifting, and a multifunctional control handle, it enables more efficient pallet loading, unloading, and transport operations. Maintenance-free AGM batteries, an integrated charger, durable polyurethane wheels, and a robust design ensure convenient, efficient, and long-lasting use in warehousing, manufacturing, retail, and logistics.
