Electric pallet truck 1500 kg

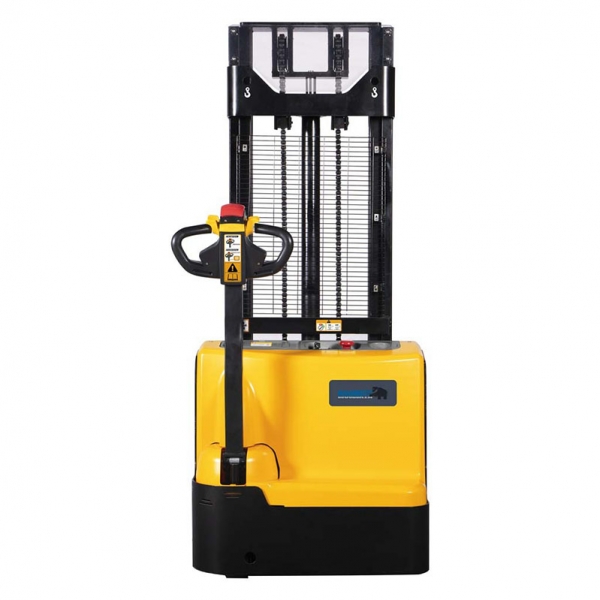

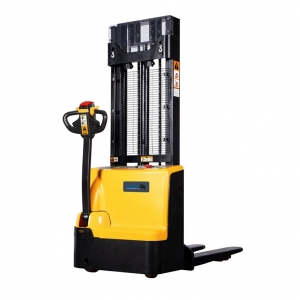

Electric Pallet Stacker 1500 kg Mammuth

Functions:

• Variable speed control ensures smooth and precise lifting/lowering of forks
• Automatic slow descent with soft buffering near the ground for safer handling
• Multifunctional intelligent tiller handle – fast fault diagnosis and shorter service time
• Steering angle over 180° – easier maneuverability
• Different driving modes according to operator experience or work environment
• Safe electromagnetic brakes – secure stopping without risk

Technical specifications:

• Lifting capacity: 1500 kg
• Lifting height range: 90 – 3500 mm
• Motor power: 0.75 kW
• Voltage: 230 V
• Battery voltage: 12 V
• Lifting speed loaded: 0–85 mm/s
• Pump: 2.2 kW
• Fork dimensions (length x width x height): 1150 x 160 x 65 mm
• Fork overall width: 560 mm
• Total width: 820 mm
• Total height: 2220 mm
• Driving speed loaded (max.): 4 km/h
• Total length: 1710 mm
• Driving speed no-load (max.): 4.5 km/h
• Turning radius: 1490 mm
• Lifting speed unloaded: 0–130 mm/s
• Lowering speed loaded: 27–137 mm/s
• Lowering speed unloaded: 22–167 mm/s
• Gradeability loaded / unloaded: 5% / 15%
• Brake type: electromagnetic

Product dimensions:

• Product length: 1760 mm
• Product width: 840 mm
• Product height: 2220 mm
• Product weight: 619.0 kg

Package dimensions:

• Package length: 1760 mm
• Package width: 840 mm
• Package height: 2220 mm
• Package weight: 619.0 kg
