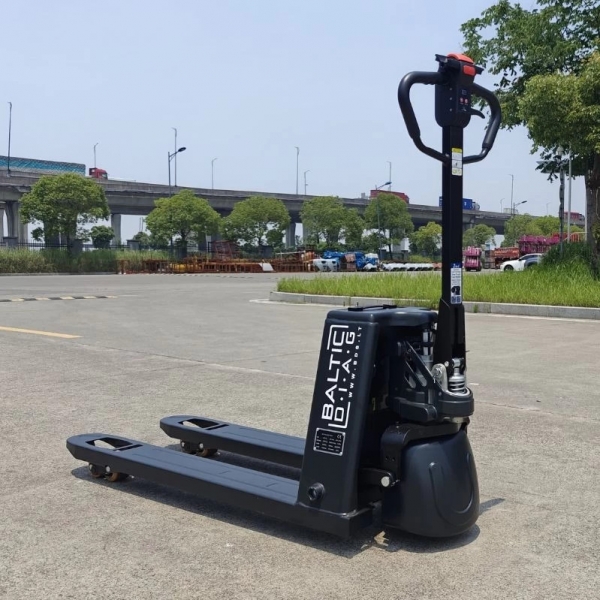

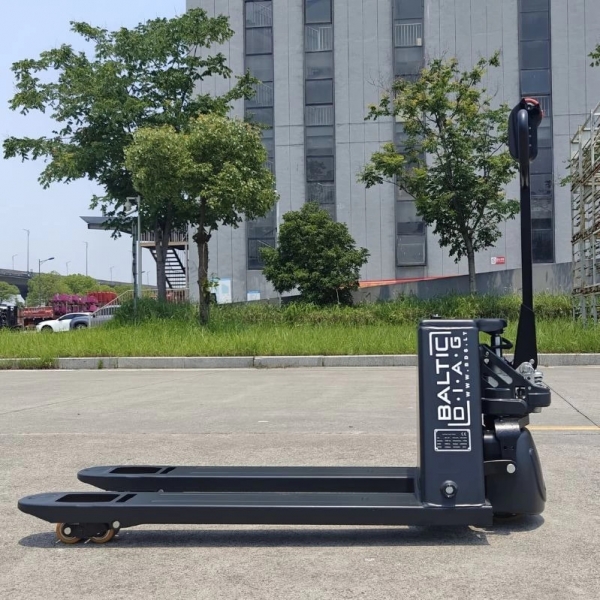

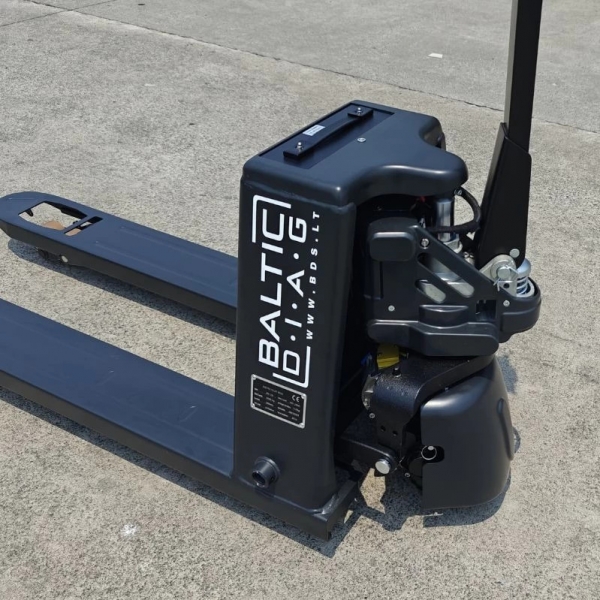

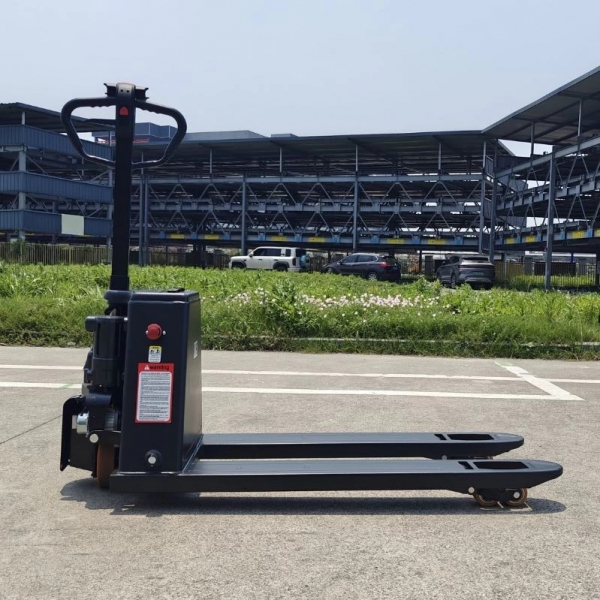

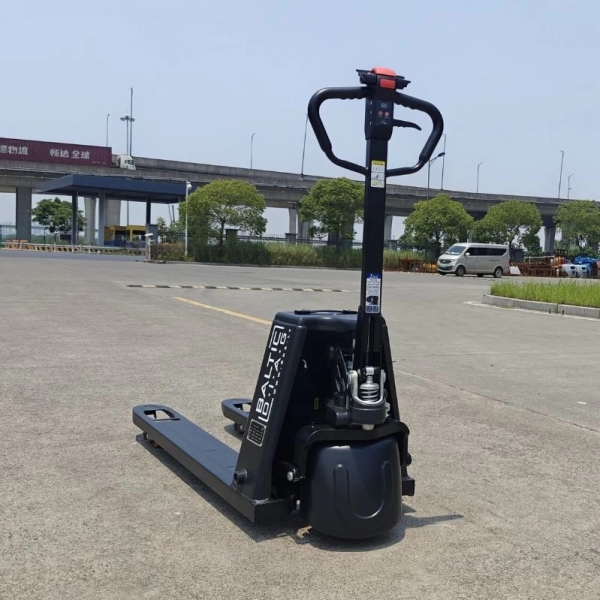

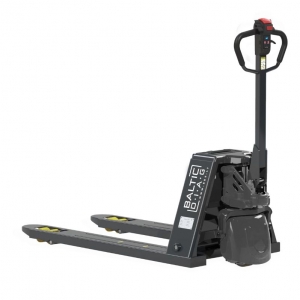

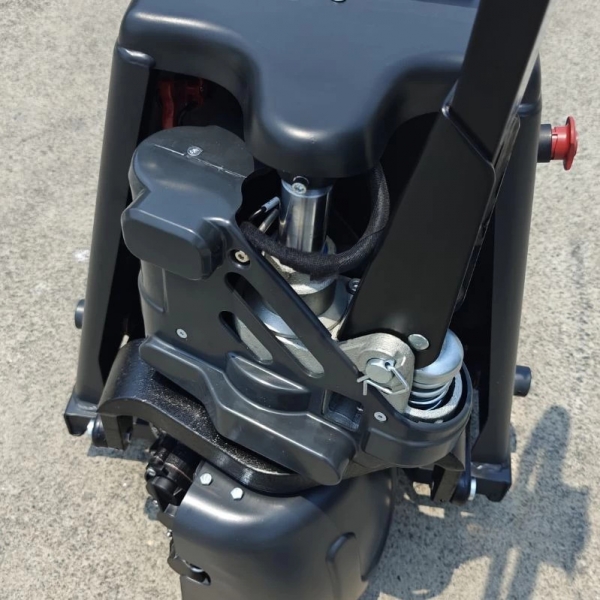

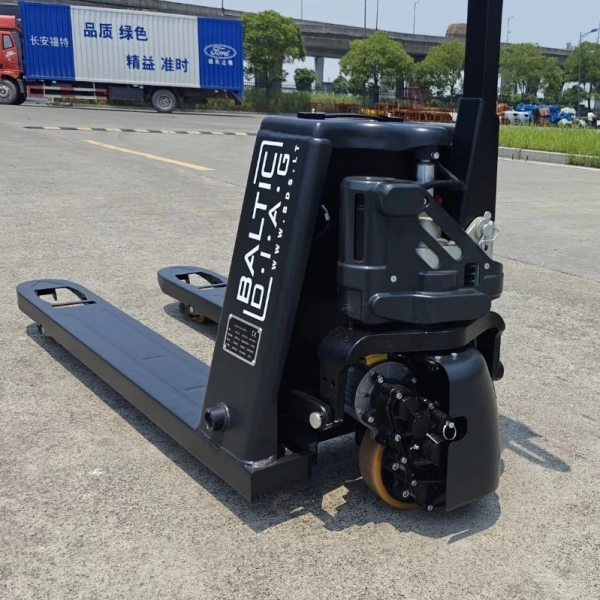

BD-15i 1,500 kg Electric Pallet Truck

BD-15i 1,500 kg Electric Pallet Truck

Country of origin: China; warranty period: 24 months

The BD-15i electric pallet truck is designed for the daily transport of palletized cargo in warehouses, retail locations, manufacturing facilities, logistics centers, and workshops. With a 1,500 kg lifting capacity and electric drive and lifting, it reduces the physical strain on workers and speeds up cargo handling operations. Its compact design, small turning radius, and the option to choose between electric and manual modes make it easy to work comfortably in both confined and more open work areas.

Technical Specifications:

• Lifting capacity: 1,500 kg
• Load center: 600 mm
• Drive mode: electric and manual
• Lifting mode: electric and manual
• Minimum fork height: 80 mm
• Maximum fork lift height: 200 mm
• Fork dimensions: 1150 × 160 × 52 mm
• Total fork width: 540 mm
• Drive motor power: 0.75 kW
• Lifting motor power: 0.65 kW
• Battery voltage: 48 V
• Battery capacity: 10 Ah
• Battery type: LiFePO4
• Charger specifications: 48 V / 3 A
• Travel speed with load: up to 4.2 km/h
• Travel speed without load: up to 4.5 km/h
• Maximum gradeability with load: 8%
• Maximum gradeability without load: 20%
• Turning radius: 1352 mm
• Wheel material: polyurethane
• Steering wheel diameter: 180 mm
• Load wheel diameter: 75 mm
• Service brake type: electromagnetic
• Chassis height from the floor: 27 mm

The BD-15i 1,500 kg electric pallet truck is a practical solution for companies that need a compact and efficient device for regular cargo handling. Electric and manual operating modes, a LiFePO4 battery, a brushless motor, and ergonomic controls allow the truck to be better adapted to different working conditions and help reduce downtime in daily operations.
