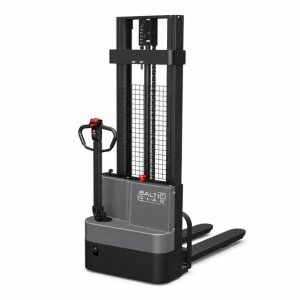

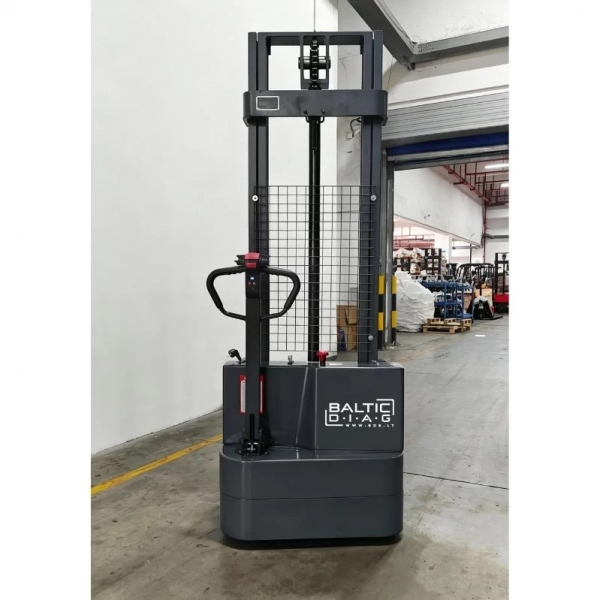

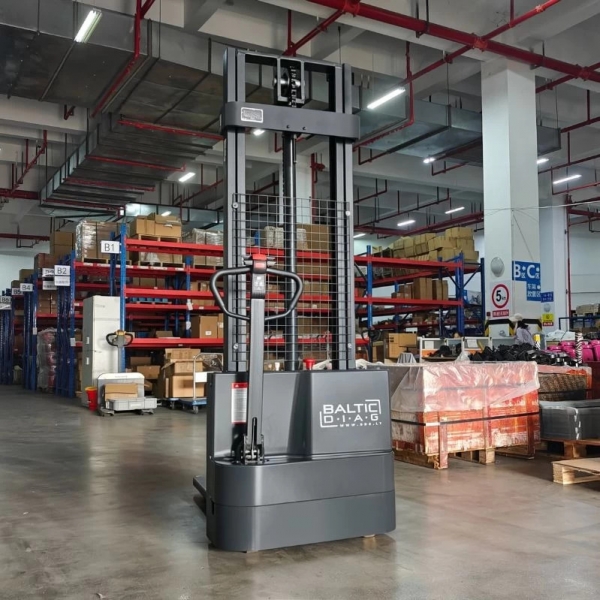

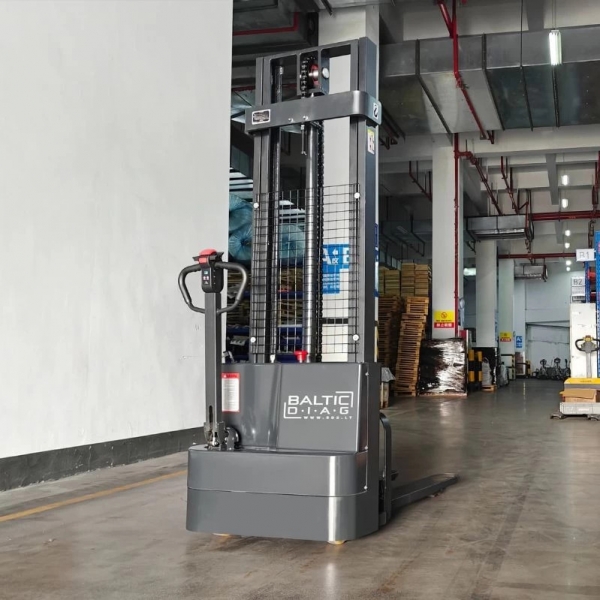

1,500 kg Electric Pallet Truck BD-ES15i

Electric pallet truck 1500 kg BD-ES15i

Country of origin: China; warranty period: 24 months

The BD-ES15i electric pallet truck is designed for lifting and transporting palletized loads in warehouses, manufacturing facilities, logistics centers, retail locations, and other workplaces. With a lifting capacity of 1,500 kg and a lifting height of up to 3,500 mm, it allows for efficient handling of storage racks, loading of vehicles, and moving cargo between different work areas. Electric travel and lifting help reduce the physical strain on the operator, while the LiFePO4 battery and integrated charger ensure convenient daily use.

Technical Specifications:

• Lifting capacity: 1,500 kg
• Load center: 500 mm
• Lifting height: up to 3,500 mm
• Minimum fork height: 85 mm
• Fork dimensions: 1,150 × 160 × 65 mm
• Overall fork width: 560 mm
• Overall width of the cart: 800 mm
• Overall length: 1,735 mm
• Overall height with forks lowered: 2240 mm
• Overall height with forks raised to maximum height: 3,860 mm
• Drive motor power: 0.75 kW
• Lifting motor power: 2.2 kW
• Battery voltage: 48 V
• Battery capacity: 30 Ah
• Battery type: LiFePO4
• Travel speed with load: up to 4 km/h
• Travel speed without load: up to 5 km/h
• Lifting speed with load: 100 mm/s
• Lifting speed without load: 200 mm/s
• Lowering speed with load: 120 mm/s
• Lowering speed without load: 100 mm/s
• Gradeability with load: 5%
• Gradeability without load: 8%
• Turning radius: 1458 mm
• Wheel material: polyurethane
• Brake type: regenerative

The BD-ES15i 1,500 kg electric pallet truck is a practical solution for companies that need reliable and efficient equipment for intensive daily material handling. Electric drive, high lift height, a LiFePO4 battery, an integrated charger, and safety features help streamline warehouse operations and reduce the physical workload on employees.
