Electric powder coating oven BD-321316

Electric Powder Coating Oven BD-321316

Country of origin: China, warranty period – 24 months

OVEN SIZE AND OTHER PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER REQUIREMENTS

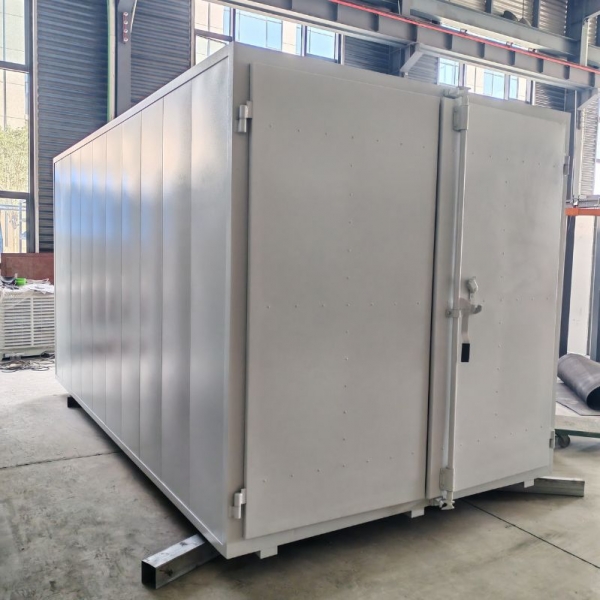

A spacious and efficiently heat-distributing gas powder coating oven with a RIELLO burner, designed for curing medium and large parts in production facilities and workshops. The 120 mm insulation (100 kg/m³) ensures stable temperature maintenance and lower energy consumption, while the heating system quickly reaches 200 °C in 15–30 minutes. The included trolley makes loading and unloading workpieces easier, and the oven size and other parameters can be customized to customer requirements.

Features:

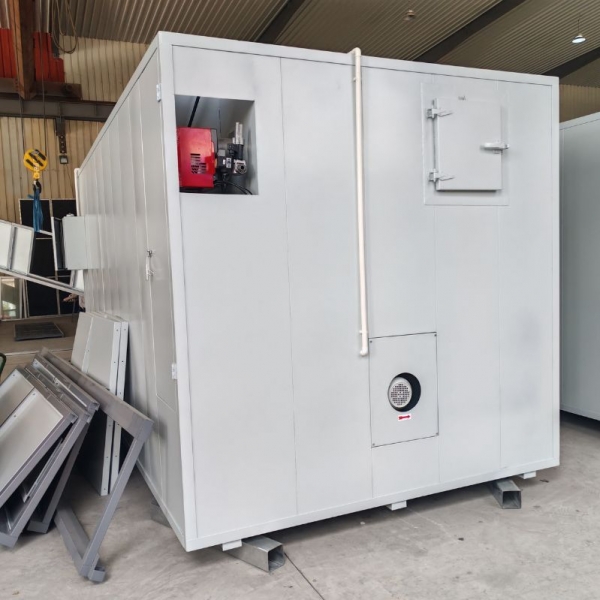

• Gas heating with RIELLO burner – reliable ignition and stable operation
• Rapid heat-up to 200 °C in 15–30 min
• Thick 120 mm insulation (100 kg/m³) – for energy efficiency and temperature stability

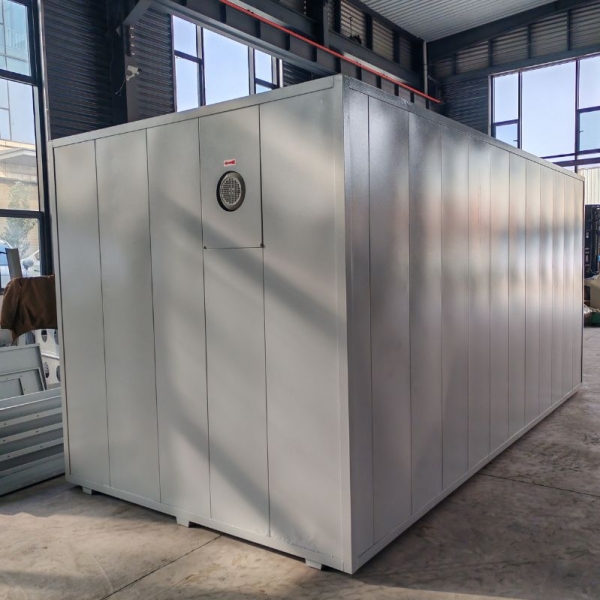

• Fan for uniform heat distribution throughout the chamber

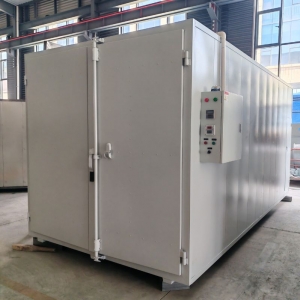

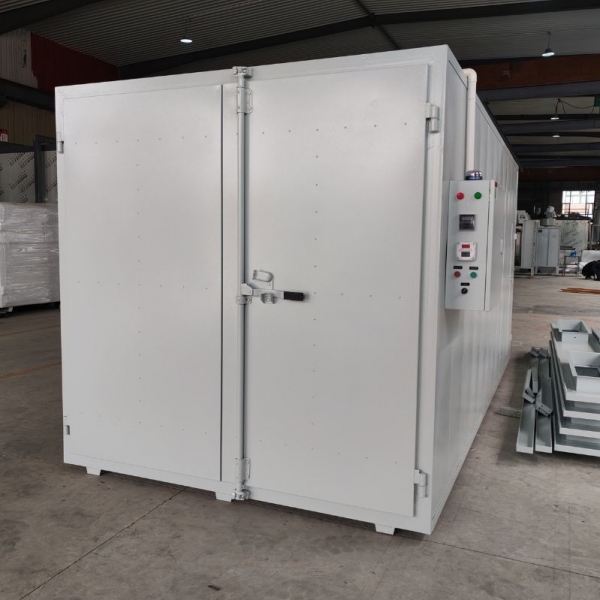

• Control panel for precise process control

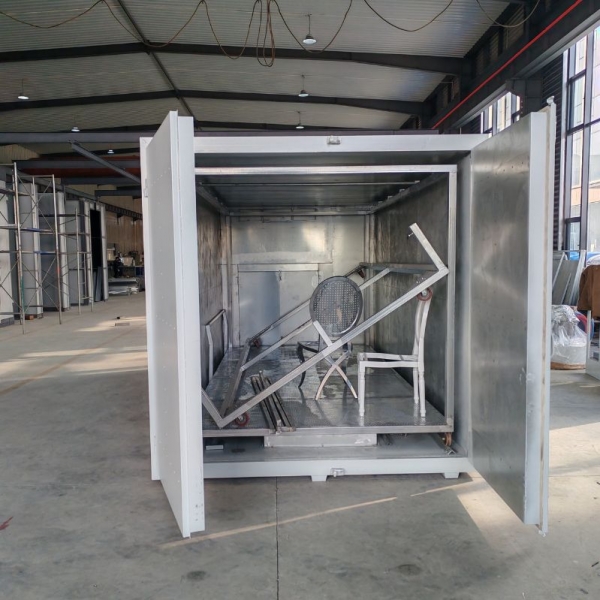

• Convenient trolley for moving workpieces inside the oven
• Option to customize the oven size and other parameters as needed

Technical specifications:

• Dimensions: 4000 × 1800 × 2000 mm
• Heating source: gas (RIELLO)
• Heating capacity: 100,000 Cal
• Fan power: 2.2 kW
• Insulation: 120 mm, 100 kg/m³
• Heat-up: 200 °C (15–30 min)
• Maximum temperature: 250 °C

Scope of supply:

• Control panel
• Fan
• Burner
• Trolley

This JH-401820G oven ensures reliable, uniform heating and economical operation, making it ideal for consistent everyday powder coating processes in both industrial and workshop settings.
