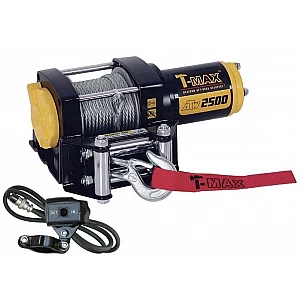

Electric Pulling Winch, 12 V, 1134 kg

Electric winch 12V, 1134 kg with steel cable

Country of origin: China; warranty period: 24 months

The 12 V electric winch is designed for towing vehicles, machinery, and other loads when a compact, battery-powered towing system is required. With a rated pulling capacity of 1,134 kg and a 15-meter-long metal cable, the winch can be used for a variety of auxiliary towing tasks, while the 153:1 gear ratio ensures efficient transmission of motor power. The compact design is suitable for installation in locations where small dimensions and a mobile 12 V power supply are important.

Technical Specifications:

• Rated pulling capacity per rope line: 2,500 lbs / 1,134 kg
• Motor voltage: 12 V DC
• Motor power: 0.9 HP
• Motor type: DC, permanent magnet
• Gearbox ratio: 153:1
• Control cord length: 3.7 m
• Clutch: manual, rotates 90°
• Automatic drum brake: none
• Drum diameter: 44 mm
• Drum length: 74 mm
• Metal cable diameter: 4.5 mm
• Metal cable length: 15 m
• Recommended battery: at least 12 Ah

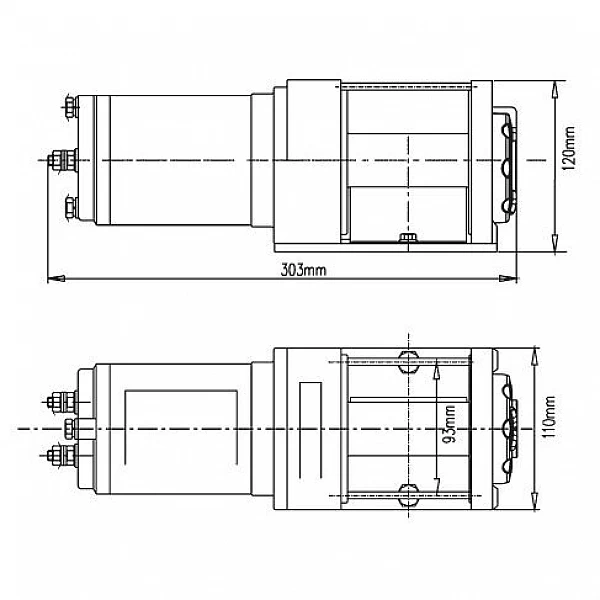

• Distance between mounting bolts: 93 mm
• Pulling force in the first cable layer: 1,134 kg
• Pulling force in the 2nd cable layer: 907 kg
• Pulling force in the 3rd layer of the cable: 750 kg
• Pulling force in the 4th rope layer: 650 kg
• Pulling force in the 5th rope layer: 580 kg
• Pulling force in the 6th rope layer: 508 kg
• Maximum rope speed without load: 6 m/min.
• Rope speed with a 1,134 kg load: 2.6 m/min.
• Current consumption without load: 18 A
• Current consumption with a 1,134 kg load: 140 A

The 12 V, 1,134 kg electric hoist is a practical choice when a compact, vehicle-battery-powered lifting system is required. A 1,134 kg pulling capacity, a 15 m metal cable, a 153:1 gear ratio, and wired control provide reliability and flexibility for a variety of auxiliary towing tasks
