Electro-hydraulic single column lift ATH-Single Lift 12PL

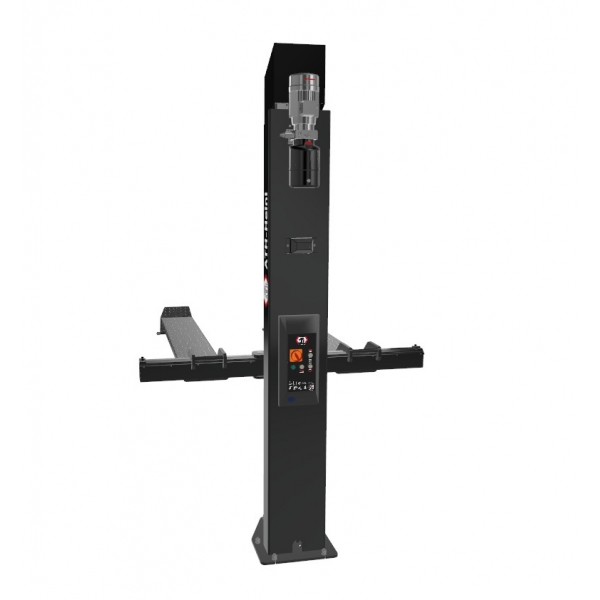

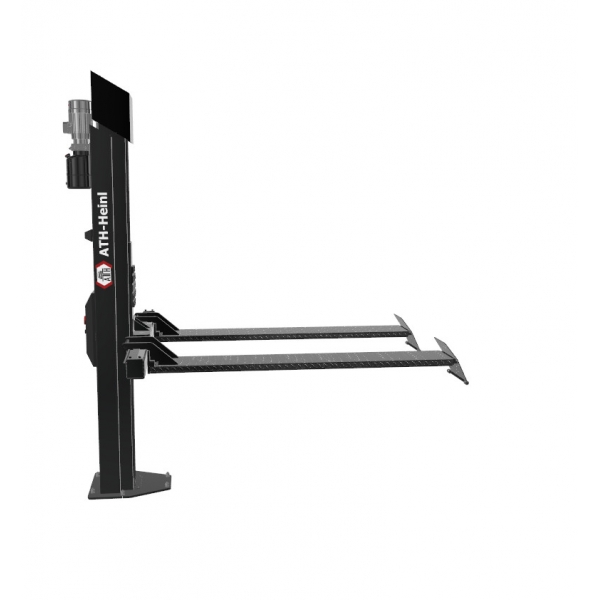

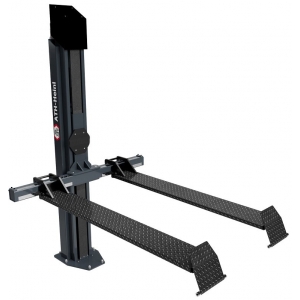

ATH-Single Lift 12PL electro-hydraulic single column lift

Country of origin: Germany, 24 months warranty period

The ATH-Single Lift 12PL electro-hydraulic single column lift is designed for compact, convenient and safe lifting of smaller vehicles in workshops. The reinforced column and rail design ensures stable operation and the lifting capacity of 1200 kg allows the lift to be used for the repair of ATVs, lawn tractors, small tractors and similar machinery. The integrated quick-lift unit, load-dependent lowering function and automatic electromagnetic release of the safety catches help to make work smoother and safer in everyday service environments.

Technical specifications:

• Lifting capacity: 1200 kg

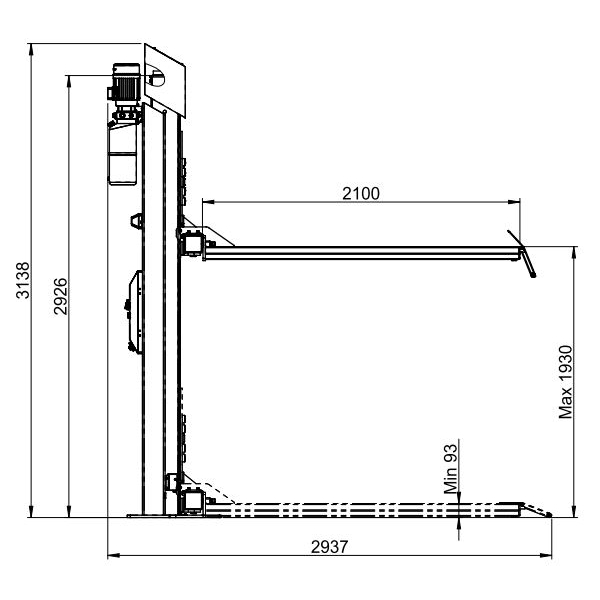

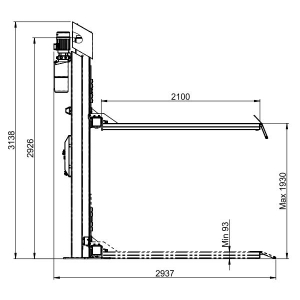

• Maximum lifting height: 1930 mm
• Total height: 3138 mm

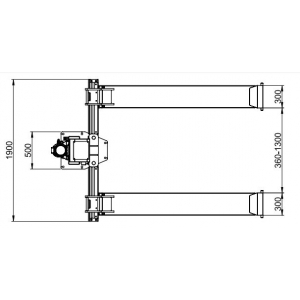

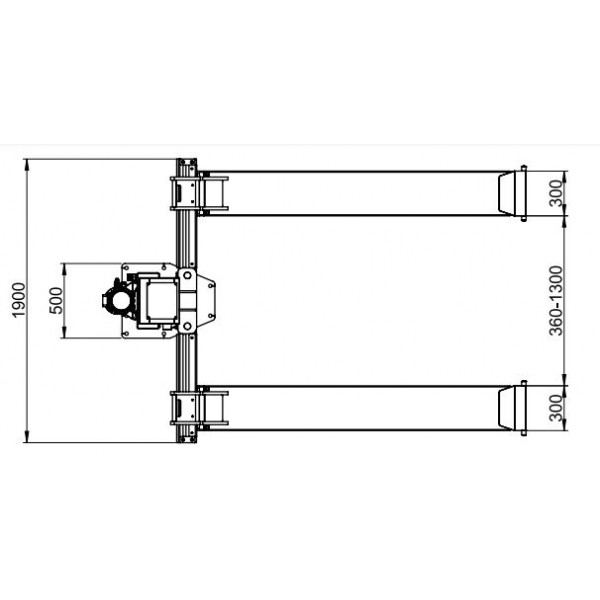

• Overall width: 1900 mm
• Overall length: 2937 mm
• Motor power: 3 kW
• Lifting and lowering time: approx. 20 sec.
• Power supply: 3 x 400 V / C16A
• Required concrete strength: minimum C25/30
• Recommended concrete base area: 2500 x 200 x 200 mm

The ATH-Single Lift 12PL electro-hydraulic single column hoist is a practical solution for workshops requiring a reliable, safe and compact lifting device for smaller vehicles and special machinery. The robust construction, integrated safety features and user-friendly operation allow for efficient organisation of repair work in everyday workshop activities.
