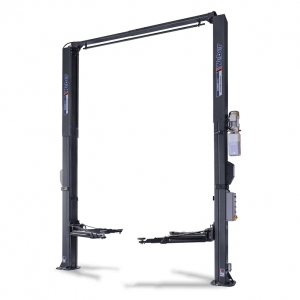

Electrohydraulic two-post lift Weber Expert Series SJC-10XL - 4.5

Electrohydraulic two-post lift Weber Expert Series SJC-10XL - 4.5

Country of origin: Germany, warranty period – 24 months

High-quality electrohydraulic two-post lift designed for lifting passenger cars and vans. Fully automatic control allows lifting and lowering vehicles with a single button press. Robust construction, low wear, and numerous safety systems ensure safe and efficient workshop operation.

Features:

• Fully automatic lifting and lowering with a single button press
• Asymmetric 2-stage lifting arms for various vehicle sizes
• Rubber door guards and curtains on the columns
• Rubber pads with dual height adjustment
• Set of extensions (4 pcs of 100 mm each)
• Vertical hydraulic cylinders with internal sealing system
• Overload valve, hose break protection, and mechanical locks
• Electromechanically controlled safety locks

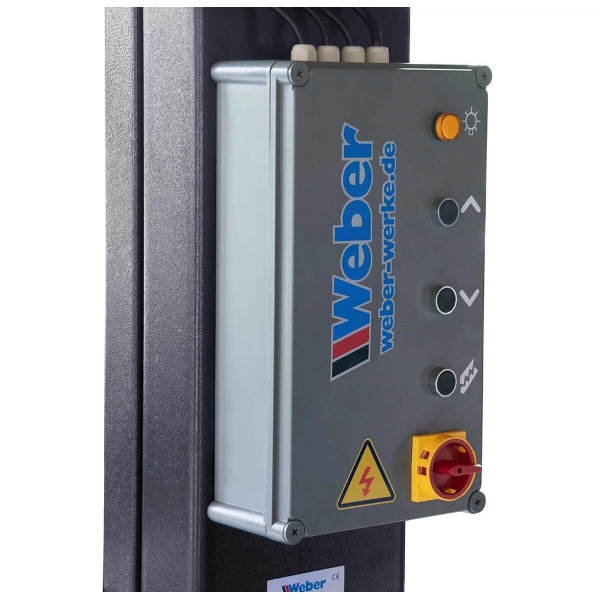

• Easy operation with 24V safety system
• Most accessories integrated into the design

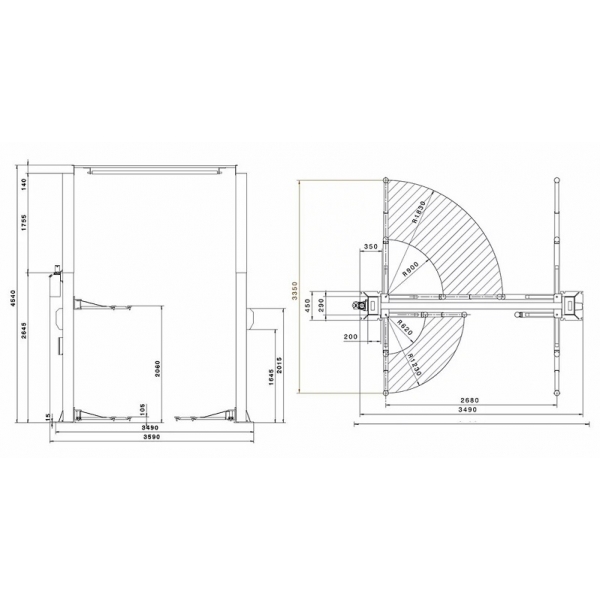

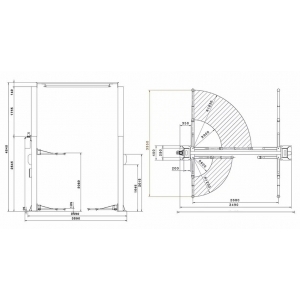

Technical specifications:

• Lifting capacity: 4500 kg
• Maximum lifting height: 2060 mm
• Minimum height (pads): 105 mm
• Column height: 4530 mm
• Distance between columns: 2860 mm
• Drive-through width: 2540 mm
• Overall width: 3590 mm
• Front (short) arm length: 620 – 1230 mm
• Front (long) arm length: 900 – 1830 mm
• Required ceiling height: 4800 mm
• Weight: 720 kg

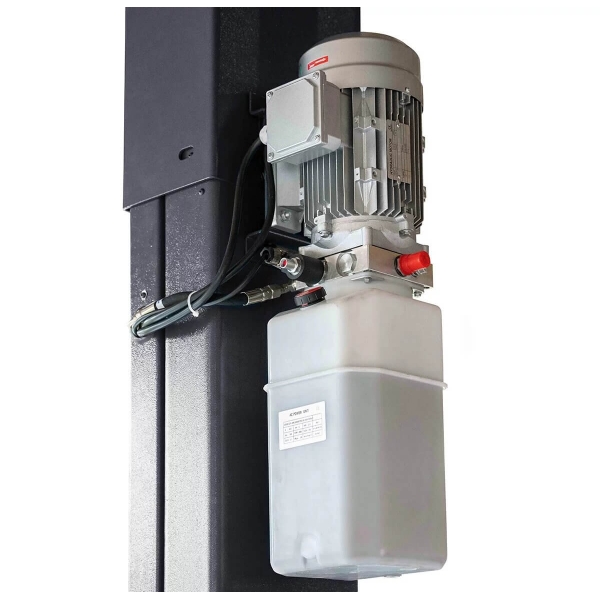

• Motor power: 2.2 kW
• Lifting time: 50 s
• Power supply: 400V / 3 phases / 50Hz
