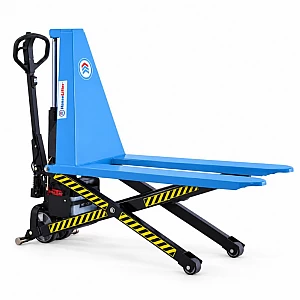

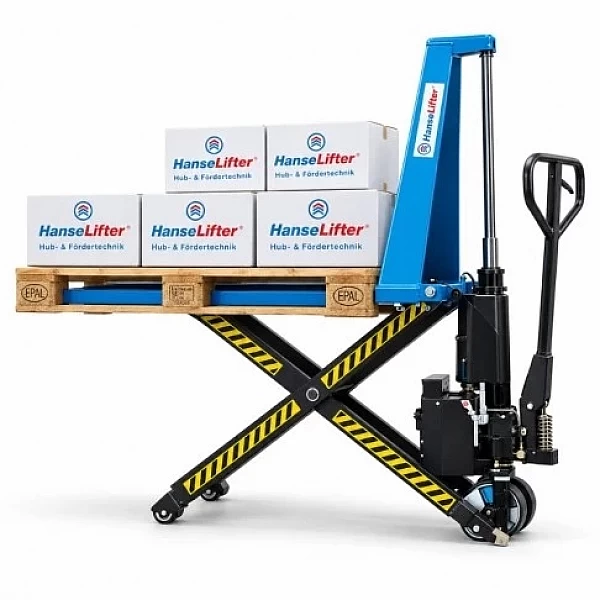

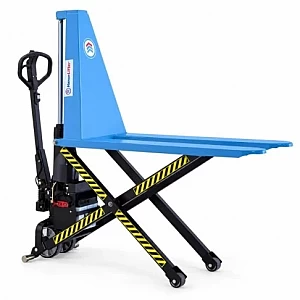

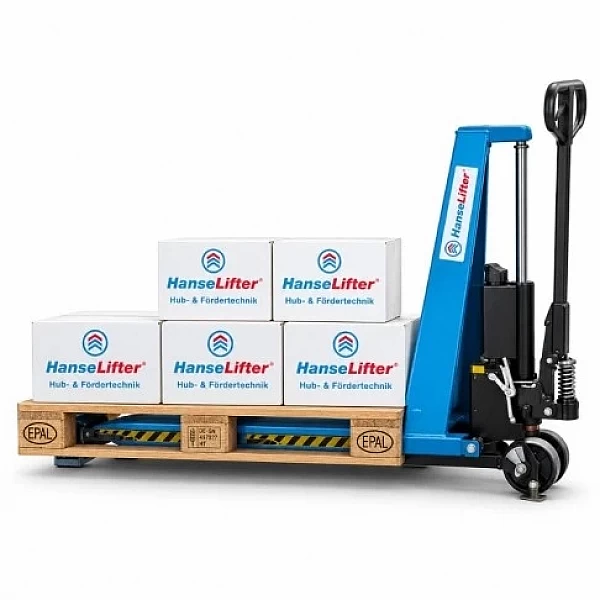

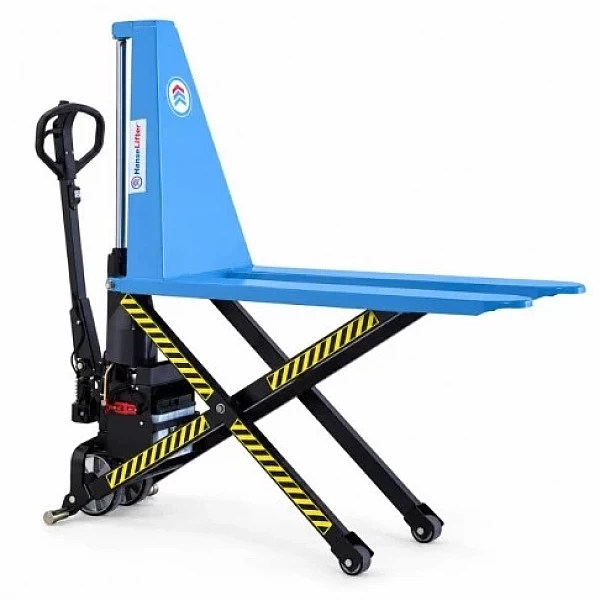

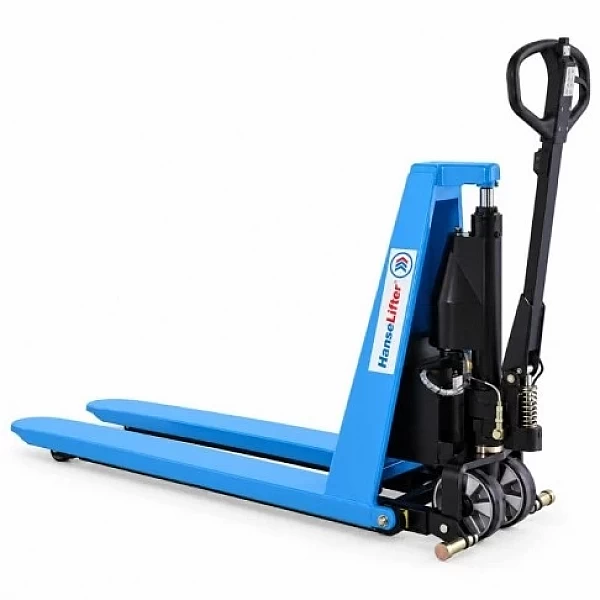

HanseLifter E-JF 1-metric-ton Electrohydraulic Scissor Lift

HanseLifter E-JF 1-metric-ton Electrohydraulic Scissor Lift

Country of origin: Germany; warranty period: 24 months

The HanseLifter E-JF is a professional electro-hydraulic scissor lift designed for convenient pallet lifting, transport, and handling at an ergonomic height in warehouses, production facilities, assembly lines, and logistics centers. The electric lifting mechanism allows loads weighing up to 1,000 kg to be lifted with the push of a button, thereby reducing the physical strain on employees and increasing work efficiency. The maximum lifting height of 800 mm allows for comfortable order picking, packing, and assembly tasks. Integrated stabilizing supports ensure the structure’s stability when the load is lifted, while the ergonomic control handle and durable polyurethane casters facilitate daily use of the equipment. The integrated battery and charger allow for convenient operation of the unit without a constant connection to the power grid.

Technical Specifications:

• Lifting capacity: 1,000 kg
• Drive type: manual
• Lifting type: electrohydraulic
• Lifting motor power: 0.6 kW
• Distance to load center: 600 mm
• Wheelbase: 1,310 mm
• Fork length: 1,170 mm
• Fork dimensions: 45 × 160 × 1,170 mm
• Outer fork width: 540 mm
• Maximum fork lift height: 800 mm
• Minimum fork height: 85 mm
• Fork lift stroke: 715 mm
• Maximum maneuvering height: 200 mm
• Control handle height: 680–1254 mm
• Frame length without forks: 492 mm
• Front wheel size: 180 × 50 mm
• Rear wheel size: 75 × 50 mm
• Number of wheels, front/rear: 2 / 4
• Front track width: 155 mm
• Rear track width: 440 mm
• Clearance at the center of the wheelbase: 18 mm
• Turning radius: 1,564 mm
• Lowering speed with/without load: 54 / 63 mm/s
• Wheel material: polyurethane (PU)
• Battery type: AGM/GEL, maintenance-free
• Battery voltage: 12 V
• Battery capacity: 52 Ah
• Charger: built-in
• Control: electric lifting, manual transport

The HanseLifter E-JF 1 metric ton is the right choice for companies that need a reliable, ergonomic electro-hydraulic scissor lift designed for intensive daily use. The electric lifting mechanism, high lifting capacity, adjustable lifting height, and integrated stabilizing legs allow for more efficient organization of loading, assembly, and production processes. The robust construction, durable polyurethane casters, and user-friendly controls ensure smooth, efficient, and long-lasting operation in warehouses, production facilities, and logistics centers.
