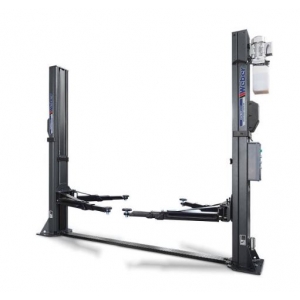

Electrohydraulic two-post lift Weber Expert SJC-10XL

Electrohydraulic two-post lift Weber Expert SJC-10XL

Country of origin: Germany, warranty period – 24 months

Professional two-post electrohydraulic lift suitable for both passenger cars and vans. Fully automatic lifting and lowering at the push of a button, asymmetrical three-stage lifting arms allow convenient servicing of different vehicle sizes. The lift comes with protective rubber door guards, column interior protection curtains, and additional height extensions.

Functions:

• Fully automatic lifting and lowering with one button press
• Double telescopic short arms and three-stage long arms
• Protective rubber door guards on columns
• Curtains inside columns for protection against contamination
• Asymmetrical arms for convenient door access
• Height-adjustable lifting pads
• Includes a set of 4 pcs of 100 mm extensions
• Low-maintenance mechanism

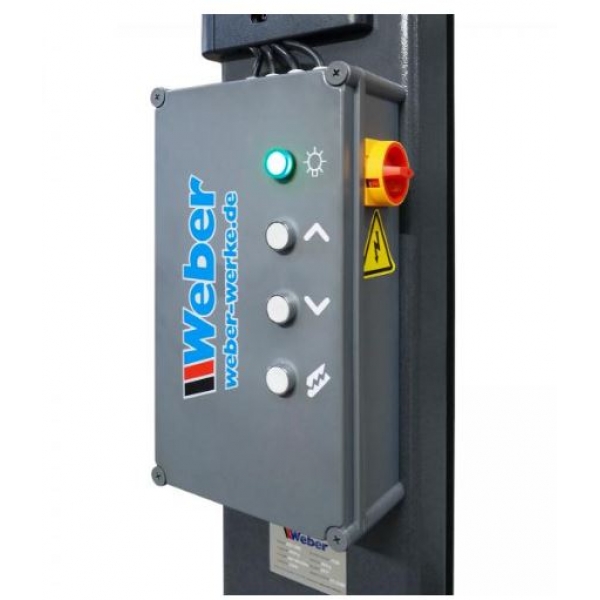

• 24V control system

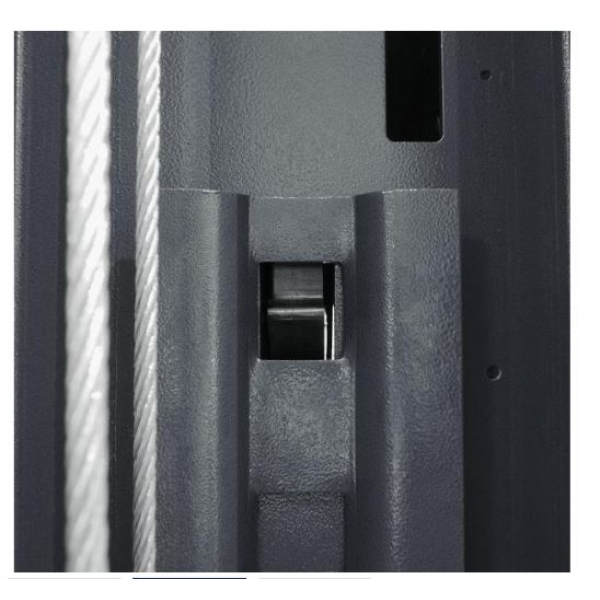

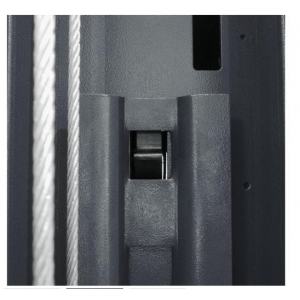

• Automatic conical arm locking mechanism with manual release option
• Internal cylinder seals for external damage protection
• Overload valve, hose burst protection, electromagnetic locking
• Structure tested with 115% dynamic and 150% static load

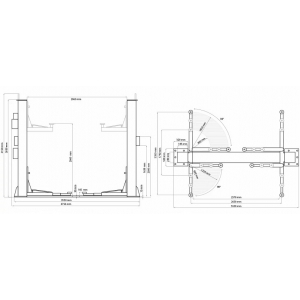

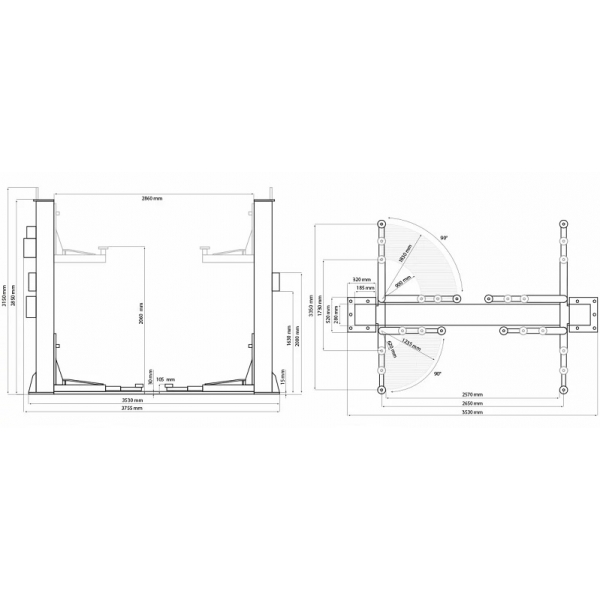

Technical specifications:

• Lifting capacity: 4500 kg
• Maximum lifting height: 2060 mm
• Minimum height: 105 mm
• Drive-over height: 30 mm
• Column height: 2850 mm
• Distance between columns: 2860 mm
• Drive-through width: 2570 mm
• Total width: 3755 mm
• Long arm length: 900 – 1830 mm (3 stages)
• Short arm length: 620 – 1235 mm
• Minimum required ceiling height: 3150 mm
• Motor power: 2.2 kW
• Lifting time: 50 s
• Weight: 660 kg
• Color: RAL7016 / RAL9017
• Power supply: 400V / 3Ph / 50Hz
