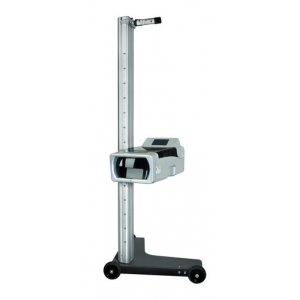

Electronic headlamp test stand Tecnolux Matrix 12799

Electronic headlamp test stand Tecnolux Matrix 12799

Manufacturer - Italy;

Electronic headlamp test stand with built-in camera to fully inspect and analyze all headlamps installed in the vehicle.

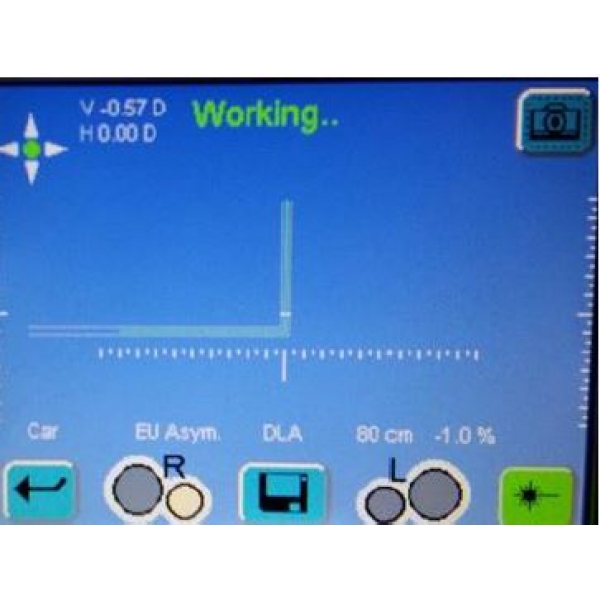

Digital display for all lights (including Matrix)

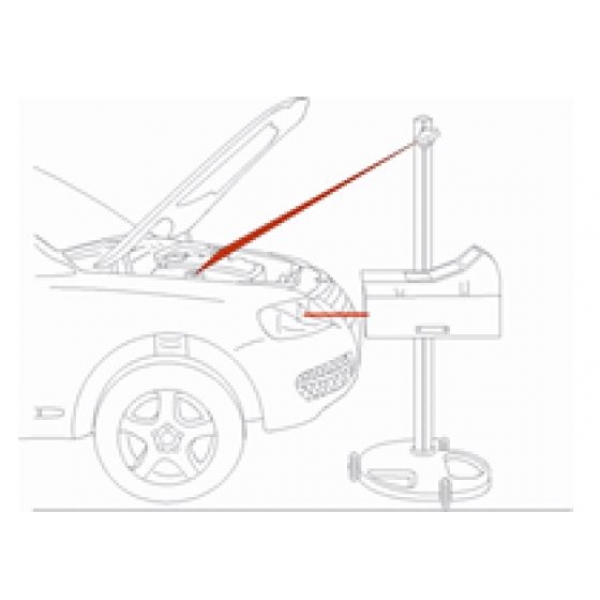

2 lasers to quickly set the adjustment point

Digital luxury meter

Video analysis is "good" or "bad" - so it's very convenient to work with

Features:

The aluminum housing is a coordinating balancing system: the operator can move the optical control box in both directions with a gentle touch

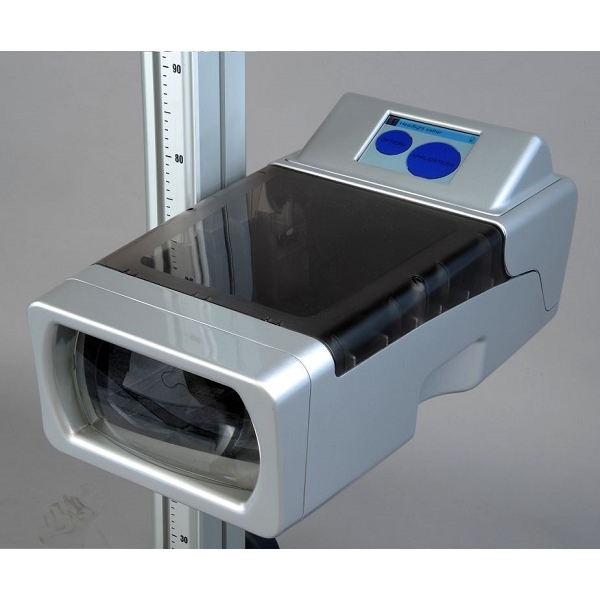

The optical box contains a pure glass lens with a diameter of 230 mm: the design specifications provide for the control of the deviation of the light mechanical position by 1 cm / 10 meters

The optical box has both an RS232Port and a USB port

Aluminum and stainless steel body with three height-adjustable castors for easy work on any base

Applicability: halogen, xenon, LED, low beam, high beam, fog light

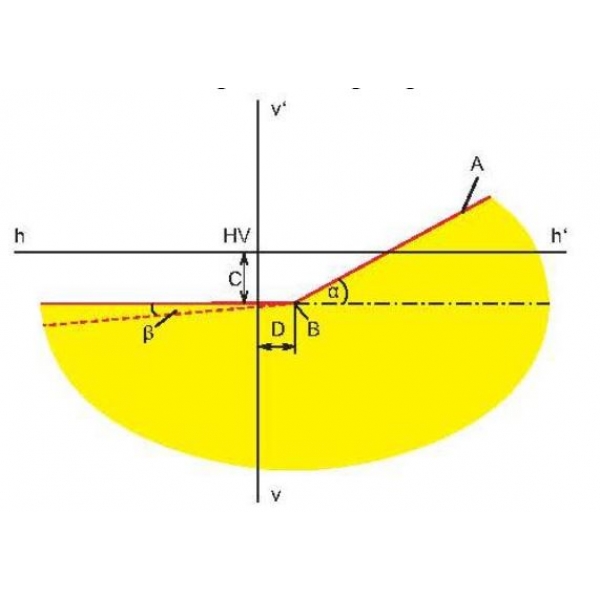

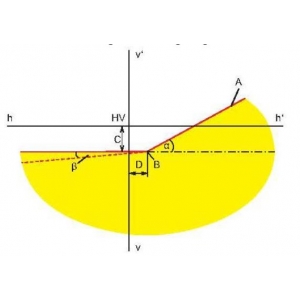

Beam pattern: European left / right steering wheel (UK, USA, Japan)

Integrated printer to print the report and deliver it to the customer

Software update via USB or RS232 connection and available via WiFi, Bluetooth

The sensor is mounted inside the optical box and reads the working height from the floor to the center of the optical box lens. This value is automatically sent to the electronic board so that the value can be recorded during the measurement

The electronic board has a chip accelerometer that locks the 0 position. When HBT is placed on the work area, the chip determines the slope of the floor and sends the data to the motherboard. Such correction shall be recorded and calculated before the test results are displayed.
