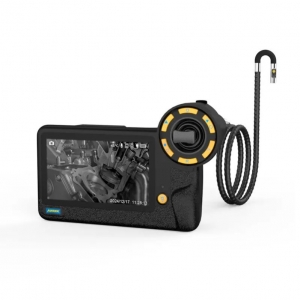

Endoscope Autool SVB403

Endoscope Autool SVB403

Country of origin: China, warranty period - 24 months

AUTOOL SVB403 is a professional automotive endoscope designed for inspecting hard-to-reach areas such as evaporators, combustion chambers, catalytic sensor areas, and more. The device features two high-resolution cameras (front and side), 210° bidirectional articulation, a bright 4.3-inch screen with 8X optical zoom, an IP67 protection rating, and an intelligent over-temperature alert system. The package includes everything needed for operation – the device, a flexible probe, carrying case, charging cable, and user manual. It is ideal not only for automotive use but also for motorcycles, household appliances, pipelines, and electrical systems diagnostics.

Functions:

• 210° bidirectional camera easily moves through tight and curved spaces
• Dual Ultra HD camera system – switch between vertical and side view with a single button

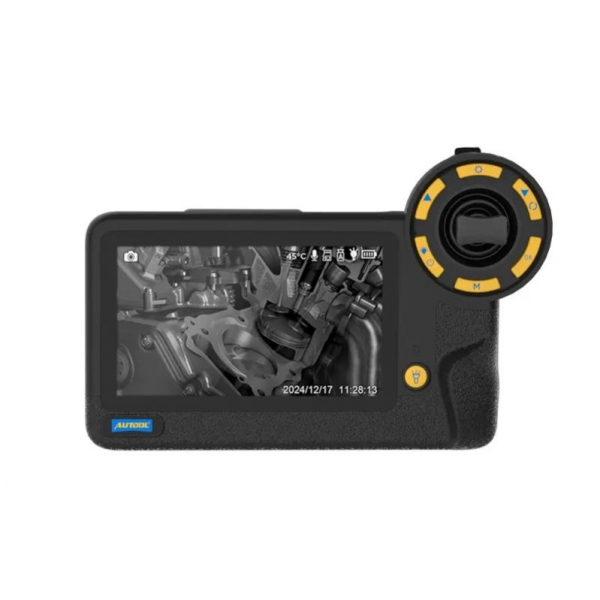

• Bright 4.3-inch HD screen with adjustable brightness and 8X zoom
• 32 GB memory card stores over 80,000 photos or more than 40 videos
• Temperature alert – sensor warns when temperature exceeds 80°C
• IP67 water and oil resistance – suitable for wet environments

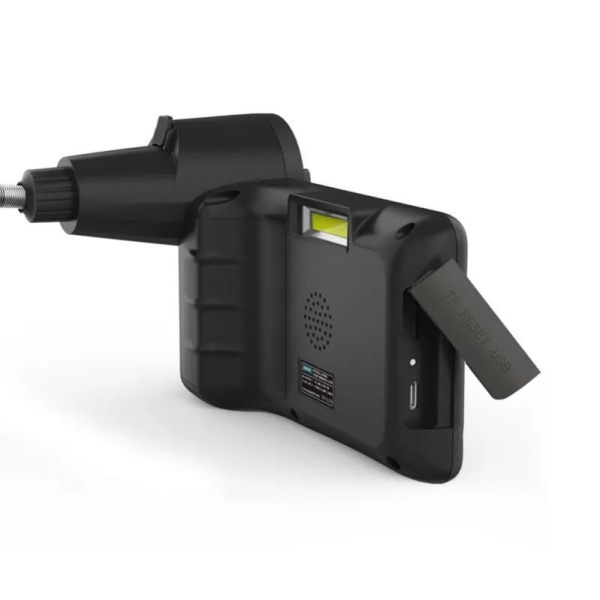

• Built-in 2600 mAh lithium battery with Type-C charging and removable option
• Suitable for automotive, motorcycle, electrical, pipeline, and appliance repairs
• Supported languages: English, Simplified Chinese, Japanese, Korean, Russian, French, German, Portuguese

Technical specifications:

• Camera diameter: dual lenses, each 6.5 mm
• Resolution: front camera 1280×720, side camera 1280×720
• Screen size: 4.3 inches
• Languages: 8 languages
• Depth of field: front camera 25–100 mm, side camera 15–60 mm
• Field of view: 70°
• Brightness adjustment: three-level
• Power supply: 5V
• Operating time: 180 minutes
• Battery capacity: 2600 mAh
• Camera light source: 6 LEDs for front view, 1 LED for side view
• Waterproof rating: IP67
• Flexible hose material: wear-resistant metal flexible hose
• Flexible hose length: 1 m
• Temperature protection: smart system
• Camera articulation directions: two
• Articulation angle: up to 210°
• Bending radius: 35 mm

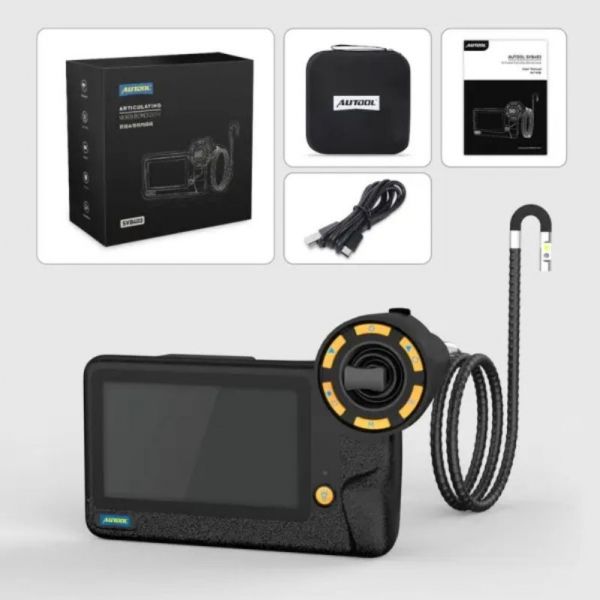

Package contents:

• Endoscope with control unit and articulating probe
• USB Type-C charging cable

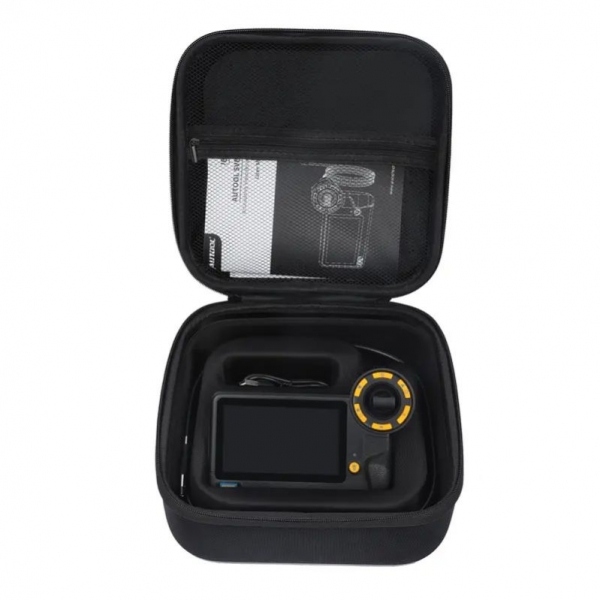

• Carrying case
• User manual
• Gift box with product presentation
