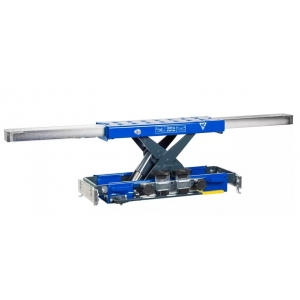

Extra wide hydraulic axle lift AC-Hydraulic 2.6 tons

Extra wide hydraulic jacking beam AC-Hydraulic 2.6 tons

Manufacturer: AC-Hydraulic, Denmark

One of the widest hydraulic jacking beam in the world. Thanks to the adjustable lifting supports, the width of the lift can reach as much as 1865 mm. The minimum height of the lift is only 190 mm, which makes it a good choice even for cars with low ground clearance. The unique height-adjustable mounting bracket system allows you to adapt this jacking beam to any lift. Lowering the jacking beam using two hands. This jacking beam supplied with 3 extension sets (10 / 40 / 85 mm) and rubber pads to protect the car body.

Unique advantages:

• Flexible mounting bracket system. Uniquely designed, adjustable mounting bracket system, which ensures a perfect fit on any lift - no matter the manufacturer.

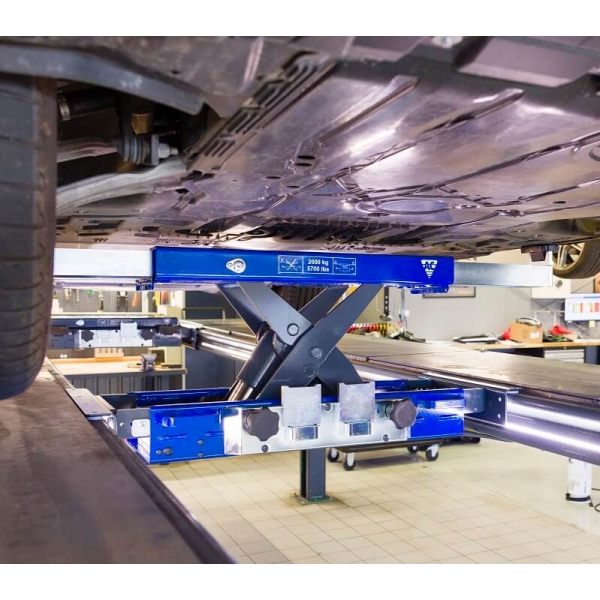

• Excellent adaptability to work with electric vehicles. The lifting points will always be wider than any battery pack frame. It ensures the lifting of the electric car without damaging the batteries.

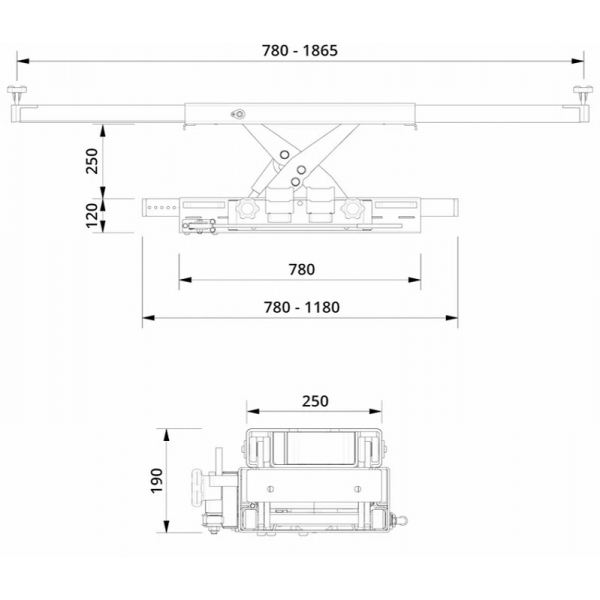

Technical parameters:

• Lifting capacity: 2600 kg
• Stroke: 250 mm
• Minimum height: 190 mm
• Width of telescopic lifting supports: 780 - 1865 mm
• Width without mounting brackets: 780 - 1180 mm
• Lifting frame height: 120 mm
• Lifting frame depth: 250 mm
• Weight: 120 kg
