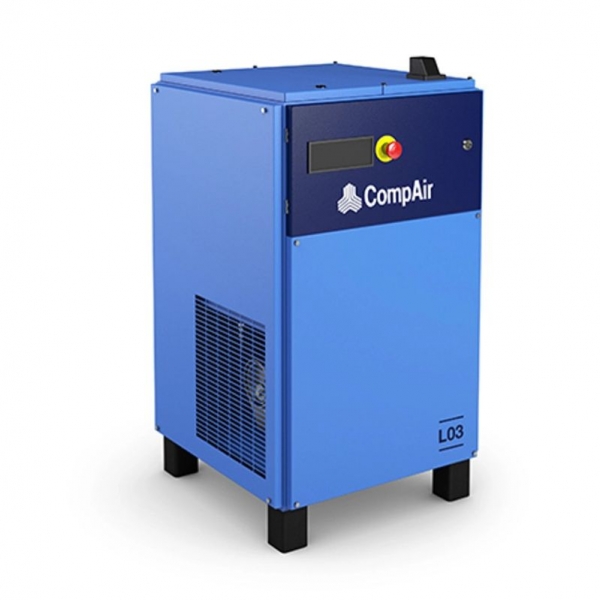

Fixed-speed rotary screw air compressor L05FS-270 CompAir

Fixed-speed rotary screw air compressor L05FS-270 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L05FS-270 is a compact, quiet, and reliable 5.5 kW screw compressor for continuous operation in workshops, manufacturing, and industrial sites. The AIRSTATION configuration with an integrated refrigerated dryer and a 270 l AD 2000 receiver ensures a dry, stable air supply up to 0.66 m³/min at 10 bar. The next-generation C-Pro1.0+ controller, automatic drive belt tensioning, and a canopy with fully removable side panels reduce downtime and simplify servicing. The model meets German engineering quality standards, while the Iconn remote monitoring capability and the SMARTair master compressor control system help optimize performance and energy consumption across the entire compressed air chain.

Functions:

• Quiet and reliable 10 bar fixed-speed operation for continuous use

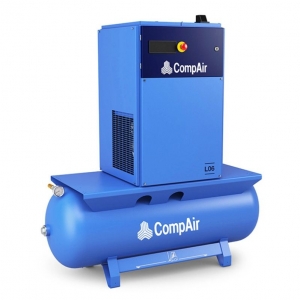

• AIRSTATION configuration: integrated refrigerated dryer and 270 l AD 2000 receiver – dry and stable air supply
• New C-Pro1.0+ controller: simultaneously shows pressure, oil temperature, and load/unload status; RS485 (Modbus) communication; integrated 2-compressor sequencer; auto restart after power failure; password-protected access; filter and oil change indicators; quick pressure adjustment; unload timers for DOL and SDS configurations
• Automatic drive belt tensioning – stable performance and lower maintenance costs
• Star-Delta (SDS) starting for smooth start and lower inrush currents
• Iconn remote monitoring capability – real-time parameter tracking, alerts, and data analytics
• SMARTair master compressor control system – multi-compressor sequencing, pressure stability, and energy savings
• Quiet operation – 68 dB(A) for a comfortable working environment
• New canopy with fully removable side panels – faster and easier maintenance
• Motor overload and airend protection – longer service life
• Original CompAir service kits and oils – energy efficiency and dependable performance

Technical specifications:

• Maximum pressure: 10 bar
• Free air delivery (FAD) @ 10 bar: 0.66 m³/min
• Motor power: 5.5 kW (7 hp)
• Starting method: Star-Delta (SDS)
• Receiver capacity: 270 l (AD 2000)
• Refrigerated dryer: integrated (AIRSTATION “FS” version)
• Drive type: belt drive with automatic tensioning
• Controller: C-Pro1.0+ (RS485/Modbus, sequencing, maintenance indicators, auto-restart)
• Noise level: 68 dB(A)
• Weight: 289 kg
• Dimensions (L x W x H): 1539 x 720 x 1604 mm

Choose CompAir L05FS-270 – a professional AIRSTATION solution with German engineering quality standards, delivering high efficiency, reliability, and long service life for your compressed air supply.
