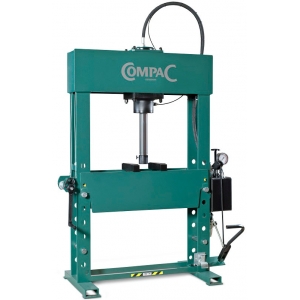

Foot-operated hydraulic press 50 tons, FP50

Foot-operated hydraulic press 50 tons, FP50

This hydraulic press is an ideal tool for professional workshops and repair work. Thanks to the foot-operated system, this press allows you to work efficiently, giving the operator the freedom to use both hands to work with the workpiece. Its durable design and reliable hydraulic system ensure long-term performance and safety. The hydraulic press with foot pedal is an effective and reliable solution for workshops that strive for quality, convenience and precision!

Features:

• Foot-operated hydraulic press

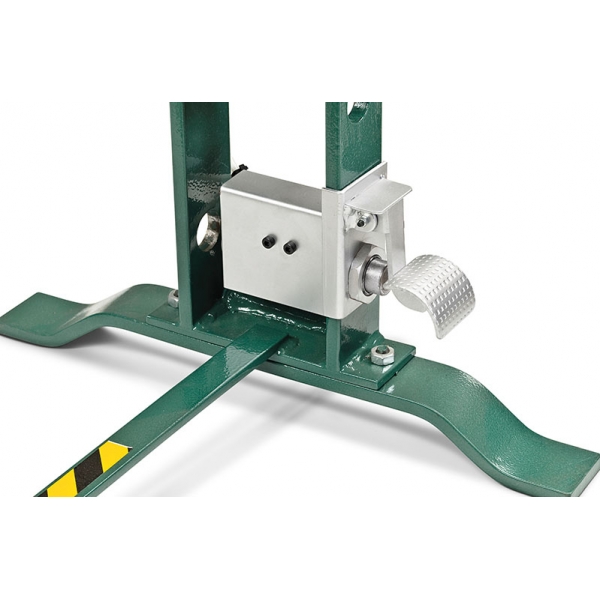

• Completed with a workbench lifting mechanism

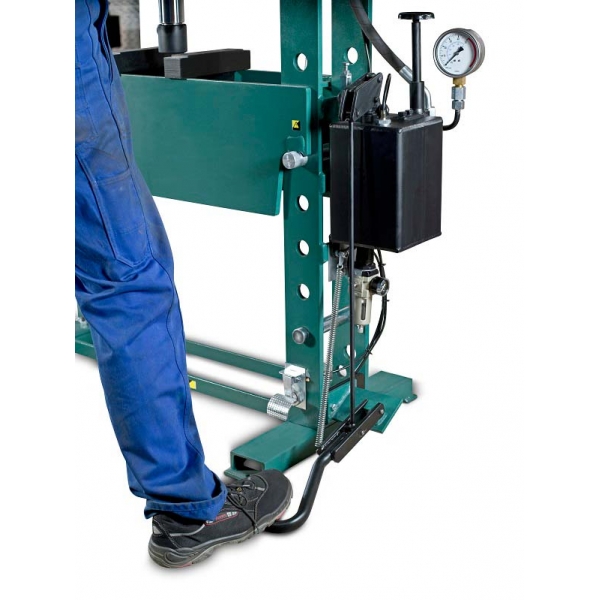

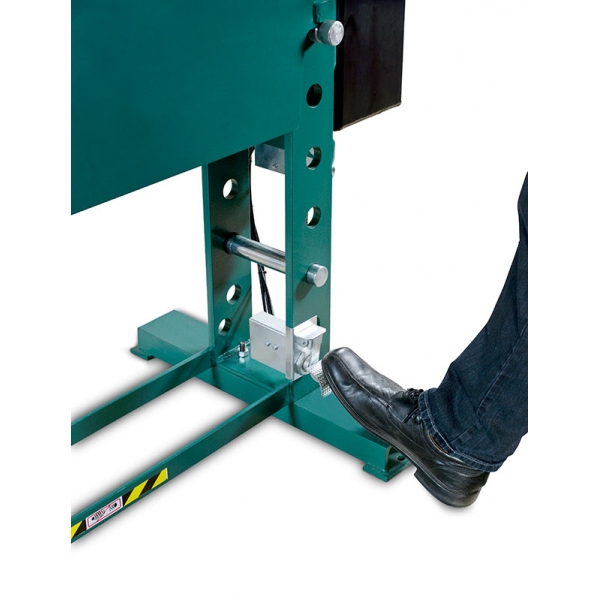

• Foot pedal-controlled lowering of the pressing cylinder to the workpiece
• You can use the foot control pedal even when performing pressing work
• Extra long cylinder stroke
• Built-in pressure release button in the foot switch

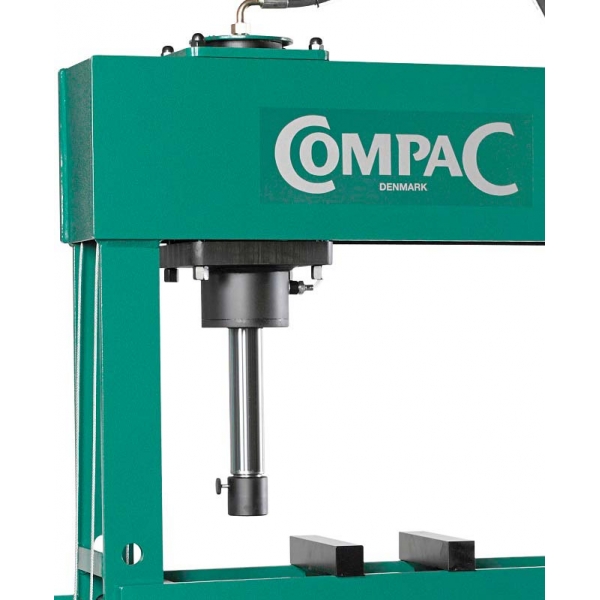

• Side-moving pressing cylinder
• Sturdy, chrome cylinder
• Air inlet connection has a water collection filter

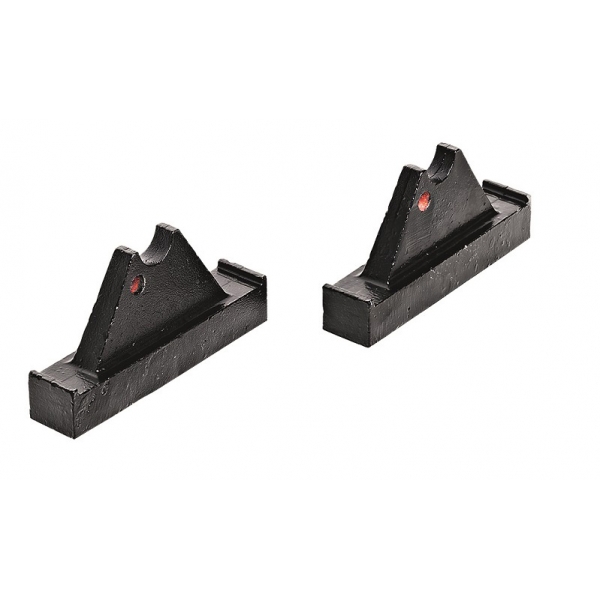

• Two working V-shaped workbenches

Technical parameters:

• Pressing power: 50 tons
• Speed ​​per stroke with load: 0.8 mm
• Speed ​​per stroke without load: 6.0 mm
• Working height (A): 750 mm
• Width between columns (B): 840 mm
• Column thickness (C): 200 mm
• Cylinder stroke (D): 300 mm
• Cylinder diameter at the top (E): 125 mm
• Working cylinder diameter (F): 70 mm
• Height (G): 1990 mm
• Width (H): 1350 mm
• Depth (I): 630 mm
• Weight: 375 kg
• Package dimensions: 640 x 1370 x 2350 mm
