Four-column freight elevator with safety net

Four-column freight elevator with safety net

Country oforigin: China, warranty period – 24 months

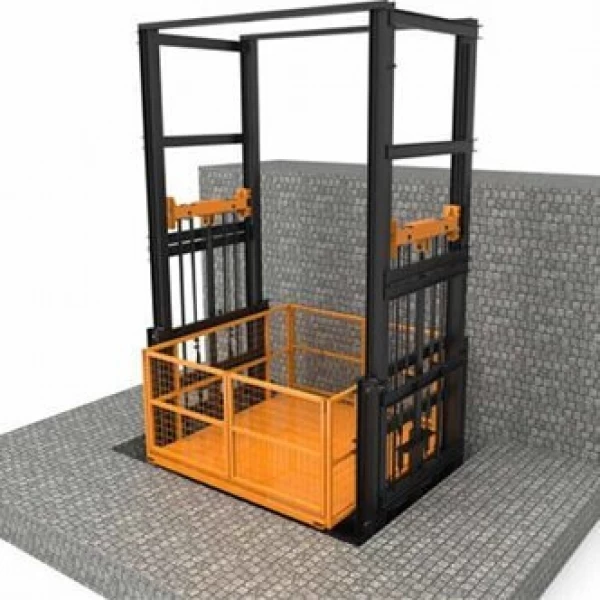

The four-postgoods lift is designed for transporting goods, pallets, and other loads betweendifferent floors of a building. It is suitable for use in warehouses,factories, production facilities, and outdoor areas where safe and efficientvertical load transportation is required. The lift is manufactured toindividual order, allowing its load capacity, platform dimensions, doorconfiguration, and other parameters to be adapted to the specific premises andoperational requirements.

Technicalspecifications:

• Lift type:four-post goods lift
• Application:lifting goods, pallets, and other loads
• Lifting height: DEPENDSON THE MODEL
• Safety enclosure:metal mesh
• Installationlocation: indoor or outdoor
• Control: controlpanels installed on different floors
• Production type:manufactured to individual order
• Load capacity:selected according to the customer’s requirements
• Platformdimensions: selected according to the customer’s requirements
• Compliance: CEand ISO requirements

Availableoptional configurations:

• Steel sheet walls
• Protective liftenclosure shutters
• Hinged doors
• Fixed accessramps

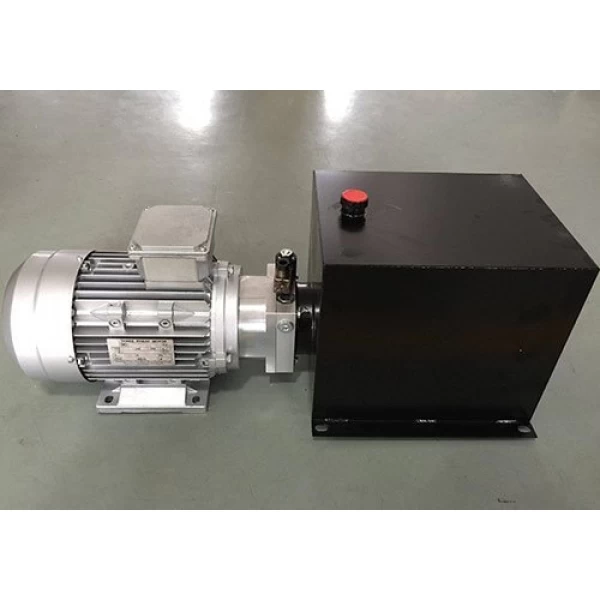

• Additional motorprotection enclosure
• Safety railingaround the lift
• Dual motors forfaster lifting

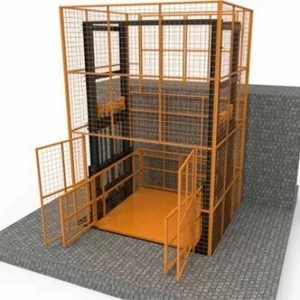

• Entire liftstructure enclosed with metal mesh
• Electric lock

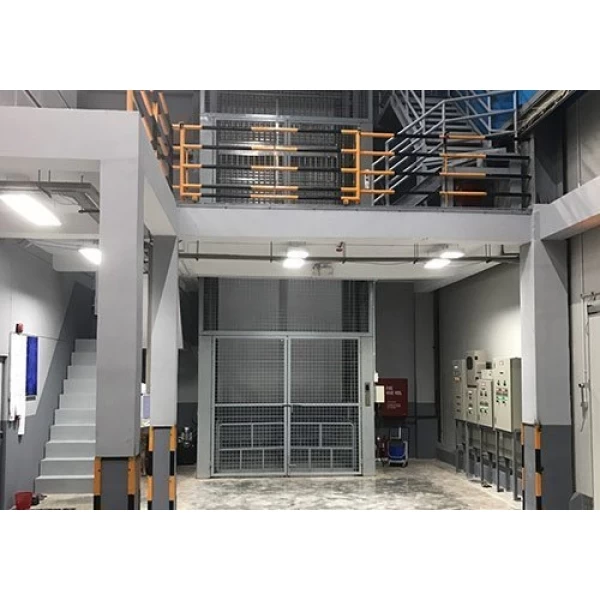

The four-postgoods lift with safety mesh is a practical solution for companies seeking totransport loads between different floors more quickly and safely. Itsindividually designed structure allows the lift to be precisely adapted to theavailable space, the type of loads being handled, and the intensity of dailyoperations.

Model | Loadcapacity | Platform dimensions | Maximum lifting height | Base dimensions |Overall dimensions

LRL0.5-3 | 500 kg| 1.5 × 1.5 m | 3 m | 200–220 mm | 2.4 × 1.8 × 5.5 m

LRL0.8-6 | 800 kg| 1.5 × 1.8 m | 6 m | 200–220 mm | 2.4 × 2.1 × 8.5 m

LRL1.5-3.3 |1,500 kg | 2 × 2 m | 3.3 m | 200–220 mm | 2.9 × 2.4 × 5.8 m

LRL5-8 | 5,000 kg| 3 × 2.8 m | 8 m | 200–220 mm | 3.95 × 3.2 × 10.5 m

LRL1-10 | 1,000kg | 1.8 × 2.3 m | 10 m | 200–220 mm | 2.6 × 2.7 × 12.5 m
