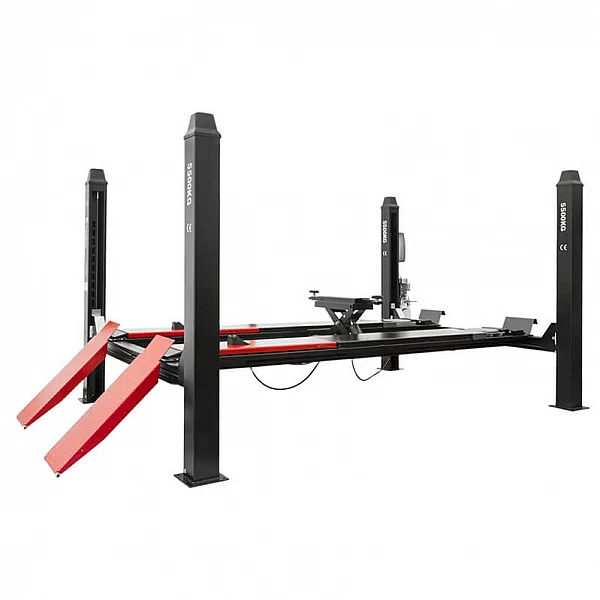

Four post semi-automatic lift for wheel alignment REDATS L-460, 5.5T

Four-Post Semi-Automatic Lift for Wheel Alignment REDATS L-460, 5.5T

Country of origin: Poland, warranty period – 24 months

The REDATS L-460 is a next-generation semi-automatic four-post lift designed for both passenger cars and larger vans. This model features a reliable construction, increased lifting capacity, and improved functions that make automotive repair work easier.

Functions:

• Increased lifting capacity: 5.5 tons, allowing you to lift heavier and larger vehicles.

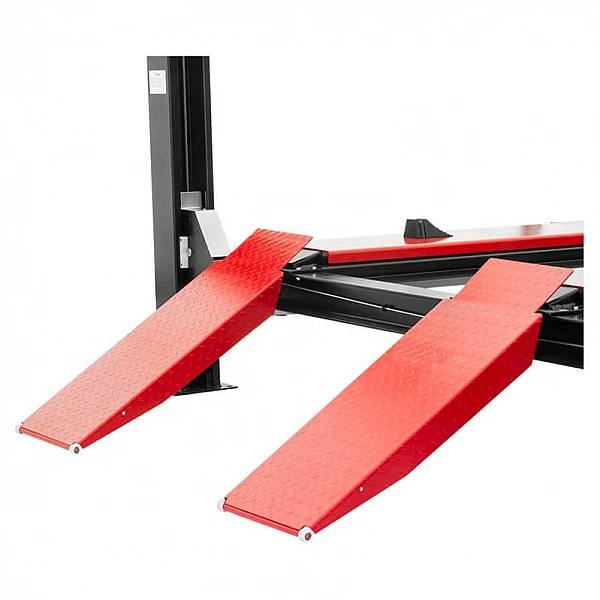

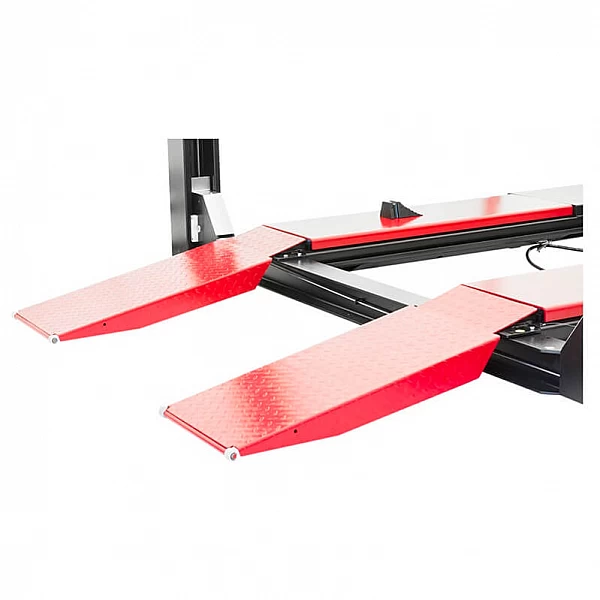

• Longer ramp: 5190 mm without runways, ensuring convenient operation even with long vans.
• Wider ramp adjustment range: 800–1025 mm, allowing the lift to accommodate different types of vehicles.

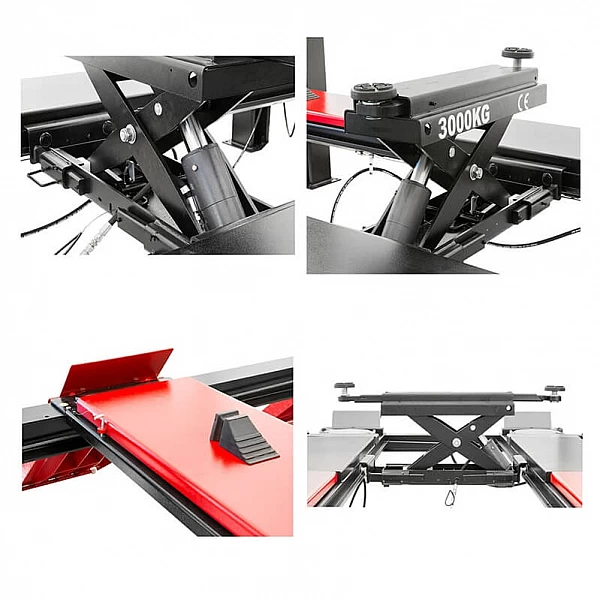

• More powerful axle lift: 3T (instead of the previous 2T), facilitating chassis work.

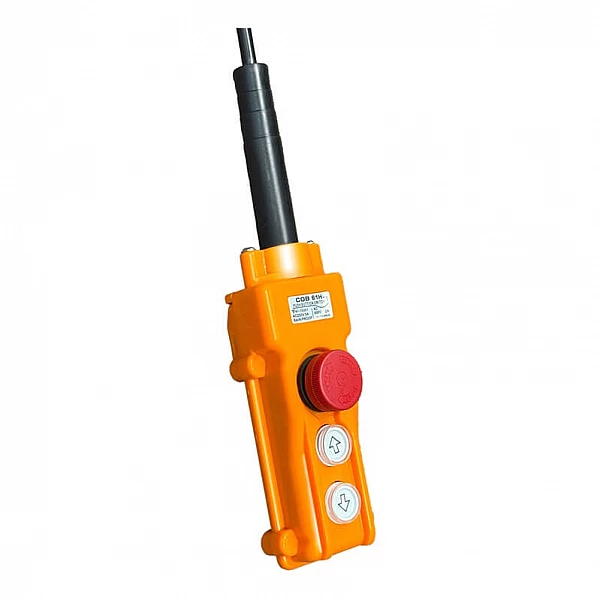

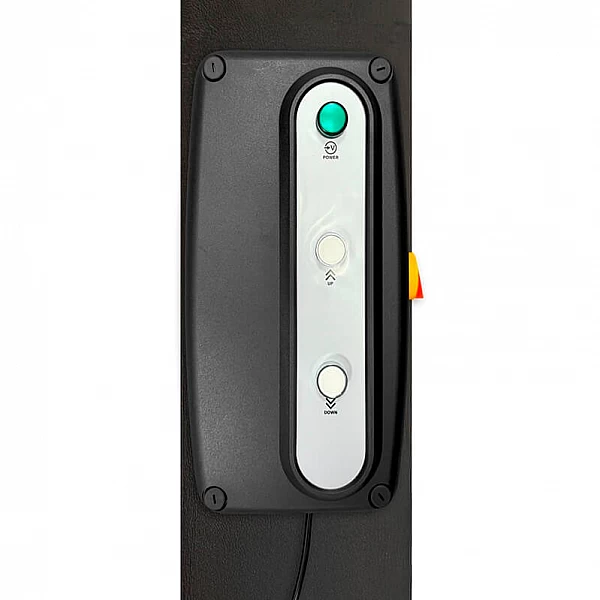

• Remote control and control panel: for convenient and efficient operation.
• Prepared for wheel alignment: equipped with turntable platforms and a central axle lift.
• Fast and smooth lifting: full lift in approximately 55 seconds.
• Safety features: pressure overload protection, locking safety systems, and a stable steel frame.

Technical Specifications:

• Lifting capacity: 5.5 tons
• Type: Semi-automatic, designed for wheel alignment
• Ramp adjustment: 800 - 1025 mm

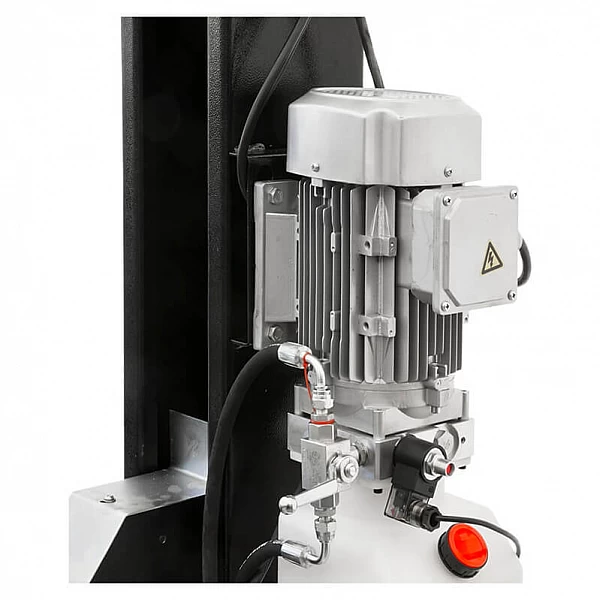

• Power: 2.2 kW
• Lifting height: 1750 mm
• Time to full rise/lowering: approximately 55 sec.
• Runway width: 530 mm
• Runway height (resting position): 250 mm
• Ramp length (without runways): 5190 mm
• Rear axle plate length: 1400 mm
• Wheel alignment turntable platforms: 2 pcs
• Turntable platform sockets: 685 mm + universal adapter
• Safety features: cable break protection, ratchet-based safety system, hydraulic overload valve, 24V safe voltage adjustment
• Power supply: 400 V
• Noise level: <76 dB
• Oil tank capacity: 12 L
• Weight: 1285 kg
• Dimensions (length x width x height): 6190 mm x 3340 mm x 2120 mm

Set Includes:

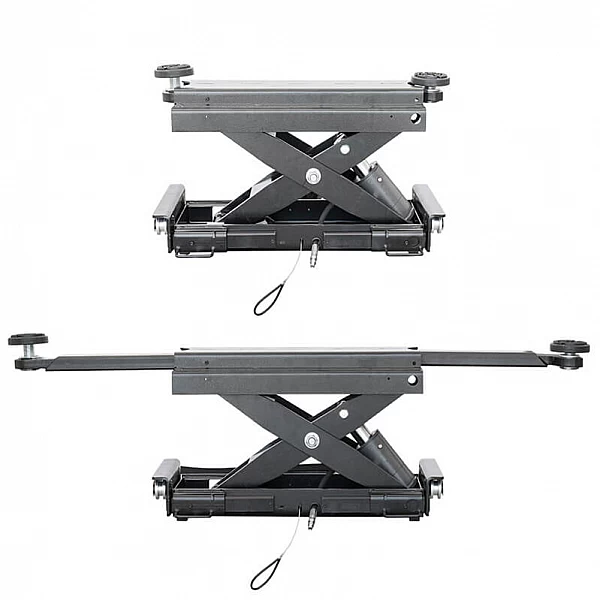

• Axle lift 3T
• Axle lift working height: 50 - 320 mm
• Adjustable axle lift support stands: 780 - 1600 mm
