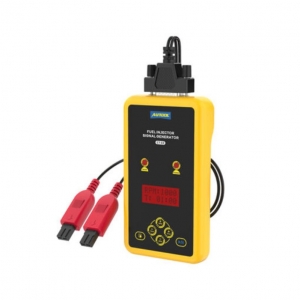

Fuel injector signal testing device Autool CT60

Fuel Injector Signal Testing Device Autool CT60

Country of origin: China, warranty period – 24 months

AUTOOL CT60 is a professional tool designed for testing automotive fuel injectors. It allows you to check whether the injectors are stuck, leaking, or burned out. The user can choose different pulse modes, adjust speed, pulse width, and operating time. It is also possible to connect two injectors simultaneously to compare their spray angle and spray performance. Suitable for both standard and high-pressure injectors.

Functions:

• Standard injector (12 V) testing
• High-pressure injector (instant 75 V) testing
• Ability to connect two injectors simultaneously
• Wide operating frequency range: 600–6000 rpm
• Working time setting up to 99 minutes
• LCD screen for precise parameter display

Technical specifications:

• Power supply: 110–220 V
• Operating temperature: 0 °C – 60 °C
• Storage temperature: -10 °C – 60 °C
• Frequency range: 600–6000 rpm
• Working time range: 0–99 min
• Suitable for all petrol and diesel vehicles
• Weight: 0.5 kg

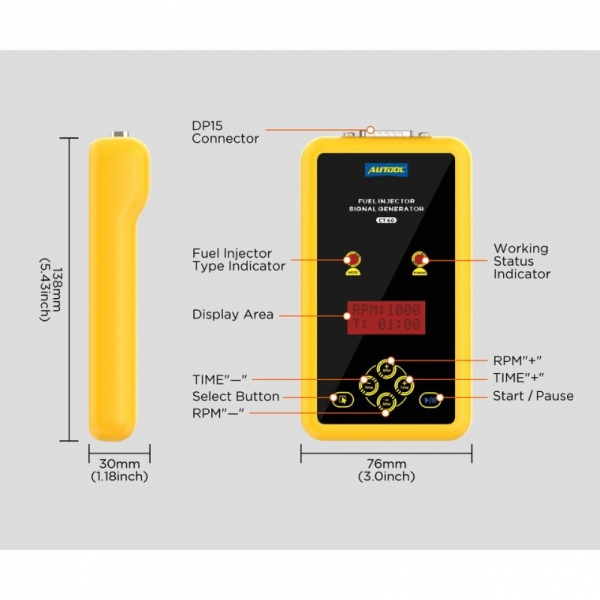

• Dimensions: 15 x 9 x 5 cm

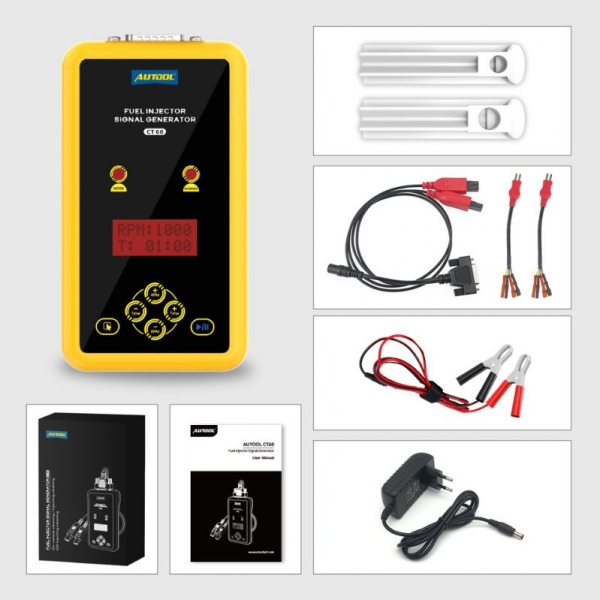

Package contents:

• AUTOOL CT60 main device
• Power adapter
• User manual
• Injector connectors
• Connection cable
• Power cable
