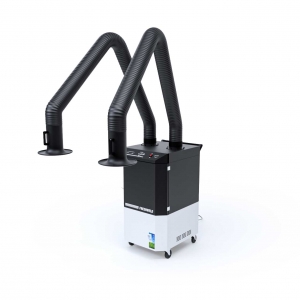

Fume extraction unit with cleanable cartridge filter M4/2200 FRESHWELD

Fume Extraction Unit with Cleanable Cartridge Filter M4/2200 FRESHWELD

Country of origin: Turkey, warranty period – 24 months

The M4/2200 is a professional mobile fume and hazardous dust extraction unit equipped with two manually cleanable F9-class cartridge filters and dual acrobatic extraction arms. It is ideally suited for use during welding or the processing of mild and slightly alloyed steel, where medium-intensity fumes and toxic gases are generated. The unit can be used at two workstations simultaneously, and the unused extraction arm can be easily closed using a flow-control damper. Thanks to its durable construction, convenient cleaning system, and long-lasting filters, the M4/2200 delivers excellent performance and long-term reliability.

Features:

• Two F9-class cartridge filters (EN779) for particles between 0.3–1 μm

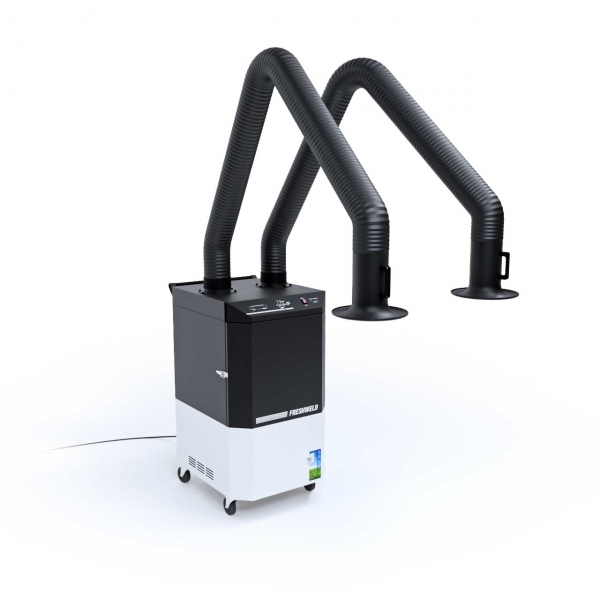

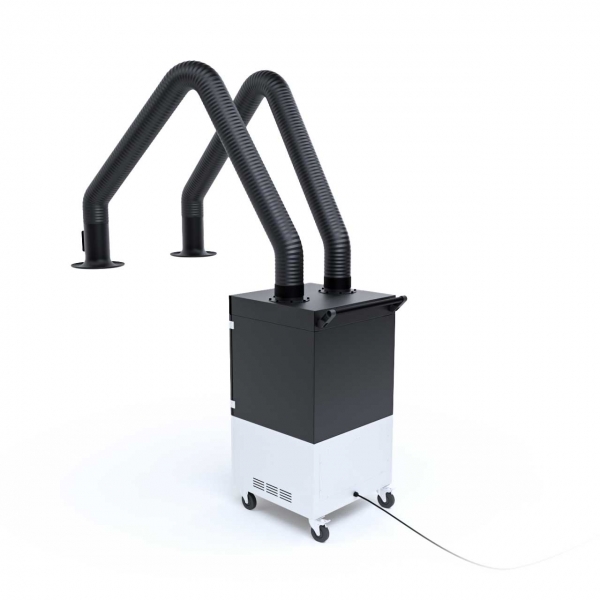

• Dual 3-meter long flexible extraction arms (internal or external joint)
• Simultaneous operation at two welding stations
• Unused extraction arm can be closed with a flow-adjustable damper

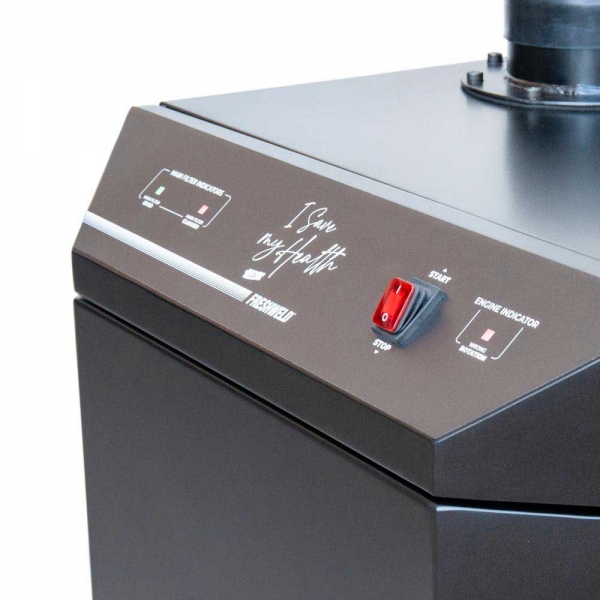

• Filter contamination indicator – maintenance only when needed
• Filters can be cleaned with dry air without removal

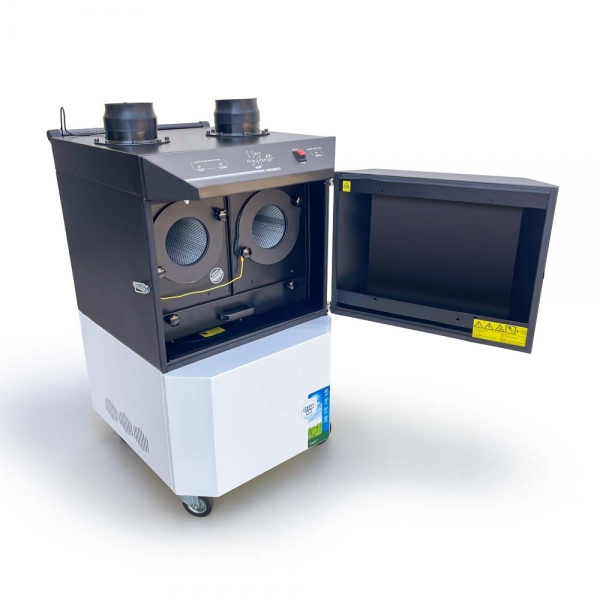

• Patented front cover for quick and convenient filter cleaning or replacement
• Integrated waste drawer for safe and eco-friendly dust disposal
• Large filter surface area – 2 x 10 m² = 20 m² with high dust retention capacity

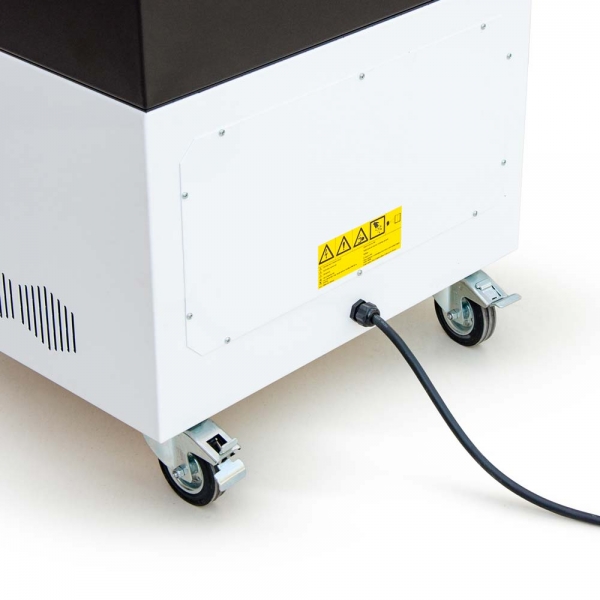

• Easy transport with swiveling caster wheels
• Stability ensured by lockable wheels
• Quiet and smooth movement with polyamide wheels

Technical Specifications:

• Filters: 2 x F9-class cleanable cartridge filters (EN779, ePM1 90%)
• Filter surface area: 20 m²
• Dust removal: integrated pull-out waste drawer
• Extraction arms: dual, flexible, 3 m length, up to 4 m available upon request
• Connection type: internal or external
• Power cable length: 3 m
• Wheels: polyamide with locking function
• Suitable for welding applications where harmful dust and gases are present

AVAILABLE VERSIONS:
