Fume extraction unit with Jet-Pulse self-cleaning system M5/2100 FRESHWELD

Fume Extraction Unit with Jet-Pulse Self-Cleaning System M5/2100 FRESHWELD

Country of origin: Turkey, warranty period – 24 months

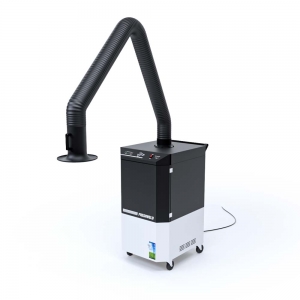

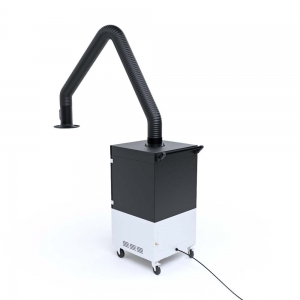

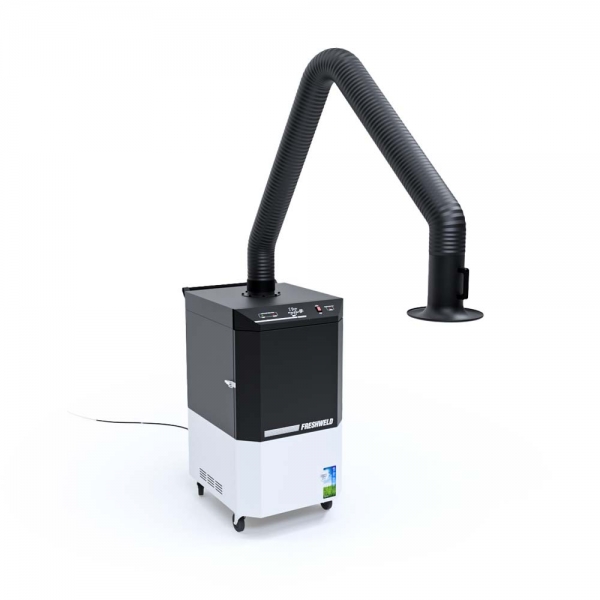

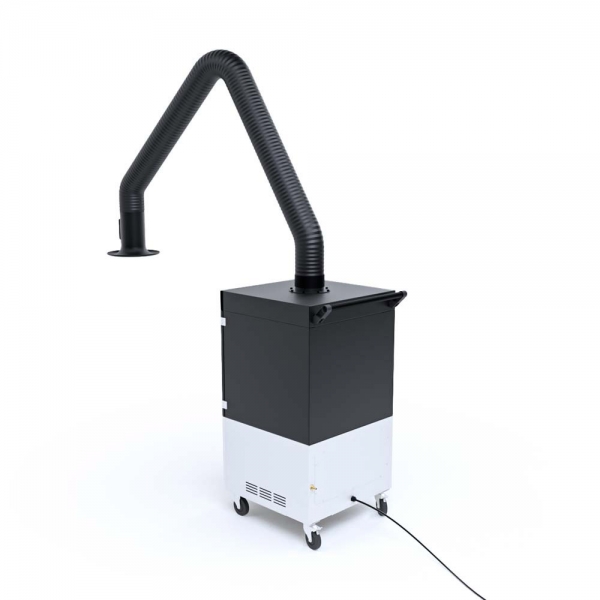

The M5/2100 is a mobile self-cleaning fume and hazardous dust extraction unit, equipped with a Jet-Pulse system, dual F9-class cartridge filters, and a single flexible acrobatic extraction arm. This unit is designed to efficiently eliminate toxic gases and dust generated during welding or while processing mild and slightly alloyed steel. The unique Jet-Pulse system enables automatic filter cleaning without interrupting work or opening the housing, thus extending filter life and minimizing maintenance requirements.

Features:

• 2 pcs of F9-class cartridge filters (EN779), suitable for particles between 0.3 and 1 μm
• Jet-Pulse self-cleaning system with compressed air inlet – filters can be cleaned without opening the cover or removing them from the housing

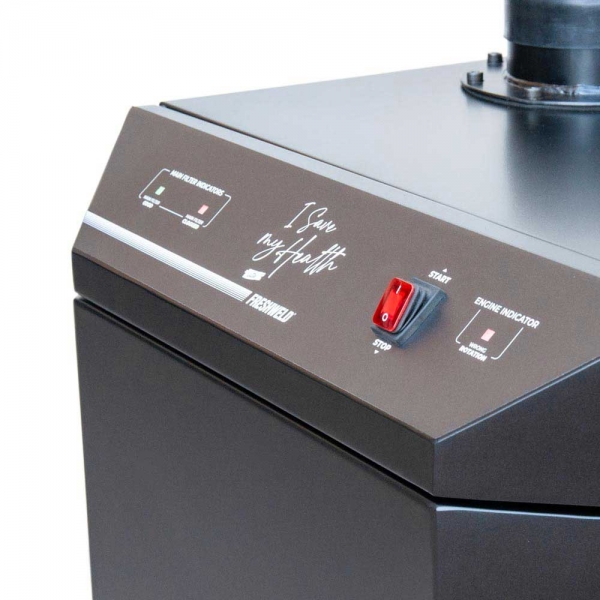

• Filter contamination indicator – maintenance is only performed when necessary
• Integrated dust drawer allows for safe and environmentally friendly disposal of collected particles

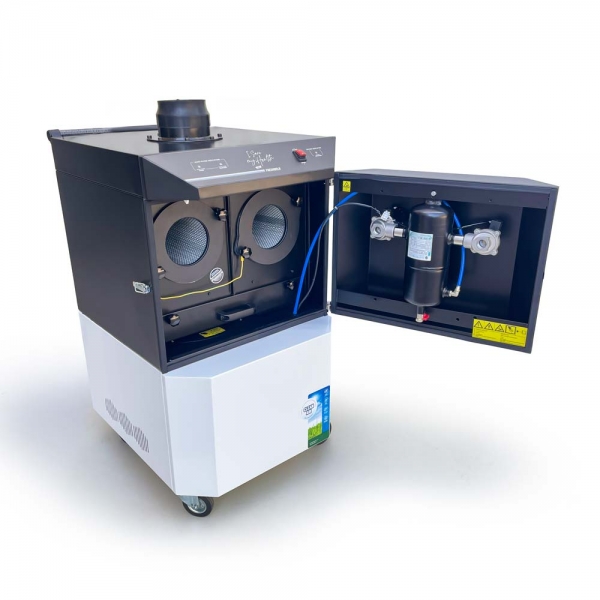

• Patented front cover for quick filter cleaning, replacement, and waste disposal
• Large filter surface area: 2 x 10 m² = 20 m² – high dust retention efficiency
• Single flexible extraction arm (internal or external joint), available up to 4 meters in length

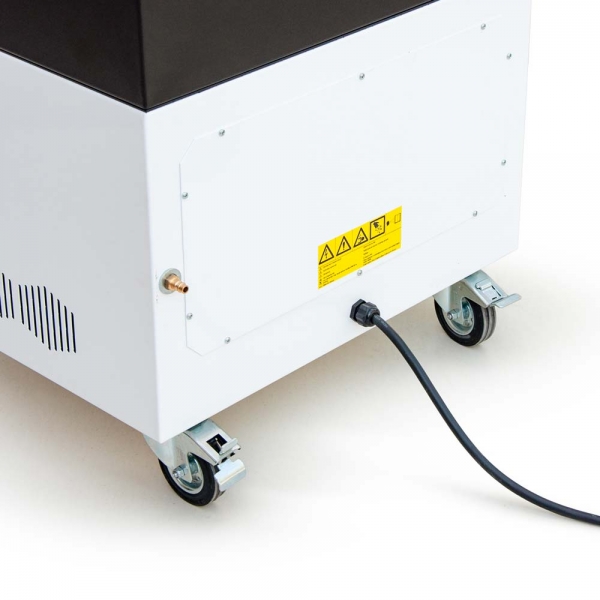

• Easy to move thanks to swivel caster wheels
• Stability ensured by lockable caster wheels
• Quiet and smooth movement with polyamide wheels

Technical Specifications:

• Filters: 2 x F9-class cartridge filters (EN779, ePM1 90%), cleaned with Jet-Pulse system
• Filter surface area: 20 m²
• Filter cleaning method: automatic Jet-Pulse with compressed air
• Dust disposal: integrated pull-out drawer
• Extraction arm: single, flexible, up to 4 m (customizable), internal or external joint
• Power cable length: 3 meters
• Wheels: polyamide with locking function
• Application: removal of welding fumes and toxic gases from mild and slightly alloyed steel processing areas
• Design: mobile – suitable for use across various workstations

AVAILABLE VERSIONS:
