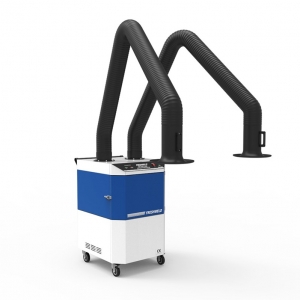

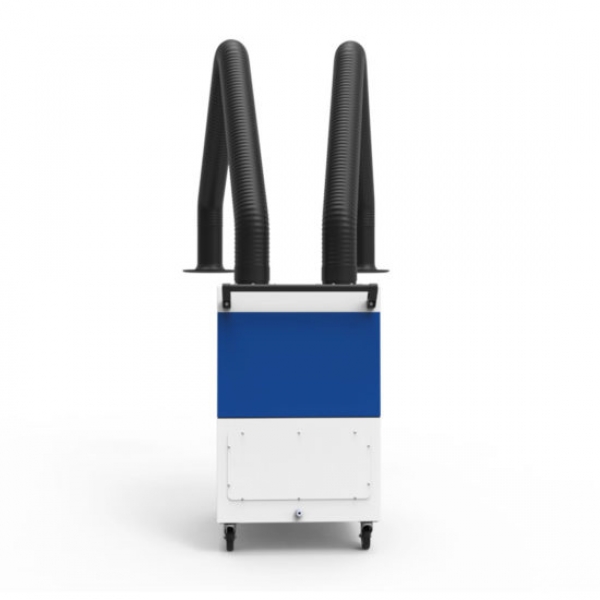

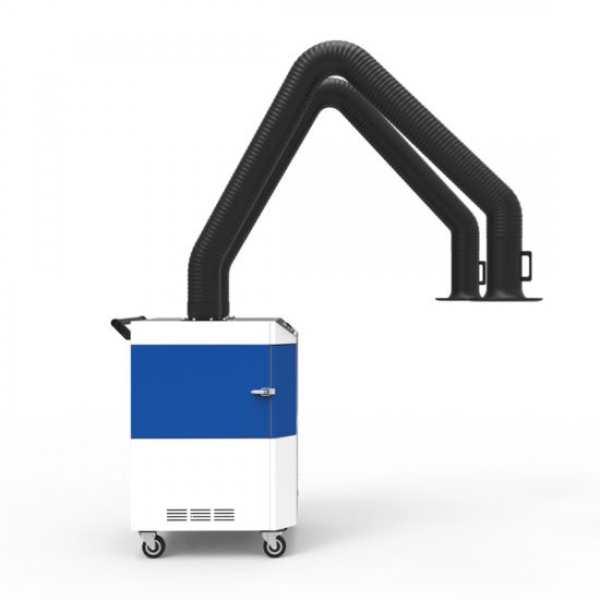

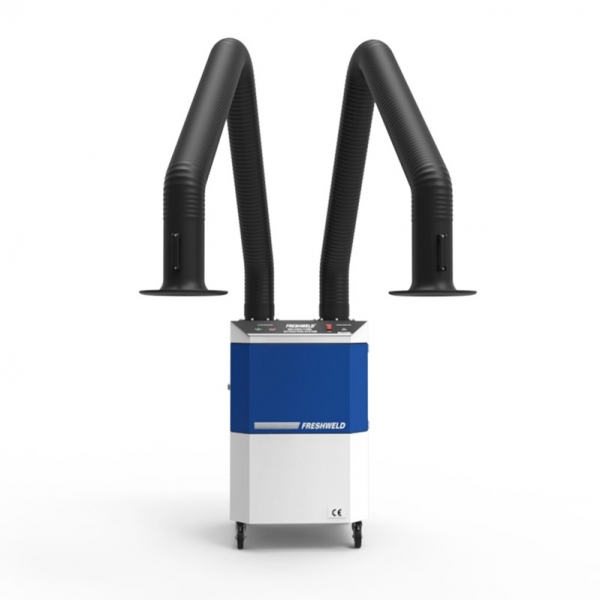

Fume extraction unit with replaceable filter M2/2200 FRESHWELD

Fume Extraction Unit with Replaceable Filter M2/2200 FRESHWELD

Country of origin: Turkey, warranty period – 24 months

The M2/2200 is a mobile professional fume and fine dust extraction unit equipped with two acrobat arms and a disposable cartridge filter. Designed for simultaneous use with two different welding sources, this unit is ideal for processing unalloyed and low-alloy steel where low to medium levels of fumes and dust are generated. The M2/2200 complies with European safety regulations, features an aluminum spark arrestor, and includes filter change indicators to reduce maintenance downtime.

Features:

• Can be used simultaneously with two welding sources
• Unused extraction arm can be closed using a flow rate control damper
• Fully compliant with European Machinery Safety Regulations
• Filter change indicators allow maintenance only when necessary
• Aluminum spark arrestor reduces fire risk caused by sparks
• If the phase sequence is incorrect or a phase is missing, the unit will not start, protecting the motor
• A warning lamp activates if the fan rotates in the wrong direction
• Quiet operation – only 72 dB
• Mobile design with lockable wheels

Technical Specifications:

• Filter: disposable F9 class (ePM1 80%, EN 779)
• Optional: E12 HEPA filter (≤99.99%, EN 1822)
• Noise level: 72 dB
• Extraction arms: dual acrobat arms, length options available
• Power supply: 3x400V / 50Hz (other voltage options available on request)
• Power cable length: 3 meters
• Packaging: palletized with protective strap
