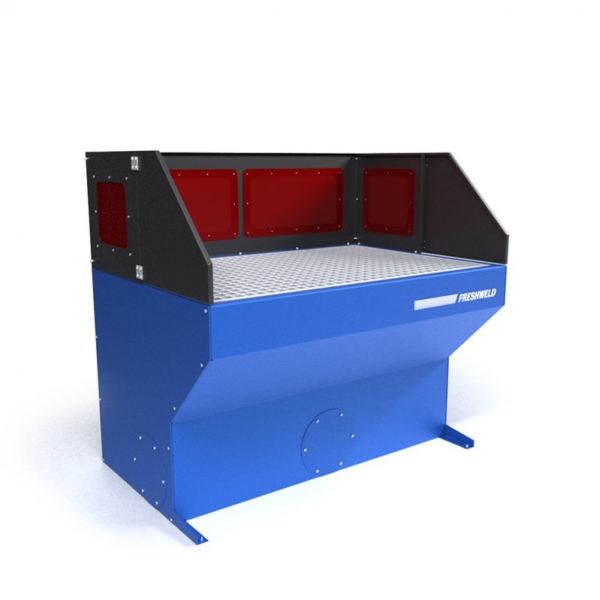

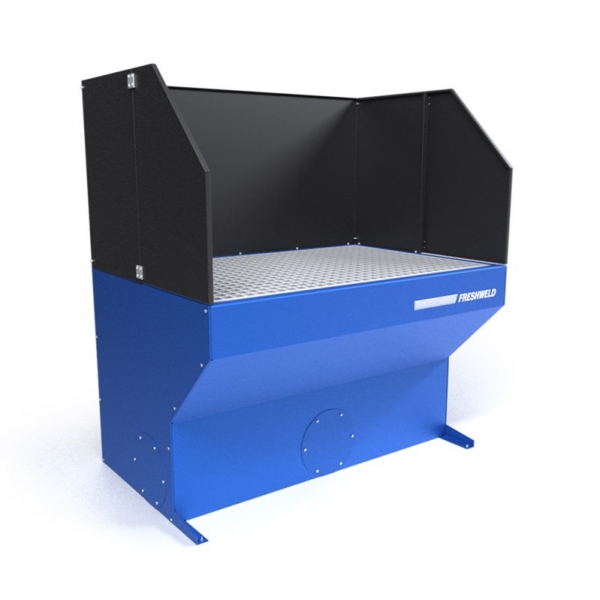

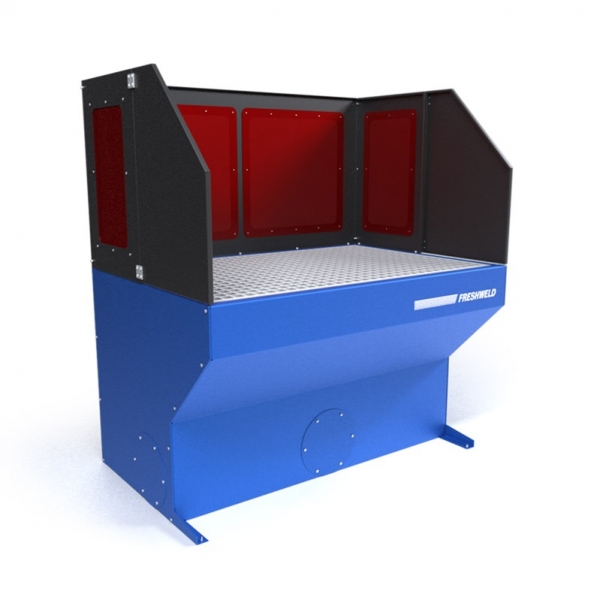

Grinding and welding table with downdraft extraction function KTM downdraft FRESHWELD

Grinding and Welding Table with Downdraft Extraction Function KTM Downdraft FRESHWELD

Country of origin: Turkey, warranty period – 24 months

The KTM Downdraft is a stationary welding and grinding table designed for the efficient extraction of fumes and dust directly from the work surface using a downward airflow system. This table is ideally suited for removing dust generated during the grinding of small metal parts and is also perfect for light and heavy-duty grinding or welding applications. Constructed from durable, long-lasting materials, the table features an integrated dust tray, while the work surface is coated with a thick chrome-plated grille. In addition, the table can be connected to a central filtration or ventilation system for enhanced performance.

Features:

• Downward extraction system prevents fumes and dust from reaching the operator’s respiratory tract.
• Robust construction ensures a safe working environment and long service life.
• Integrated dust tray allows easy removal of collected particles.
• Ergonomic design provides user comfort during operation.
• Thick, chrome-coated grille surface resists wear and tear.
• Can be connected to a central ventilation system.
• External filter or fan system can be connected.
• Shield options help to contain particles and prevent their spread in the workspace.

Technical Specifications:

• Application: extraction of grinding dust and welding fumes.
• Construction: durable sheet metal with chrome-coated grates.
• Filtration system: not integrated – designed for connection to a central filtration system.
• Extraction direction: downward (downdraft).
• Available in multiple size options.
• Shield options: visor and adjustable height.
• Packaging: palletized, shrink-wrapped with cord straps.

AVAILABLE VERSIONS:
