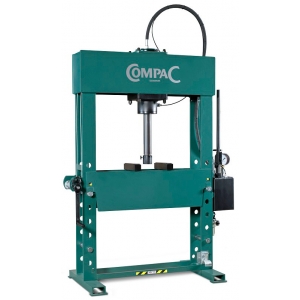

Hydraulic press with pressure gauge 100 tons, HP100

Hydraulic press with pressure gauge 100 tons, HP100

The HP100 hydraulic press is a great tool for heavy-duty and precise pressing jobs. With a pressing force of 100 tons and a built-in pressure gauge, this press provides reliable force control, allowing you to perform various jobs efficiently and accurately. Manual control gives the operator complete control and flexibility during work. The HP100 hydraulic press is a powerful and precise solution that will meet all your professional workshop needs!

Features:

• Hydraulic press operated with manual pressing system
• Extra long cylinder stroke

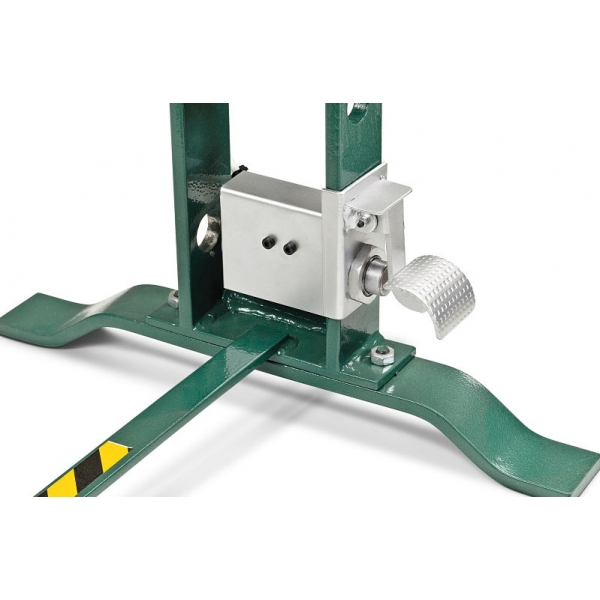

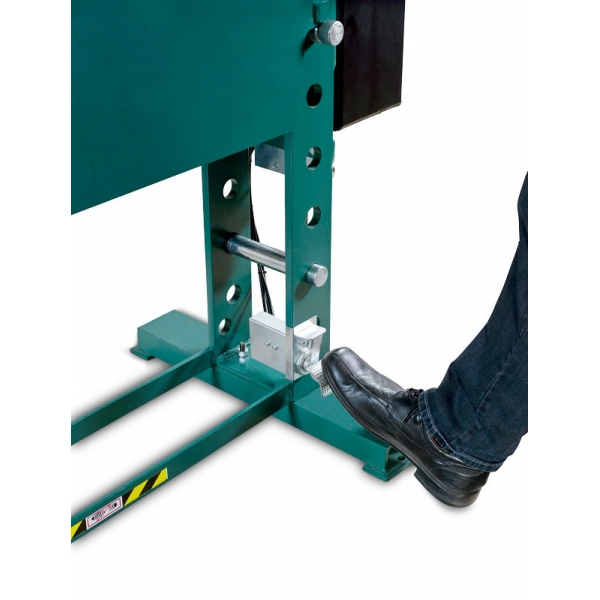

• Foot pedal controlled lowering of the pressing cylinder to the workpiece

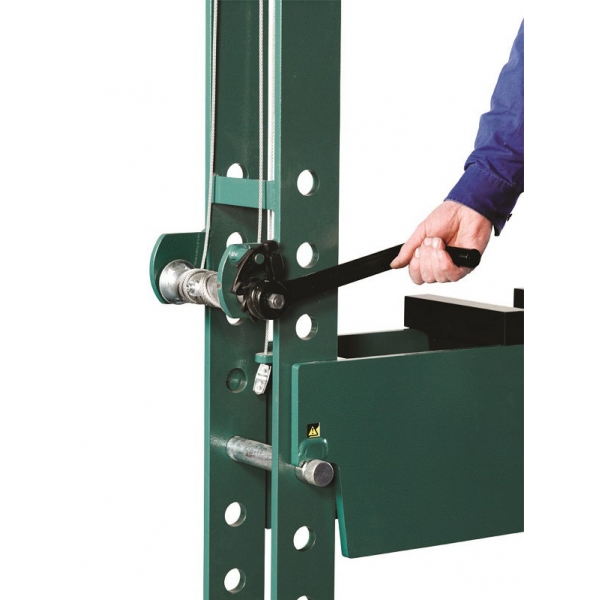

• Quick and safe adjustment of the worktable height using the included winch with brake

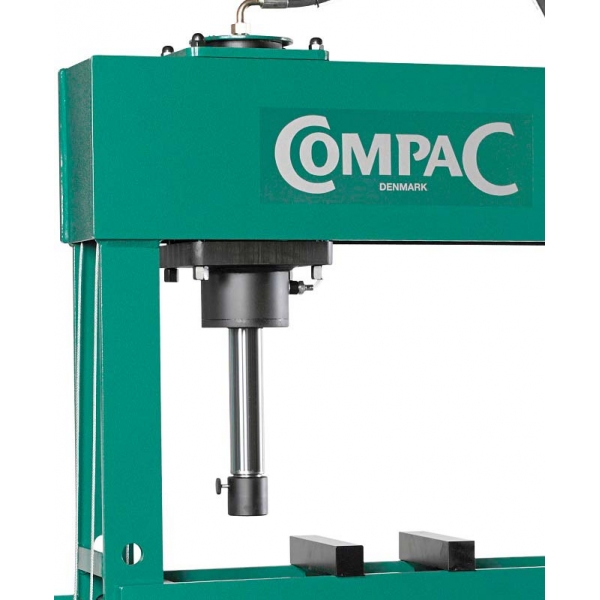

• Side-moving pressing cylinder
• Sturdy, chrome cylinder
• The cylinder return system uses compressed air
• The air inlet connection has a water collection filter

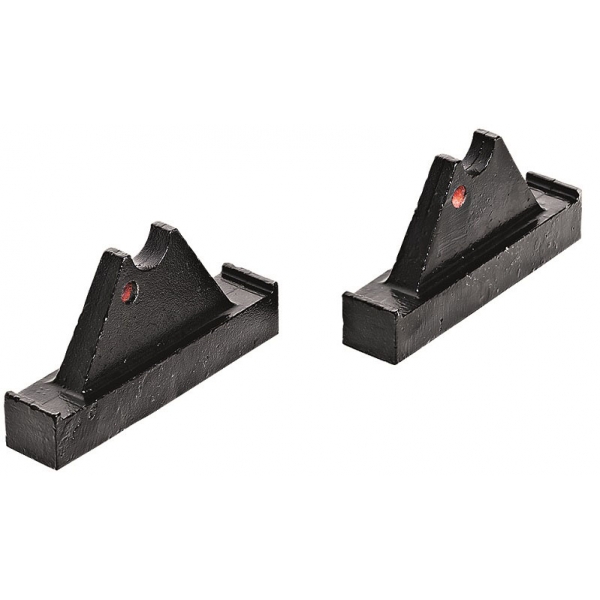

• Two working V-shaped worktables

Technical parameters:

• Pressuring capacity: 100 tons
• Speed ​​per stroke with load: 3.4 mm
• Speed ​​per stroke without load: 0.8 mm
• Working height (A): 915 mm
• Width between columns (B): 1035 mm
• Column thickness (C): 305 mm
• Cylinder stroke (D): 300 mm
• Cylinder diameter at the top (E): 200 mm
• Working cylinder diameter (F): 100 mm
• Height (G): 2200 mm
• Width (H): 1637 mm
• Depth (I): 800 mm
• Weight: 946 kg
• Package dimensions: 800 x 1700 x 2350 mm
