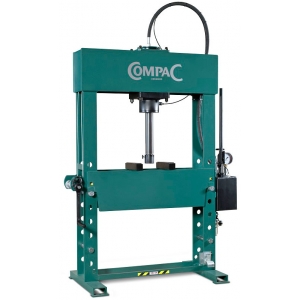

Hydraulic press with pressure gauge 50 tons, HP50

Hydraulic press with pressure gauge 50 tons, HP50

The HP50 hydraulic press is a great tool for heavy-duty and precise pressing jobs. With a pressing force of 50 tons and a built-in pressure gauge, this press provides reliable force control, allowing you to perform various jobs efficiently and accurately. Manual control gives the operator complete control and flexibility during work. The HP50 hydraulic press is a powerful and precise solution that will meet all your professional workshop needs!

Features:

• Hydraulic press operated with manual pressing system
• Extra long cylinder stroke

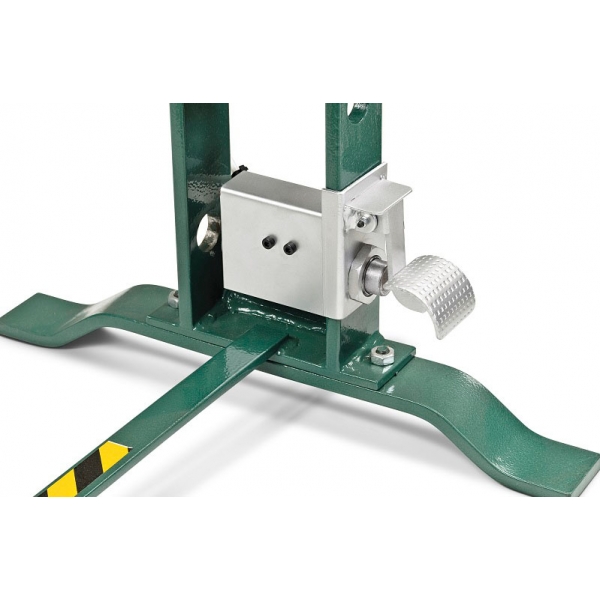

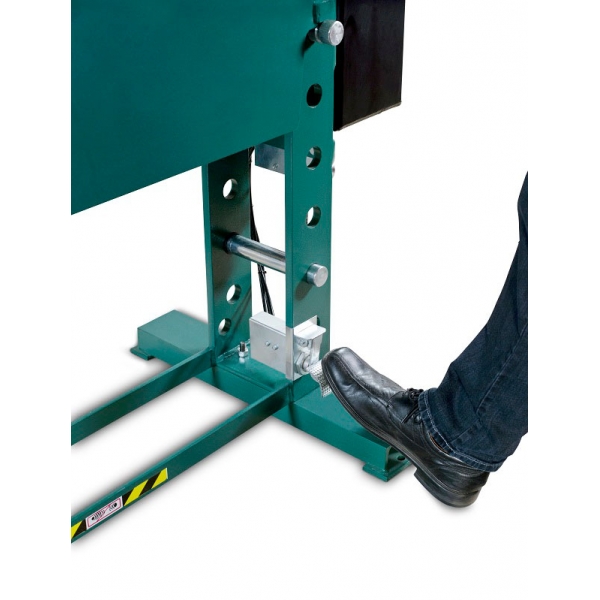

• Foot pedal controlled lowering of the pressing cylinder to the workpiece

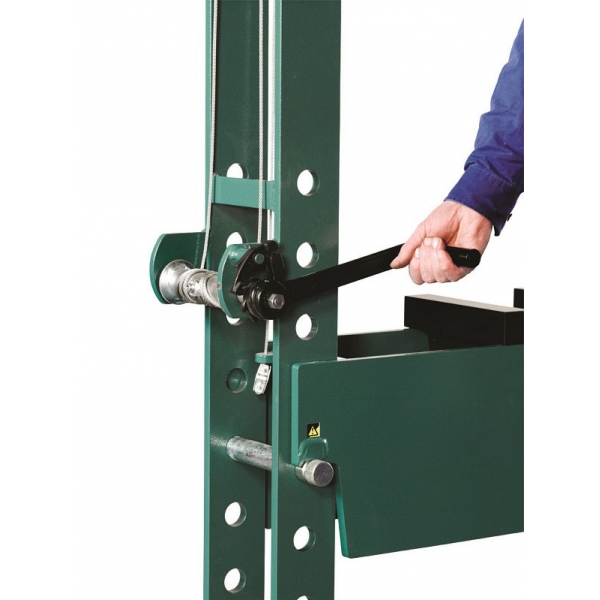

• Quick and safe adjustment of the worktable height using the included winch with brake

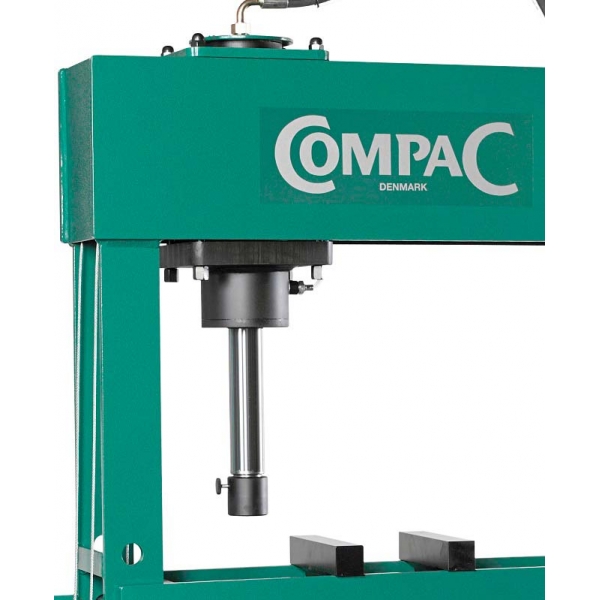

• Side-moving pressing cylinder
• Sturdy, chrome cylinder
• The cylinder return system uses compressed air
• The air inlet connection has a water collection filter

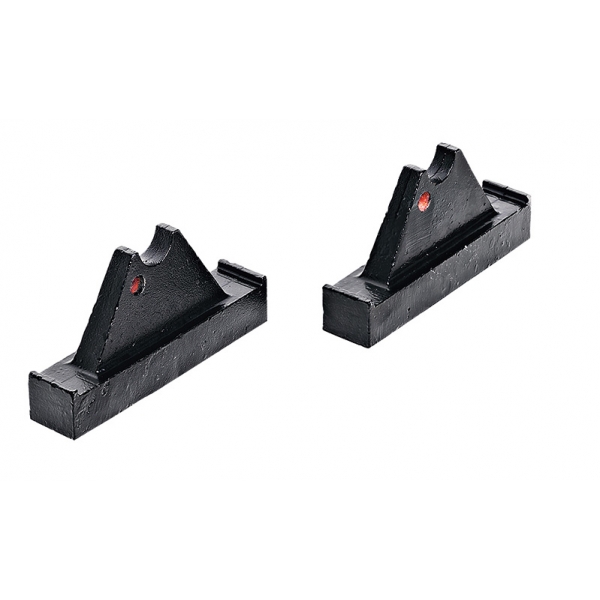

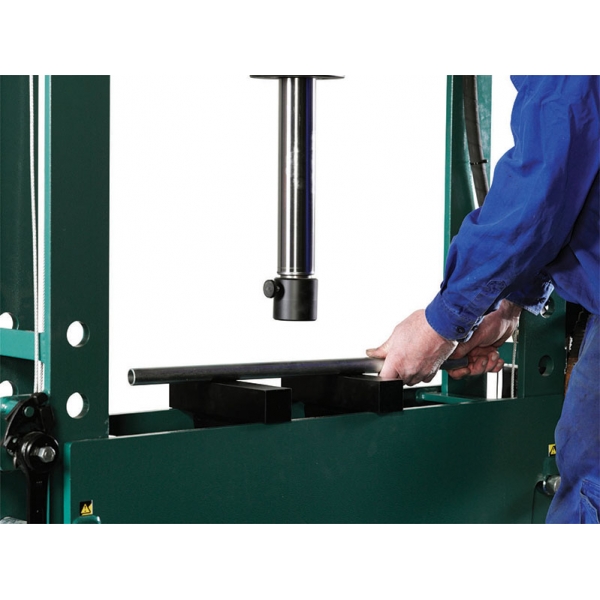

• Two working V-shaped worktables

Technical parameters:

• Pressing power: 50 tons
• Speed ​​per stroke with load: 6.0 mm
• Speed ​​per stroke without load: 1.5 mm

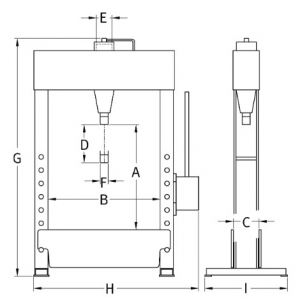

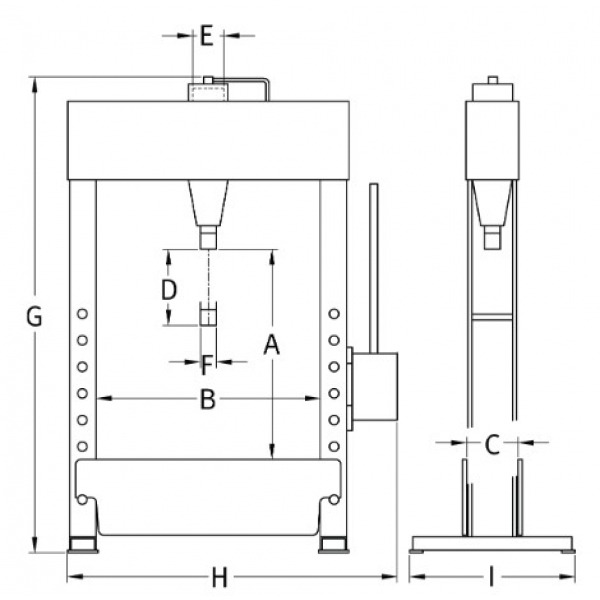

• Working height (A): 750 mm
• Width between columns (B): 840 mm
• Column thickness (C): 200 mm
• Cylinder stroke (D): 300 mm
• Cylinder diameter at the top (E): 125 mm
• Working cylinder diameter (F): 70 mm
• Height (G): 1990 mm
• Width (H): 1350 mm
• Depth (I): 630 mm
• Weight: 374 kg
• Package dimensions: 640 x 1370 x 2350 mm
