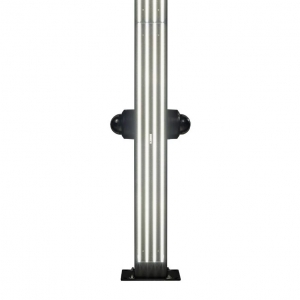

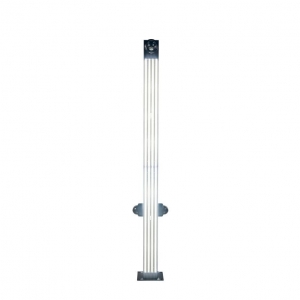

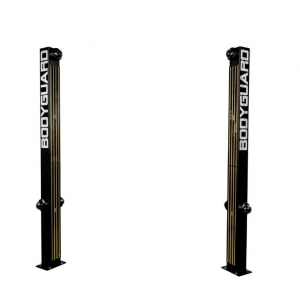

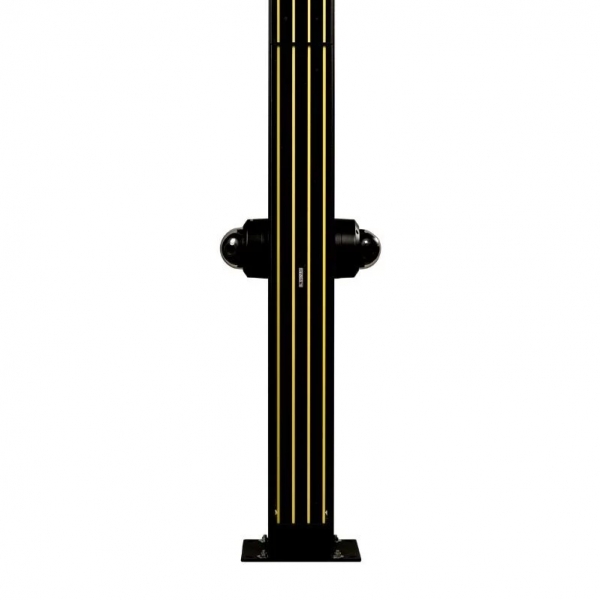

Car body defect inspection system Innovare BodyGuard

-6 %

Car body defect inspection system Innovare BodyGuard

Based on 0 reviews. - Write a review

SKU: BD16981
SKU:: Bodyguard

15,999.00 €

16,999.00 €

BL Innovare

Prices shown include tax

Send Message

Description

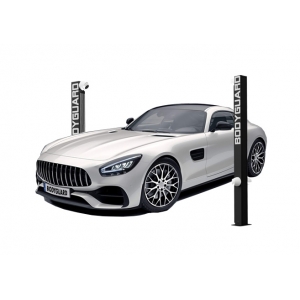

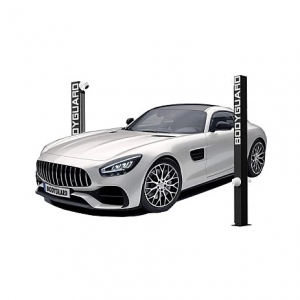

Car body defect inspection system Innovare BodyGuard

Country of origin: Canada, Warranty period: 24 months

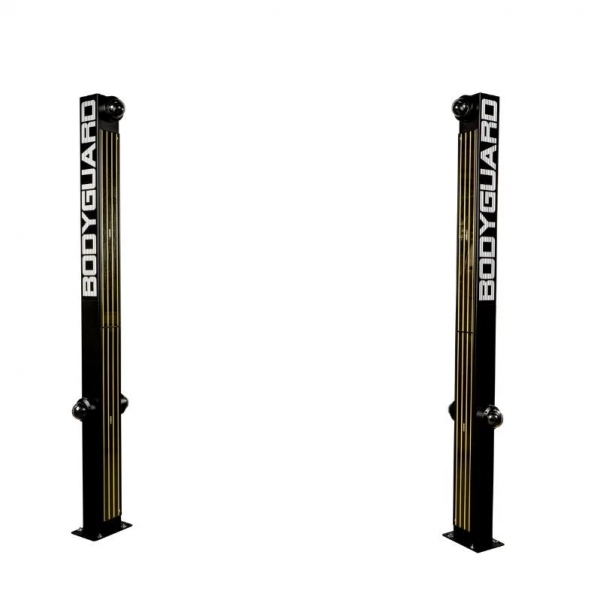

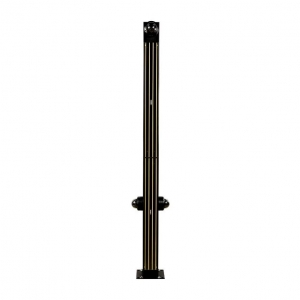

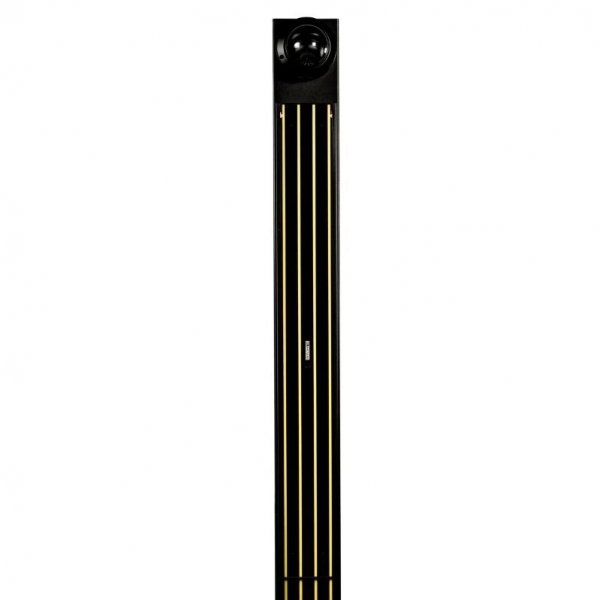

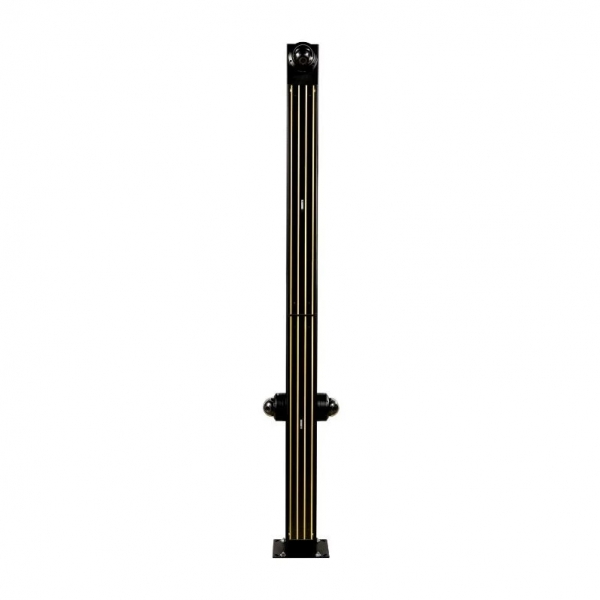

BL Innovare BodyGuard is a revolutionary piece of equipment that changes the way cars are inspected. This change is possible thanks to the use of non-contacting poles that inspect cars while they are in motion. The equipment manufacturers have set themselves the objective of ensuring that the checks carried out are fast, accurate and cost-effective. They are also committed to innovation, which encourages regular upgrades of the equipment so that it always meets world-class needs. A modern and efficient security system designed to meet the highest demands. This installation provides security and a back-up guarantee that protects companies against unjustified and inappropriate reproaches for damaged cars.

The equipment is most widely used in the following areas:

Car dealerships
Car washes
Car parks
Tyre repair shops
Car rental outlets
Car factories
Companies with a large fleet of cars
Car auctions

Technical parameters:

Column spacing: 3000 - 5000 mm
Operating temperature: -30 °C to + 50 °C
Power supply: 240 V / 50 Hz
Power consumption: 300 W
Internet connection requirements: 15 MBps (wired connection)
Internet cable requirements (internal): 16 AWG 2 - copper, 1 - Cat6 server box for column
Internet cable requirements (outdoor): 16 AWG 2 - copper, 4 - Cat6 server box for column
Maximum cable length from column to column: 25 m
Dimensions with video cameras (BodyGuard 1.2), (I x W x H): 314 x 222 x 2127 mm
Dimensions with cameras (BodyGuard 1.2 tall), (I x W x H): 314 x 222 x 2802 mm
Dimensions of base: 237 x 179 mm
Dimensions of server box (switchboard), (I x W x D) : 413 x 504 x 128 mm

Available device versions:

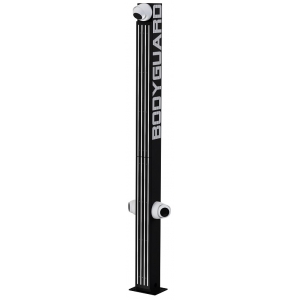

BodyGuard 1.2

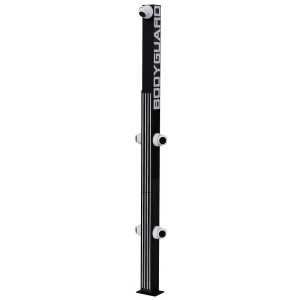

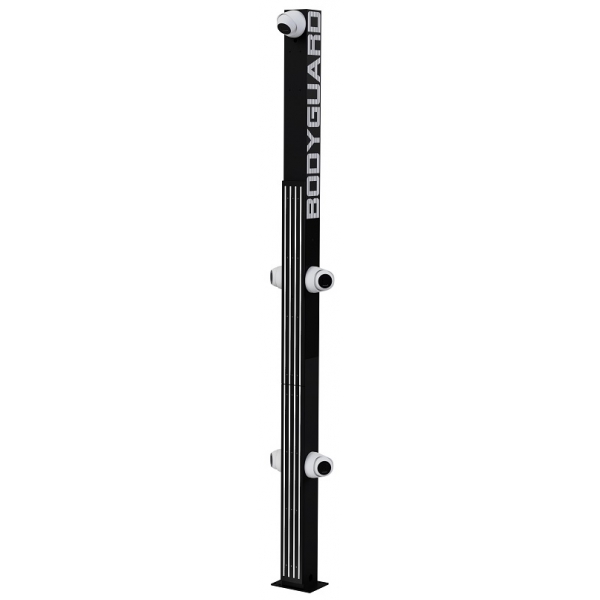

BodyGuard 1.2 tall
BodyGuard 1.2 tall (outdoor-ready)
BodyGuard 1.2 tall (outdoor-ready)
BodyGuard 1.2 licence package (
BodyGuard 1.2 licence package (additional 100 cars)
BodyGuard 1.2 tall licence package (
BodyGuard 1.2 tall licence package (additional 100 cars)

Optional components:

Additional lighting stands (60000 lm)
Additional roof damage detection system with two video cameras

How the equipment works:

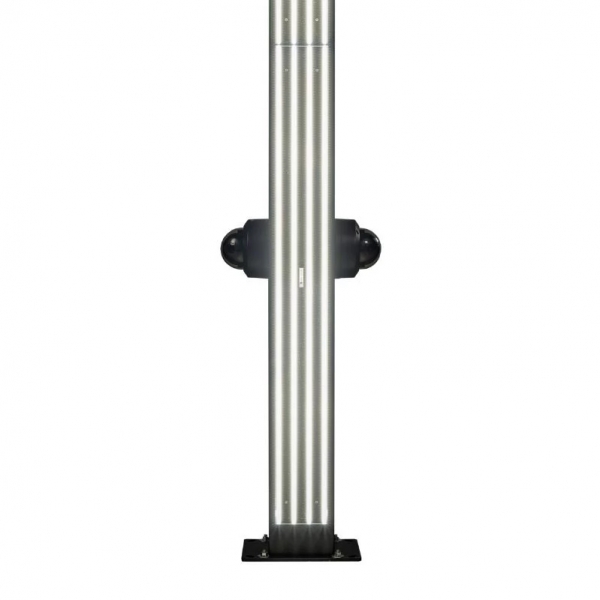

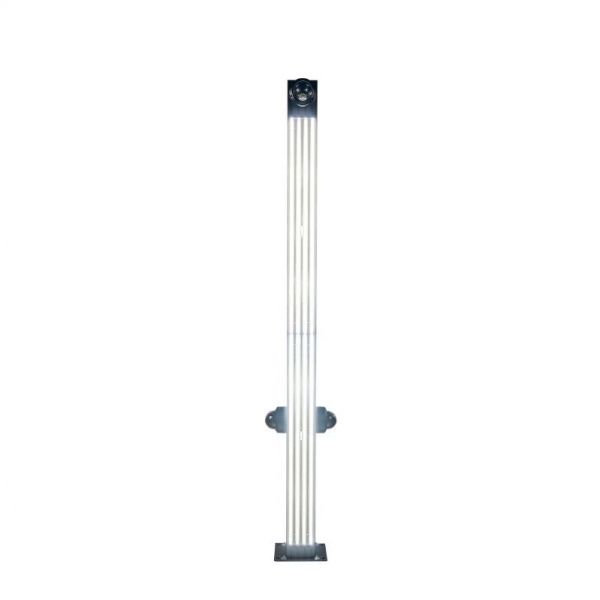

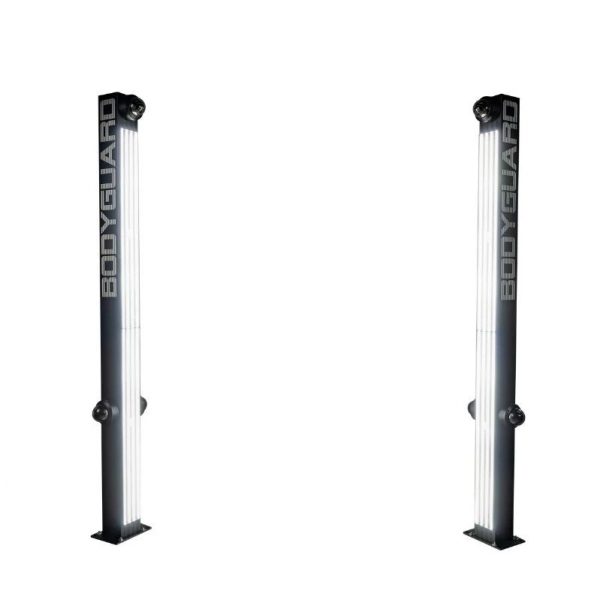

The integrated Smart Lights (for body illumination) are activated by the approaching vehicle
Strategically positioned video cameras start recording the approaching vehicle
The recorded vehicle data is identified by the license plate number of the passing vehicle. This data is also uploaded to a web server
The uploaded captured data can be viewed on the web server. (Upload speed depends on vehicle traffic and internet speed)
You can search for a specific car by the registration number of that car
You can select a specific video camera that has captured cars from different angles and view all the captured footage

Features:

The system has the ability to capture a wide range of defects that are not visible under normal conditions
Capture a wide range of wheel damage and scratches even when the car is moving at 5 - 8 km/h
Capture a wide range of dents in cars, even when wet and moving
Comprehensive, easy-to-understand software that allows you to view all the cars captured by the system and know their condition.

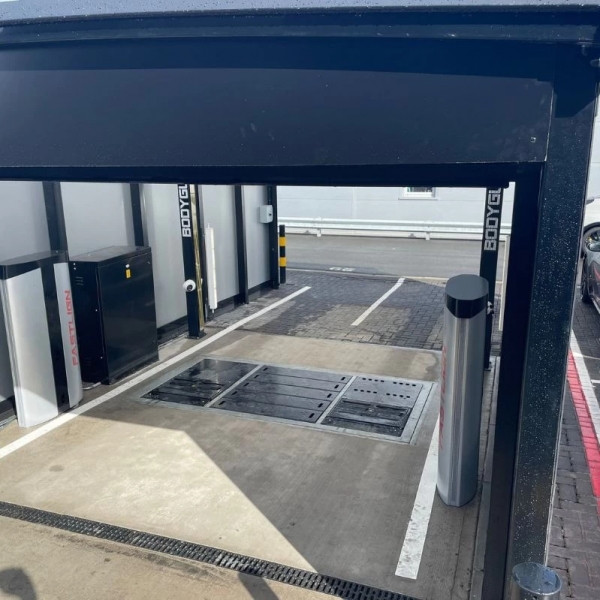

Can be used indoors or outdoors
Capable of handling car flows in both directions

Capture existing car damage:

360° vehicle coverage, thanks to 6 or 10 cameras installed from different angles
Built-in illumination for capturing high-resolution images
Can handle cars in muddy, wet or other conditions

Very easy integration into your workshop:

Fully automatic system that does not interrupt any of the work you are doing in your workshop
The system scans all cars that pass the installed scanning poles
BodyGuard API system is easy to integrate into any of your premises or areas

Easy to use, high quality images:

User-friendly and simple control menu
Automatic scanning and assignment of vehicle number plates, much simpler data management
Designed to capture various imperfections on a moving vehicle

Allows you to dispense with routine, lengthy specialist inspections:

Continuous data processing and storage
Improved work efficiency thanks to automated technology
Freeing up your staff from additional work with customers
