ISCAN diagnostic tool for SUZUKI motorcycles OBDSTAR

ISCAN Diagnostic Tool for SUZUKI Motorcycles OBDSTAR

Country of origin: China, warranty period – 24 months

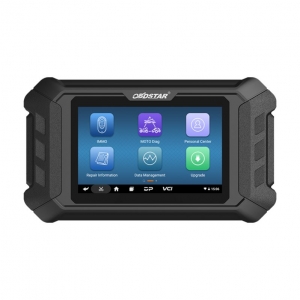

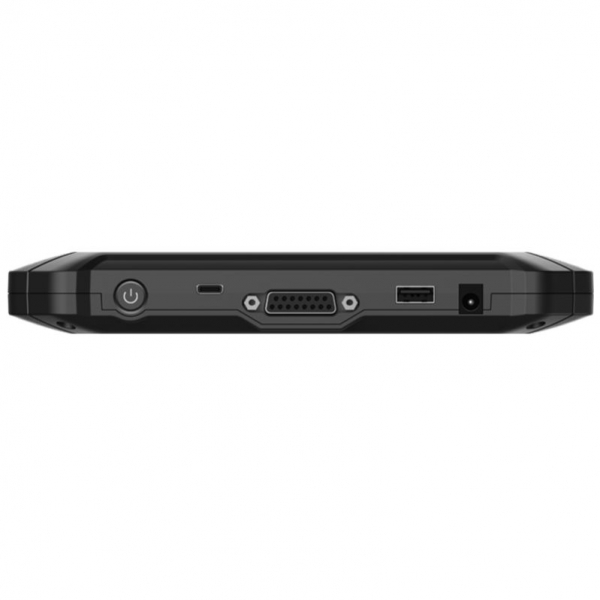

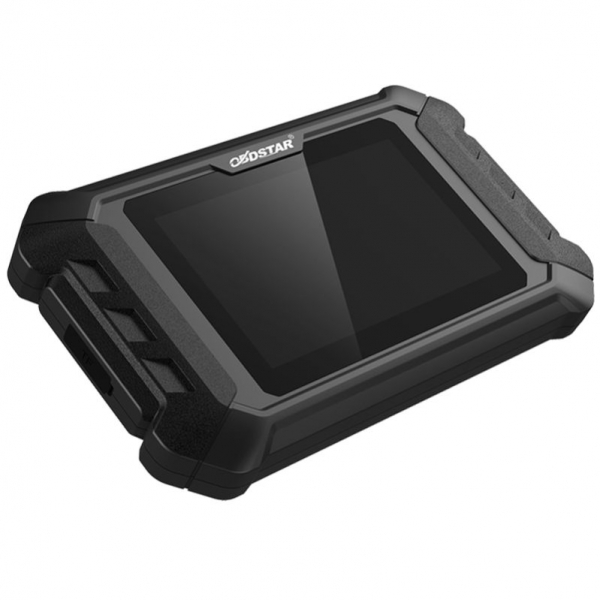

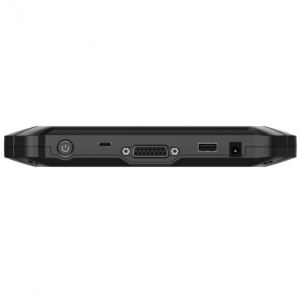

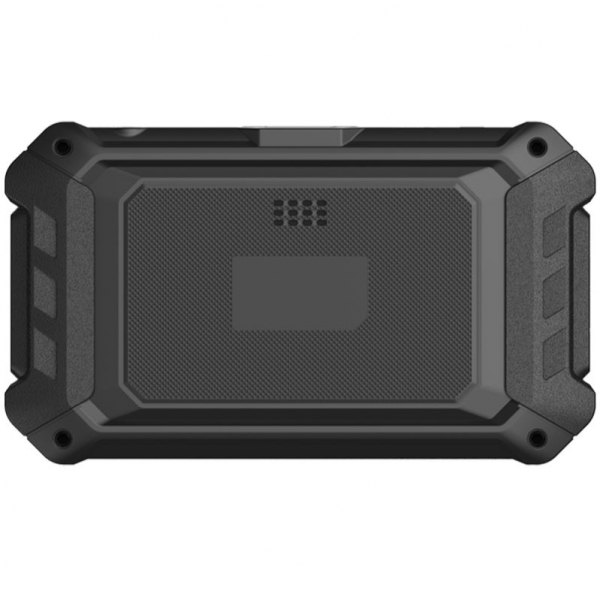

ISCAN SUZUKI is a professional portable diagnostic tool specifically designed for SUZUKI motorcycle diagnostics and key programming. This device operates on the Android 5.1.1 operating system, features a powerful RK3128 quad-core processor, and a 5-inch capacitive touchscreen. Compact in size, convenient to use, and tailored for professional workshop applications, ISCAN ensures fast, accurate, and efficient diagnostics for SUZUKI vehicles.

Functions:

• Android 5.1.1 operating system
• Simple and intuitive menu navigation
• Full diagnostic function package: reading/clearing fault codes, data streams, activation tests, coding, settings
• Free menu item selection for quick access to functions
• Real-time data recording and playback – accurate identification of sensor and component faults
• Wi-Fi connectivity and one-click software update
• Remote support via one-click function – OBDSTAR technician connection
• Fault guidance, support data, technical bulletins, connector locations – for accurate and quick fault detection
• Multiple data display modes: text, waveform, instrument panel simulation
• Automatic system scanning, VIN recognition, control module programming and coding, ECU settings, instrument coding
• TPMS, service light reset, CO adjustment, idle speed adjustment
• A/F value reset, ABS settings, EOL mode, transmission and computer memory reset

Technical specifications:

• Operating system: Android 5.1.1
• Processor: RK3128 quad-core ARM Cortex-A7
• Battery: 2600 mAh rechargeable polymer lithium battery
• Memory: supports 32 GB micro SD (TF) card
• Display: 5.0-inch capacitive touchscreen
• Display resolution: 800 × 480
• Wi-Fi: supported
• Operating temperature: -20℃ ~ 55℃
• Storage temperature: -20℃ ~ 70℃
• Weight: approx. 700 g
• Dimensions: 198 mm × 115 mm × 31 mm

Included accessories for ISCAN SUZUKI:

• M001A – Main cable
• N012A – SUZUKI -6 adapter
• N041 – OBD -6 adapter
• 12V2A – Charger
