ISCAN diagnostic tool for YAMAHA motorcycles OBDSTAR
- SKU: BD70707
- SKU:: ISCAN YAMAHA
599.00 €
Send Message
Inquiry for the Vilnius region
Description

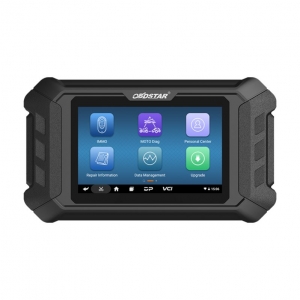

ISCAN Diagnostic Tool for YAMAHA Motorcycles OBDSTAR
Country of origin: China, warranty period – 24 months
ISCAN YAMAHA is a professional portable diagnostic tool specifically designed for YAMAHA motorcycle diagnostics and key programming. This device runs on the Android 5.1.1 operating system, features a powerful RK3128 quad-core processor, and a 5-inch capacitive touchscreen. Compact in size, easy to operate, and built for professional use, ISCAN ensures fast, accurate, and efficient diagnostics for YAMAHA vehicles.
Functions:
- Android 5.1.1 operating system
- Intuitive and easy-to-use menu navigation
- Full diagnostic function package: fault code reading/clearing, data streams, activation tests, coding, settings
- Quick access to functions via freely selectable menu items
- Real-time data recording and playback – accurate sensor and component fault analysis
- Wi-Fi connection with one-click software update
- Remote support via one-click function – OBDSTAR technician connection
- First fault guidance, support data, technical bulletins, and connector locations – for fast and accurate fault detection
- Multiple data display modes: text, waveform, instrument simulation
- Automatic system scanning, VIN recognition, control module programming and coding, ECU settings, instrument coding
- TPMS, service light reset, CO adjustment, idle speed adjustment
- A/F value reset, ABS control unit settings, EOL mode, transmission and computer memory reset
Technical specifications:
- Operating system: Android 5.1.1
- Processor: RK3128 quad-core ARM Cortex-A7
- Battery: 2600 mAh rechargeable polymer lithium battery
- Memory: supports 32 GB micro SD (TF) card
- Display: 5.0-inch capacitive touchscreen
- Display resolution: 800 × 480
- Wi-Fi: supported
- Operating temperature: -20℃ ~ 55℃
- Storage temperature: -20℃ ~ 70℃
- Weight: approx. 700 g
- Dimensions: 198 mm × 115 mm × 31 mm
Included accessories for ISCAN YAMAHA:
- M001A – Main cable
- M002 – Power cable
- M018A – YAMAHA adapter
- N041 – OBD -6 adapter
- 12V2A – Charger
