Laser-Mechanical Wheel/Axle Alignment System for Heavy-Duty Vehicles Haweka AXIS500

Country of origin: Germany, warranty period – 24 months

Haweka AXIS500 is a mobile laser-mechanical wheel and axle alignment system designed for various types of commercial and heavy-duty vehicles. The system allows for quick and reliable full wheel alignment without lifting the vehicle – all measurements are performed directly in the driven position. AXIS500 stands out for its compact design, fast setup, and the ability to be operated by a single person – making it ideal for workshops that prioritize productivity and mobility.

Functions:

• Wheel geometry measurements in the driven position – no need to lift the vehicle.
• Suitable for all types of vehicles – measured using a universal measuring system.
• Data acquisition using an inclinometer – precise geometric angles are displayed instantly.

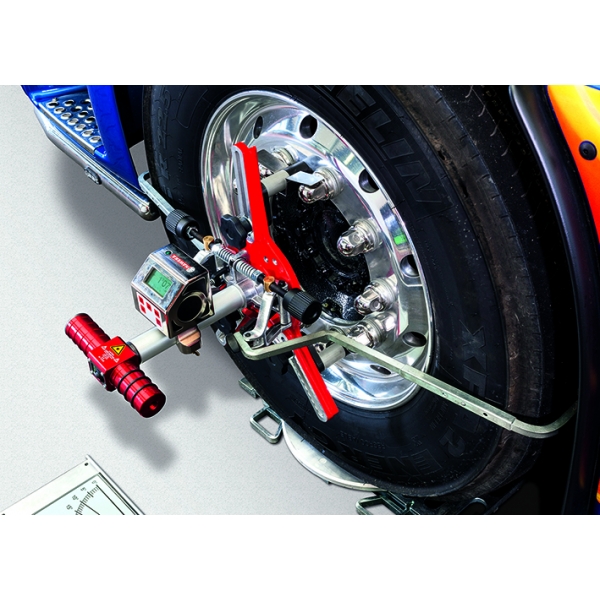

• Easy mounting using magnetic clamps on the rims.
• Quick-clamping adapters for aluminum rims.
• Measuring head with 360° rotation and battery-powered laser technology.
• Fast measurement of all key parameters: toe, camber, caster, KPI, axle offset, differential angles, and steering gear center position.
• Each measurement includes vehicle frame positioning.
• Complete measurement including setup is completed within 15 minutes.
• The entire alignment process can be performed by a single operator.
• Excellent price-performance ratio, ensuring fast return on investment.

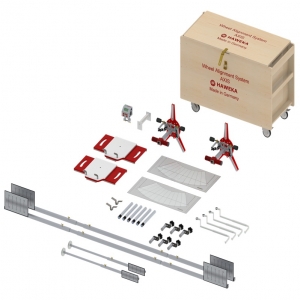

• Delivery includes a mobile, durable case with all necessary equipment and a tripod for the laser head.

Technical Specifications:

• Measurement method: In the driven position
• Inclinometer features:
• Records geometric angles within a few seconds
• Camber is displayed immediately after installation
• Caster and KPI values appear after locking the steering
• Steering lock confirmation is shown via an additional signal
• Laser head: 360° rotatable
• Included: Mobile case, tripod for laser head, all required measurement tools
