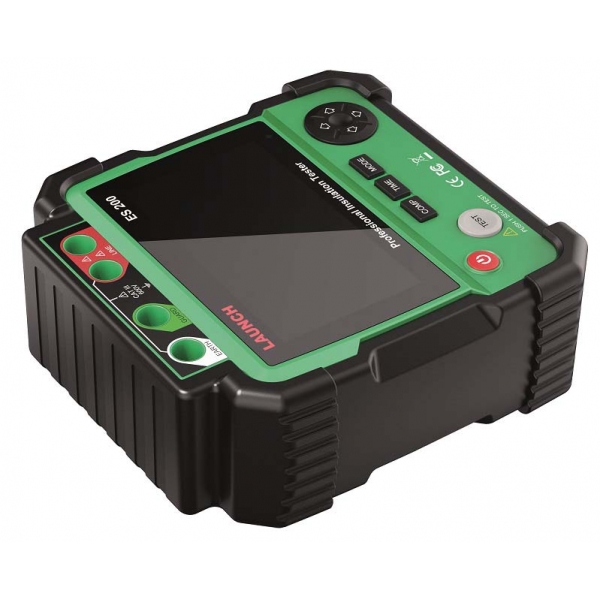

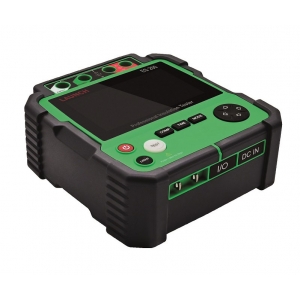

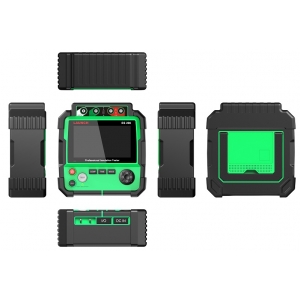

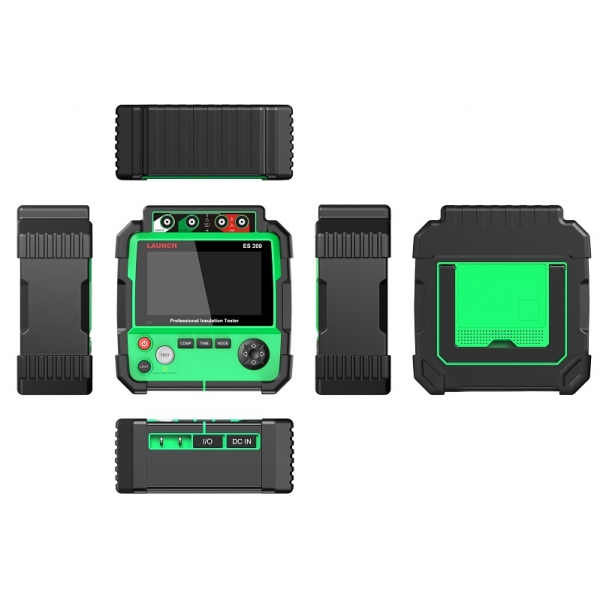

Launch ES200 EV battery insulation resistance indicator

Launch ES200 EV battery insulation resistance indicator

Features:

• The ES 200 can be used to measure the insulation resistance of the HV lines to the vehicle body - for this, each HV line is simply tested against the vehicle body.
• The ES200 can be used as a stand-alone unit or connected to the TAB 3. With the TAB 3 it can be controlled via Bluetooth and a measurement protocol can be saved after the test.
• During the measurement, a very high test voltage is applied, the resulting current flow provides information about the insulation resistance.
• Voltage range between 500-5000V possible - The applied test voltage varies from manufacturer to manufacturer - The test voltage should be at least as high as the operating voltage of the vehicle.
• With its 5-inch colour screen, it is easy to read even in sunlight.
• It is equipped with three measuring modes: Time measurement, comparison and continuous measurement.

Example of a measurement report:

Technical parameters:

• Battery: 3150 mAh
• Screen: 5" inches
• Operating temperature: 0 °C - +50 °C
• Dimensions: 180 x 174 x 65 mm
• Weight: 1.7 kg

DC voltage testing parameters:

• Voltage: 30 - 600 V
• Value range: 1 V
• Testing accuracy: +/- 3%

AC voltage testing parameters:

• Voltage: 30 - 600 V (50 / 60 Hz)
• Value range: 1 V
• Testing accuracy: +/- 3%

Test results parameters:

• Test voltage: 500V | 1000V | 2000V | 5000V
• Measuring ranges: 0MΩ - 20MΩ | 0MΩ - 40GΩ | 0MΩ - 100GΩ | 0MΩ - 1000GΩ
• Open circuit voltage: DC 500V | DC 1000V | DC 2000V | DC 5000V
• Accuracy of measurements:

0MΩ - 99.9MΩ (+/- 3% +5); 100MΩ - 9.99GΩ (+/- 5% +5); 10GΩ - 20GΩ (+/- 10% +5) |

0MΩ - 99.9MΩ (+/- 3% +5); 100MΩ - 9.99GΩ (+/- 5% +5); 10GΩ - 40GΩ (+/- 10% +5) |

0MΩ - 99.9MΩ (+/- 3% +5); 100MΩ - 9.99GΩ (+/- 5% +5); 10GΩ - 100GΩ (+/- 10% +5) |

0MΩ - 99.9MΩ (+/- 3% +5); 100MΩ - 9.99GΩ (+/- 5% +5); 10GΩ - 1000GΩ (+/- 10% +5) |

• Short-circuit current: <3.0 mA
